High-speed Si-Ge avalanche photodiodes

Abstract

High-speed optical interconnects of data centers and high performance computers (HPC) have become the rapid development direction in the field of optical communication owing to the explosive growth of market demand. Currently, optical interconnect systems are moving towards higher capacity and integration. High-sensitivity receivers with avalanche photodiodes (APDs) are paid more attention due to the capability to enhance gain bandwidth. The impact ionization coefficient ratio is one crucial parameter for avalanche photodiode optimization, which significantly affects the excess noise and the gain bandwidth product (GBP). The development of silicon-germanium (Si-Ge) APDs are promising thanks to the low impact ionization coefficient ratio of silicon, the simple structure, and the CMOS compatible process. Separate absorption charge multiplication (SACM) structures are typically adopted in Si-Ge APDs to achieve high bandwidth and low noise. This paper reviews design and optimization in high-speed Si-Ge APDs, including advanced APD structures, APD modeling and APD receivers.

Introduction

The emerging applications in artificial intelligence (AI), internet of things (IoT), cloud computing and storage, and video streaming result in huge demands for data communications, which have been driving the development of 5G communication, hyper-scale data centers, and exascale high performance computers (HPC). Compared to conventional copper based interconnects, optical interconnects possess properties of higher bandwidth and longer transmission distance, alleviating the crowded data traffic. Optical interconnect systems can proceed at the speed of light with multiple optical technologies, such as wavelength division multiplexing (WDM) [1–3] and mode division multiplexing (MDM) [4–7], to meet the requirements in latency and bandwidth. The development trend is towards higher integration for higher bandwidth density and lower cost per gigabit. Silicon photonics is a promising technology that has been widely used for applications in optical communication [8, 9], optical switch [10, 11], optical computing [12, 13], light detection and ranging (LIDAR) [14, 15], optical sensing [16–18], and so on and so forth. Due to the complementary metal-oxide-semiconductor (CMOS) compatible process and the high integration capability, silicon photonics has shown superior performance in aforementioned applications. After decades of development, basic silicon photonic devices, including waveguides, couplers, phase shifters, modulators, and photodiodes, are relatively mature [19–23]. The integration of light sources on silicon was the main challenge due to the indirect bandgap of silicon. Fortunately, heterogeneous bonding and heteroepitaxial technologies are promising to realize laser diodes (LDs) or semiconductor optical amplifiers (SOAs) on silicon [24–30]. As main optical components on silicon can be realized, silicon photonics is moving towards programmable or reconfigurable photonic integrated circuits (PICs) [31–33]. Recent progresses in the monolithic integration of silicon photonics and CMOS circuits show the potential of the silicon based optoelectronic technology [34–36].

Admittedly, the performance of silicon photonic devices still need to be improved. High-performance photonic devices are essential for large-scale PICs. Photodetectors for converting optical signals into electrical signals are important components in many applications. However, silicon photodetectors have low absorption coefficients at wavelengths greater than 1100 nm due to the large bandgap induced transparency. To enable silicon photonics for wide applications in O-band and C-band optical communications, the epitaxial growth of Ge on Si technology overcomes the 4.2% lattice mismatch between Si and Ge, realizing efficient light absorption for photodetection [37–39]. The bandwidth of optical interconnect systems has been doubling every 2-3 years driven by the demand of datacom. The link budget and power budget become harder to satisfy while increasing the bandwidth density in optical interconnects. High-sensitivity receivers are required for further increase in bandwidth [40, 41]. However, conventional p-i-n photodiodes are challenging to meet the demands in an optical interconnect system. Avalanche photodiodes (APDs) with internal gain can significantly increase the receiver sensitivity to relax the bandwidth requirements of optics and electronics as well as link and power budgets [42–45].

The avalanche effect not only results in multiplication gain but also generates excess noise [46, 47]. The benefit of APDs strongly depends on whether they have sufficient gain-bandwidth, which is tied closely to excess noise. The excess noise factor is strongly related to the impact ionization coefficient ratio, k [46]. Therefore, how to design an APD with a low impact ionization coefficient ratio is critical. III-V material based APDs have been investigated for decades [48–51]. Selecting a semiconductor material with favorable impact ionization coefficients is one method to realize high-performance APDs [48, 49]. Another method utilizes impact ionization engineering with desired heterostructures [50, 51]. Despite it is flexible to choose epitaxial materials, high-performance III-V APDs require complex heterostructures and lack the capability to integrate with other photonic devices. Compared to most III-V APDs, Si-Ge APDs have simpler structures and lower excess noise thanks to the extremely low impact ionization coefficient ratio in silicon [52, 53].

Typically, accurate process design kits (PDK) including transistor models are required for integrated circuit (IC) design. Similarly, compact photonic device models are also helpful for large-scale PIC design [54]. Active photonic device models with electrical and optical dynamics can strongly benefit the design of high-speed transceiver circuits [55–65]. Compared to p-i-n photodiode receivers, APD receivers require more complex bias circuits due to the bias-dependent multiplication gain of APDs and the required high bias voltage. An accurate APD model for codesign of optical receivers is necessary [61–65]. As discussed, using APDs can improve the optical receiver sensitivity. In fact, both APD and receiver circuitry contribute to the overall noise of APD receivers, and the APD noise is a function of its multiplication gain. Thus, it is necessary to analyze the APD receiver sensitivity to find out the optimum gain region for operation [40]. This paper will review recent advances in high-speed Si-Ge APDs. The basic principles of APDs will be first described, which is followed by reviewing multiple advanced APD structures. Next, APD equivalent circuit model and the sensitivity analysis for APD receivers will be presented. Finally, the challenges and perspectives of Si-Ge APDs for applications in optical communication will be discussed.

APD fundamental

The internal gain of an APD is obtained through the avalanche process, which is triggered when it is biased beyond the impact ionization threshold. Figure 1 shows the schematic of the avalanche effect occurred in an APD. The APD structure is built by simply adding a p-doping layer in a conventional p+-i-n+ photodiode [66]. The incident light is absorbed in the i-layer where electron-hole pairs are formed. Due to the low electric field in the absorption region, the carriers move to the corresponding electrodes. After these free carriers enter into the multiplication region, the high electric field speeds up their velocities, accumulating sufficient energy to excite more electrons and holes from the valence band into the conduction band. As the avalanche process illustrated in Fig. 1, a creasing number of free carriers are generated in the multiplication region.

Fig. 1

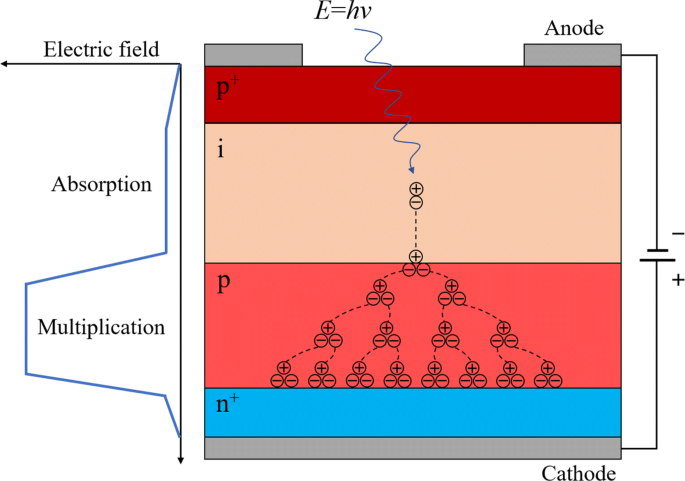

Avalanche photodiode operating principle. The left part is the electric field profile of the APD and the right part is the schematic of the avalanche process

APDs are favored due to their internal gain. However, APDs also generate excess noise along with multiplication gain, contributing to the photocurrent shot noise. The APD excess noise factor is a function of gain which is given by

$$ F(M) = k \cdot M+(1-k)(2-1/M), $$

(1)

where k is the impact ionization coefficient ratio and M is the multiplication gain [46, 47]. The ratio k is determined by k=β/α, where α and β are electron and hole ionization coefficients of the semiconductor material in multiplication region, respectively [45]. In other words, 1/α or 1/β is the average distance of an electron or hole travelling before impact ionization. As one can find out from Eq. 1, the smaller impact ionization coefficient ratio k results in lower excess noise factor F. Figure 2 shows the avalanche process for k=0 (β=0) and k=1 (α= β). The avalanche process for k=1 is a chain-like. If an impact ionization event does not occur, it will result in much larger gain variation than for the case of k=0. Therefore, the resulted excess noise for APDs with k=1 is larger than the ones with k=0. The impact ionization coefficient ratio k also affects APD gain-bandwidth product (GBP) [45]. For k=1, both electrons and holes involve in the avalanche process that two types of carriers travel back and forth across the multiplication region. By contrast, only one transit by electrons is required for k=0, which takes much shorter time to achieve the same gain. The required time for APDs to build up a certain gain is called avalanche buildup time or multiplication time, which is inversely proportional to GBP.

Fig. 2

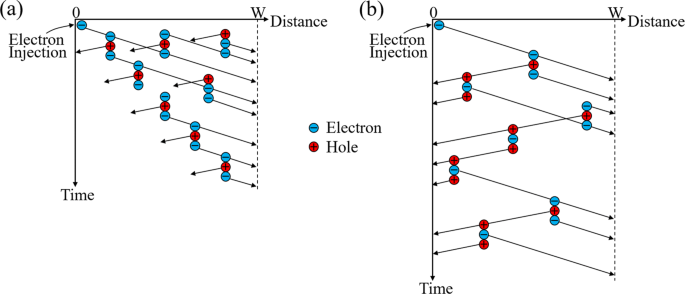

Schematics of the avalanche process for the impact ionization coefficient ratio of ak=0 (β=0) and bk=1 (β= α). k=β/α where α and β are electron and hole ionization coefficients

Equation 1 is derived based on a local-field model that the impact ionization coefficients are in local equilibrium [46]. This model can well describe the avalanche effect and excess noise when the multiplication region is thick. As shown in Fig. 3(a), the ionization probability for carriers in the multiplication region is decreased exponentially with the distance from the injection point. However, the local-field model does not agree with the evidence that the excess noise becomes lower when thinning the multiplication layer to submicron [67, 68]. A non-local effect in the impact ionization process has been proposed to explain the phenomenon [69, 70]. As shown in Fig. 3(b), the carriers entered into the multiplication region are “cool” at the beginning and the ionization occurs only after traveling a certain distance to obtain sufficient energy. The distance d for carriers to reach the ionizing threshold, as shown in Fig. 3(b), is called “dead space” [69, 71]. To take the dead space into account, the probability distribution function (PDF) of the impact ionization are corrected as the lines shown in Fig. 3(b). When the multiplication layer is thin, the electric field needs to be higher than expected to achieve a certain multiplication gain. The width of the PDF is narrower after considering the dead space, resulting in a more deterministic ionization process. Therefore, the excess noise can be lowered by thinning the multiplication layer.

Fig. 3

Probability distribution functions of carrier ionization in a multiplication gain region for a the local field model and b the non-local field model with the dead space for high E-field (solid line) and low E-field (dashed line)

Si-Ge APD

Important performance metrics of APDs include breakdown voltage, dark current, quantum efficiency, multiplication gain, bandwidth, excess noise, and GBP. These APD key parameters typically have design trade-offs. For applications in high-speed optical interconnects, GBP and excess noise appear to be more important in APD design. The studies on monolithically integrated Si-Ge APDs raise great interests on APDs. Metal-semiconductor-metal (MSM), p-i-n, and SACM structures are commonly used for APD design [72–80]. The low bandgap of germanium results in almost the same magnitude of ionization coefficients for electrons and holes [81–84]. The impact ionization coefficient ratio k is close to 1 (k∼ 0.9). By contrast, the impact ionization for electrons and holes in pure silicon are quite asymmetric, yielding a k value close to 0 (k∼ 0.02) [82–84]. To take advantages of high absorption coefficient in germanium and low impact ionization coefficient ratio in silicon, the separate absorption charge multiplication (SACM) structure is often used in Si-Ge APD design, where a low electric field is retained in germanium to keep it below the impact ionization threshold and a high electric field is confined in silicon to trigger the ionization effect [72–74]. This design has shown superior performance in aspects of GBP and excess noise. Also, Si-Ge SACM APDs have been demonstrated with high temperature stability that the bandwidth and the GBP have negligible degradation [85]. Recent advances in high-speed Si-Ge APDs will be discussed below. It is worth noting that some APD structures can be classified into multiple categories.

Vertical SACM APD

Si-Ge APDs are initially designed as discrete normal-incidence (NI) devices for applications in optical-fiber communication [72, 86–89]. Kang et al. proposed a NI Si-Ge APD with a p+-i-p-i-n+ layer structure as shown in Fig. 4(a) and (b) [72]. The layer thicknesses and doping levels of the vertical SACM APD structure can be found in Fig. 4(a). A maximum bandwidth of 11.5 GHz was measured for a 30- μm-diameter device. The bandwidth is limited by RC time constant and carrier transit time, which is similar to a p–i–n photodiode except that an APD depletion region includes depleted germanium absorption as well as silicon charge and multiplication layers. The proposed APD design achieved an effective k of 0.09 and a GBP of 340 GHz thanks to the SACM structure. However, the operating bias voltage beyond 20 V was required to realize a reasonable high gain due to the thick SACM structure. The APD breakdown voltage can be reduced by thinning the SACM structure and optimizing the doping profile. Kim et al. proposed a negative differential resistance (NDR) NI SACM APD with a maximum GBP of 460 GHz as shown in the inset of Fig. 4(c) [88]. A typical I-V characteristic of the device is shown in Fig. 4(c), where the blue line is the difference between the photocurrent (red line) and the dark current (black line). It exhibited a negative photoconductance effect when the reverse bias was increased beyond reaching the maximum photocurrent.

Fig. 4

a Schematic and b SEM cross-sections of the normal incident Si-Ge vertical SACM APD [72]; c Measured I-V characteristics of the negative differential resistance NI Si-Ge SACM APD. Inset is the device schematic cross-section [88]; d Schematic cross-section of the normal incident Si-Ge vertical SACM APD integrated with a MIM capacitor [89]

For APD based receivers, the required high bias voltage of APDs cannot be supplied by trans-impedance amplifier (TIA) ICs directly due to the voltage limit in IC chips [89]. Typically, an APD receiver has to have an individual bypass capacitor to block the high dc bias voltage and filter out the noise from the external power supply. The required large capacitance occupies a large footprint which may not be easily integrated on a receiver IC chip owing to the restricted channel pitch in APD multi-channel applications. As shown in Fig. 4(d), Park et al. proposed a NI Si-Ge SACM APD monolithically integrated with a metal-insulator-metal (MIM) bypass capacitor [89]. The bypass capacitor was fabricated by depositing 100 nm-thick silicon nitride between copper and aluminium to realize a capacitance value of 100 pF. The responsivity of 0.21 A/W at unit gain, the bandwidth of ∼20 GHz, and the GBP of 150 GHz were exhibited at 1310 nm.

Resonant SACM APD

In order to further improve the GBP, NI SACM APDs using resonant effect have been demonstrated [73, 90, 91]. Zaoui et al. proposed a resonant NI SACM APD with an ultra-high GBP of 845 GHz [73]. The schematic of the resonant APD is shown in Fig. 5(a). By designing the avalanche region properly, the real part and the imaginary part of the APD impedance have a peak and a null at a certain frequency, respectively, as shown in Fig. 5(b). The inset in Fig. 5(b) is the equivalent circuit model of the avalanche region extracted from the curve fit of the impedance measurement [90, 91]. The resonance between the inductor and the capacitor results in a peak enhancement in the device frequency response at the high frequency range, as shown in Fig. 5(c). Figure 5(d) shows the measured GBP of the APD under different input powers. The measured highest GBP was 845 GHz at -30 dBm input optical power, corresponding to a gain of 65 and a bandwidth of 13 GHz. Although an extremely high GBP was achieved, the maximum bandwidth of the APD was still less than 20 GHz as shown in Fig. 5(c) and (d). It is well known that NI photodiodes have design trade-offs between responsivity and bandwidth. A thick germanium layer is typically grown on silicon and processed with a large surface area for sufficient light absorption, resulting in larger RC time contant and longer carrier transit time. Such trade-off can be addressed by design of waveguide coupled photodiodes to decouple light absorption and carrier collection.

Fig. 5

a Schematic cross-section of the resonant normal incident Si-Ge SACM APD [90]; b Measured APD RF impedance. The top is the real part and the bottom is the imaginary part. Inset is the equivalent circuit of the device avalanche region [91]; c Measured frequency response at different bias voltages under -20 dBm input optical power [73]; d Measured GBP versus gain under -20 dBm, -26 dBm and -30 dBm input optical powers [73]

Waveguide APD

Waveguide-coupled Si-Ge APDs have been demonstrated with excellent performance in terms of bandwidth, dark current and noise [74, 92–99]. The major advantage of waveguide APDs over NI APDs is that the light propagation and carrier collection paths are orthogonal to each other. More importantly, waveguide APDs are more suitable for large-scale PICs, which the incident light in silicon waveguide is evanescently coupled into germanium for absorption. Light evanescent coupling schemes for waveguide photodiodes include top-to-down, down-to-top, side-coupling, and Butt-coupling, where the down-to-top coupling is the most common one for waveguide-coupled APDs owing to the CMOS compatible process and the simple structure. Huang et al. from Hewlett Packard Labs proposed a waveguide Si-Ge APD adopting down-to-top coupling scheme [94]. The detailed SACM structure can be found in Fig. 6(a). Unlike the p+-i-p-i-n+ SACM structure proposed in Fig. 4(a), here a p+-p-i-n+ structure with thinner layer thicknesses was designed to reduce the breakdown voltage as well as achieve high bandwidth and low noise. Figure 6(b) illustrates the electric field distribution of the waveguide Si-Ge APD at a bias voltage near the breakdown. It is clear to see that a high electric field is confined in the silicon multiplication layer. A measured maximum bandwidth of 25 GHz and a GBP of 276 GHz were demonstrated by optimizing the SACM structure. Huang et al. from SiFotonics demonstrated a waveguide SACM APD with an ultra-high bandwidth of 56 GHz at a gain of 1.8 and a bandwidth of 36 GHz at a gain of 10, as shown in Fig. 6(c) and (d), achieving promising performance of waveguide-coupled APDs as well [95]. Huang et al. from Intel proposed a recess-type waveguide-coupled SACM APD, as shown in Fig. 6(d) [99]. The silicon recess design minimized the step height between silicon waveguide and germanium absorption layers, which realized higher evanescent coupling efficiency and better mode confinement. A GBP of 260 GHz and a breakdown voltage of 16.5 V were exhibited.

Fig. 6

a Schematic and b electric field distribution of the waveguide-coupled low-voltage Si-Ge SACM APD [94]; c Schematic cross-section of the 56 GHz waveguide-coupled Si-Ge SACM APD [95]; d Schematic cross-section of the recess-type waveguide integrated Si-Ge SACM APD [99]

APD with a reflector

The responsivity of a waveguide APD can be impacted by the epitaxial germanium thickness, the absorption length, and the evanescent coupling efficiency. The parasitic capacitance dominated by the germanium absorption and silicon multiplication area limits the APD bandwidth if the carrier transit time is negligible. In order to improve the responsivity bandwidth product, Wang et al. proposed a Si-Ge APD with a distributed Bragg reflector (DBR) as shown in Fig. 7(a) [100]. The waveguide length can be shorten with the help of DBR that the incident light is not absorbed when propagating in the waveguide will be reflected back for the second absorption. As shown in Fig. 7(b), a few number of pairs for DBR design realized a reflectivity of higher than 90%, and the inset of Fig. 7(b) indicated that the DBR design had a wide optical bandwidth. As a result, the APD quantum efficiency was improved from 60% to 90% with the assistance of DBR and the electrical bandwidth had no degradation compared to APDs without a DBR. It is worth to mention that the parameters of the DBR, such as period, fill factor, and number of pairs, have to be carefully designed to achieve high-sufficient reflectivity and meet fabrication requirements simultaneously. To relax the DBR fabrication tolerance, other types of reflectors, such as loop reflectors, are alternatives. As shown in Fig. 7(c), Yuan et al. proposed a Si-Ge waveguide APD integrated with a loop reflector at the end [101]. The loop reflector exhibited even wider optical bandwidth than DBRs, as the reflectivity spectrum shown in Fig. 7(d). Such design also improved the responsivity by around 50% without electrical bandwidth degradation. However, the size of the APD with a loop reflector is relatively large because of the need for long taper and big loop radius to achieve low light propagation loss.

Fig. 7

a Schematic of the waveguide-coupled low-voltage Si-Ge vertical SACM APD integrated with a distributed Bragg reflector and b Reflectivity versus number of period for two DBR designs. Inset is the reflectivity spectra for the two types of DBRs with 2, 4, and 6 periods, respectively [100]; c Schematic of the waveguide-coupled low-voltage Si-Ge vertical SACM APD integrated with a loop reflector and d Reflectivity spectrum of the loop reflector [101]

Low-voltage APD

Due to the low-voltage power-rail requirements in HPC applications, Si-Ge APDs with low breakdown voltage have attracted researchers’ interest [102–104]. Unlike the APD designs with high breakdown voltages at around 20 V or beyond discussed in [72, 86–88], APDs with the thin SACM structure and the optimum doping profile, as shown in Figs. 6(a, b) and 7(a, c), can achieve a breakdown voltage as low as 10 V [94, 100, 101]. For typical SACM APDs, the required bias voltage is the sum of the voltage drops in the absorption and multiplication regions because the germanium absorption and silicon multiplication regions are in series, as shown in Fig. 8(a). Design of a SACM APD with the absorption and multiplication regions in parallel can further reduce the APD bias voltage, as the simplified schematic illustrated in Fig. 8(b). Zeng et al. proposed a three-terminal Si-Ge APD with an ultra-low breakdown voltage (Fig. 8(c)) [105]. Unlike two-terminal design, three-terminal APDs can realize independent electric controls on charge and multiplication layers by two separate voltage drops. This design not only reduces the APD breakdown voltage but also relax the fabrication tolerance on the doping profile. The electric field of the proposed design is illustrated in Fig. 8(d). The high electric field confined in the finger gap was the intrinsic silicon region for multiplication. The three-terminal Si-Ge APD with a breakdown voltage of 6 V and a GBP over 280 GHz was demonstrated. Also, the design allows to use the standard CMOS process and no additional silicon epitaxial growths are required.

Fig. 8

Simplified schematics of a two-termimal and b three-terminal Si-Ge APDs; c Schematic and d electric field distribution of the three-terminal waveguide-coupled Si-Ge SACM APD [105]

Lateral SACM APD

Aforementioned Si-Ge APDs adopt vertical SACM structure, which requires to epitaxially grow an additional silicon charge layer. In order to reduce the device fabrication complexity, lateral SACM APDs have been demonstrated, in which the charge and multiplication regions are on one silicon layer [106–109]. Martinez et al. proposed a lateral SACM APD with a breakdown voltage of more than 30 V and a GBP of 432 GHz as shown in Fig. 9(a) and (b). The device symmetry, including contacts, is important for field configuration considerations, which raises requirements of fabrication tolerance to achieve device performance consistence. The p-charge layer was designed to have different overlaps relative to the germanium sidewall. The higher gain in the no-overlap device was observed due to the realized higher electric field in germanium. In addition, the multiplication width was also studied with variations from 200 nm to 1000 nm. The larger bandwidth was observed with narrower multiplication width because of the less carrier transit time. More specifically, lateral SACM APDs can be designed with contacts on silicon only that the process for contact doping on germanium is not necessary [108, 109]. Srinivasan et al. demonstrated a lateral SACM APD with a gain of 11 and a bandwidth of 27 GHz at -12 V, as shown in Fig. 9(c) [108, 109]. The device was optimized to form a high electric field in the silicon multiplication region as shown in Fig. 9(d). This design has no needs to retain the device symmetry, relaxing the fabrication tolerance. However, it requires smaller linewidths in processes, such as the narrow width of the silicon charge region. Two designs with a nominal multiplication region width of 200 nm and a doping level of around 10¹⁸ cm ⁻³ but different charge region widths of 50 nm and 100 nm were investigated. The experimental results exhibited a trade-off between bandwidth and dark current.

Fig. 9

a Schematic cross-section and b SEM image of the waveguide-coupled Si-Ge lateral SACM APD with p-contact on germanium [107]; c Schematic cross-section and d electric field distribution of the waveguide-coupled Si-Ge lateral SACM APD with contacts on silicon [109]

Germanium APD

In general, germanium APDs can achieve lower breakdown voltage than Si-Ge APDs, because the required electric field to trigger the impact ionization in germanium is lower than that of silicon [110, 111]. Ge APDs with low breakdown voltages have been demonstrated in recent years [112–115]. Virot et al. demonstrated a waveguide-coupled Ge APD with a breakdown voltage of 7 V [112]. The schematic and the SEM image of the Ge APD are shown in Fig. 10(a) and (b). As mentioned before, electrons and holes have quite similar impact ionization coefficients in germanium. The excess noise factor of a Ge APD should be high because both absorption and multiplication take place in germanium. In [112], a narrow width multiplication region of 500 nm was chosen to enhance the large dead space effect, contributing to a remarkable reduction of the excess noise factor. A GBP of 193 GHz and an effective k value of 0.4 were achieved. More specifically, Chen et al. demonstrated a sub 5 V waveguide-coupled Ge APD with a GBP of 140 GHz and an effective k value of 0.2, as shown in Fig. 10(c) [113]. Ge APDs with various germanium layer thicknesses were investigated in [113]. As one can see in Fig. 10(d), the thinner germanium layer has higher electric field near the interface of Ge/Si. In [113], a 185 nm thin germanium layer was adopted for the low operating voltage where the electric field dropped sharply away from the Ge/Si interface. This design greatly suppressed the avalanche excess noise due to the limited thickness of the multiplication region. The demonstrated effective k value was much lower than the k in germanium since the avalanche effect occurred in both germanium and silicon near their interface as shown in Fig. 10(d).

Fig. 10

a Schematic and b SEM image of the lateral p-i-n diode based Ge APD integrated in a silicon waveguide [112]; c Schematic cross-section and d electric field distribution profile of the waveguide-coupled Ge APD [113]

p-i-n APD

SACM APDs can realize high GBP and low excess noise but require accurate control of the doping profile in SACM structure, including layer thicknesses (or silicon charge and multiplication widths for lateral SACM APDs) and doping levels. By contrast, lateral p-i-n APDs with double heterojunctions are an alternative for APD design [79, 80, 116]. Zhang et al. proposed an APD with a lateral p-i-n junction, as shown in Fig. 11(a), exhibiting a maximum responsivity of 15.2 A/W at 16x avalanche gain and a bandwidth of 33 GHz [79]. As shown in Fig. 11(b), a strong electric field was generated in germanium by optimizing the silicon p-i-n junction with a p/n doping level of 10¹⁸ cm ⁻³ and a 500 nm intrinsic silicon width. The impact ionization coefficient in germanium should have an order of magnitude higher than in silicon at the electric field of 0.2–0.4 MV/cm (Fig. 11(b)) [110, 111]. However, an effective k value as low as 0.2 was achieved, thanks to the dead space effect and the high electric field near the Si-Ge boundary [69, 71]. In addition, Benedikovic et al. proposed a heterostructure APD based on a lateral p-i-n structure as well, as illustrated in Fig. 11(c) [80]. Due to the simple APD scheme, photonic devices other than photodetectors, such as modulators, can be simultaneously fabricated. The APD exhibited a multiplication gain of 120, a GBP of 210 GHz, and an effective k of 0.25 without complex epitaxial structures and multiple ion implantation schemes. The study of the APD multiplication gain versus the bias voltage under different input powers indicates that the multiplication gain increases with the decrease of the input optical power. The phenomenon also occurs in other types of APDs. The high input optical power results in a stronger space charge effect which hinders the impact ionization process. To study the effect of germanium geometry on device performance, Benedikovic et al. investigated a lateral p-i-n APD with various germanium widths and lengths, as shown in Fig. 11(d) [116]. High GBP up to 480 GHz and low k value down to 0.15 were achieved for APD with 0.3 μm width of germanium.

Fig. 11

a Schematic and b electric field distribution of the lateral p-i-n APD with double heterojunctions [79]; c Schematic cross section of the waveguide-coupled Si-Ge p-i-n APD. Insets are cross-sectional views of the p-i-n device and the injection waveguide [80]; d Schematic of the p-i-n APD with lateral p-i-n heterojunctions, optical mode profiles of p-i-n APDs with various germanium widths, and light propagation through p-i-n APDs with various germanium lengths [116]

APD receivers

Performance metrics of state-of-the-art Si–Ge APDs discussed previously are summarized in order in Table 1. After converting an optical signal to an electrical signal by an APD, a following receiver circuitry is necessary to amplify, reshape, and process the electrical signal. Compared to a p-i-n photodiode, an APD require a more complex receiver due to the high bias voltage and various gains as a function of the bias voltage. An accurate APD model is beneficial to design a hign-speed APD receiver [61–65]. Particularly, the performance of a TIA, such as bandwidth and input referred noise, is significantly affected by APDs. Wang et al. proposed an APD equivalent circuit model, including the effects of carrier transit time, avalanche buildup time and electrical parasitics, as shown in Fig. 12(a) [61]. This model can capture both electrical and optical dynamics over a wide range of multiplication gain. The space charge effect occurred at high gain region is described as a resistor R_a and an inductor L_a in series as shown at the absorption and avalanche region of the electrical parasitics in Fig. 12(a). $\omega _{RC}=\frac {1}{R_{t}C_{t}}$ and $Q=\frac {1}{R_{t}}\sqrt {\frac {L_{t}}{C_{t}}}$ in the RLC transfer function is related to bandwidth and damping. The buildup function describes the avalanche buildup process which limits the APD GBP, where τ_m is the avalanche buildup time, M is the multiplication gain, and τ_m=1/(2π×GBP) [117–119]. Model parameters need to be set as a function of bias voltage or multiplication gain for the availability over a wide range of gain. These parameters can be extracted by curve fitting small-signal and impulse response characteristics, as shown in Fig. 12(b) and (c).

Fig. 12

a Si-Ge APD equivalent circuit model including the effects of carrier transit time and avalanche buildup time as well as electrical parasitics [61]; Measured and curve fitted b small signal and c impulse responses at various multiplication gains (or bias voltages) [40]

Table 1 Performance metrics of state-of-the-art Si–Ge avalanche photodiode receivers

The main purpose of using APDs is to improve the receiver sensitivity. Hence, the APD receiver sensitivity analysis is necessary to design an APD for required system performance [40, 101, 109]. Generally, the bit error rate (BER) or Q-factor at a data rate is used to measure the performance of a transceiver, which can also be described as signal-to-noise ratio (SNR). The direct detection technology will be taken as an example to discuss below. The quality of a signal, i.e. Q-factor, is given by

$$ Q = \frac{OMA \cdot R \cdot M}{\sigma_{1}+\sigma_{0}} $$

(2)

where OMA is the effective optical modulation amplitude (OMA), R is the APD responsivity at unity gain, M is the APD multiplication gain, σ₁ and σ₀ are the receiver noise on level “1” and “0” [40]. The effective difference of two signal levels, OMA, is the eye height of a noiseless eye diagram at the receiver, which needs to count the eye degradation due to the intersymbol interference (ISI) [120, 121]. The bandwidth, the deterministic jitter, and the nonlinear effect in a transceiver system contribute to the ISI. Here, the receiver sensitivity is analyzed using pulse amplitude modulation with two levels (PAM-2 or OOK) format for simplicity, which is also valid for advanced PAM-n (n >2) modulation.

The total noise of an APD receiver on each signal level mainly consists of the laser relative intensity noise, the shot noise of photocurrent and dark current, and the TIA input referred noise, as described by

$$ \sigma_{total} = \sqrt{\sigma^{2}_{RIN}+\sigma^{2}_{shot}+\sigma^{2}_{TIA}} $$

(3)

where

$$ \sigma^{2}_{RIN} = M^{2} \cdot I^{2}_{photo} \cdot RIN \cdot BW $$

(4)

$$ \sigma^{2}_{shot} = F \cdot M^{2} \cdot 2q(I_{photo}+I_{dark}) \cdot BW $$

(5)

Here, M is the APD multiplication gain, I_photo is the photocurrent at unity gain, I_dark is the dark current at unity gain, RIN is the laser relative intensity noise, BW is the APD receiver bandwidth, and F is the APD excess noise factor [40]. The TIA input referred noise depends on the type of TIAs, which can refer to a TIA model [122].

Huang et al. demonstrated a waveguide-coupled Si-Ge vertical SACM APD integrated with a CMOS receiver circuit at 25 Gb/s whose prototype is shown in Fig. 13(a) [94]. The BER curves at different gains as well as the simulated and measured sensitivity data in Fig. 13 indicated that the APD receiver indeed improved the receiver sensitivity, thanks to the APD internal gain. The extracted k value was between 0.05 and 0.1. The optimum sensitivity was achieved around multiplication gain of 10. Additionally, Srinivasan et al. demonstrated a waveguide-coupled Si-Ge lateral SACM APD integrated with a BiCMOS receiver circuit at 56 Gb/s [109]. The APD receiver prototype and the BER and sensitivity results are shown in Fig. 14. The extracted k value was around 0.25. The high-speed APD receiver sensitivity analysis in [40, 94, 101, 109] concludes that the optimum sensitivity is realized at a multiplication gain range of 10-20 and the optimum gain depends on noise levels and data rates.

Fig. 13

a Prototype of the APD CMOS receiver; Measured BER curves at b 12.5 Gb/s and c 25 Gb/s; d Receiver sensitivity analysis at 12.5 Gb/s [94]

Fig. 14

a Prototype of the APD BiCMOS receiver; b Measured BER data and extracted k value; Receiver sensitivity analysis at c 25 Gb/s and d 50 Gb/s [109]

Conclusion

APD receivers with higher sensitivity are essential with the development of optical interconnect technologies towards higher bandwidth, higher integration, lower power consumption and lower cost. Si-Ge APDs with internal gain and low noise can greatly relax the requirements in link budget and power budget to realize higher bandwidth density. Important performance metrics for APD design include breakdown voltage, dark current, quantum efficiency, multiplication gain, bandwidth, excess noise, and GBP. Designing an APD with a low effective impact ionization coefficient ratio k is critical to realize high GBP and low noise. However, some design trade-offs may exist, which requires device optimization for different applications. How to break these trade-offs is one direction for future APD performance improvement. Si-Ge APD schemes can be optimized to trigger the impact ionization effect occurred in silicon more than that in germanium. The thickness of silicon or germanium can be thinned to increase the dead space effect, thereby reducing the k value. The consequent decreased responsivity or multiplication gain can be compensated by other methods, such as adding a reflector. The APD design also needs to consider the complexity and tolerance in device fabrication. Compared to vertical SACM APDs, APDs with lateral SACM or p-i-n structure can benefit from the less fabrication complexity but may require device processes with smaller linewidths. The overall noise sources have to be considered for optimizing APD receiver sensitivity. Design an APD with extremely high gain is not necessary for applications in high-speed optical interconnects since the optimum sensitivity for an APD receiver is achieved with a multiplication gain less than 20 in most cases.
