Multi-vortex laser enabling spatial and temporal encoding

Abstract

Optical vortex is a promising candidate for capacity scaling in next-generation optical communications. The generation of multi-vortex beams is of great importance for vortex-based optical communications. Traditional approaches for generating multi-vortex beams are passive, unscalable and cumbersome. Here, we propose and demonstrate a multi-vortex laser, an active approach for creating multi-vortex beams directly at the source. By printing a specially-designed concentric-rings pattern on the cavity mirror, multi-vortex beams are generated directly from the laser. Spatially, the generated multi-vortex beams are decomposable and coaxial. Temporally, the multi-vortex beams can be simultaneously self-mode-locked, and each vortex component carries pulses with GHz-level repetition rate. Utilizing these distinct spatial-temporal characteristics, we demonstrate that the multi-vortex laser can be spatially and temporally encoded for data transmission, showing the potential of the developed multi-vortex laser in optical communications. The demonstrations may open up new perspectives for diverse applications enabled by the multi-vortex laser.

Introduction

Optical vortices, having distinct features of helical phase front and doughnut intensity profile, have attracted increasing interests in a variety of applications such as optical manipulation, trapping, tweezers, microscopy, imaging, metrology, nonlinear interactions, astronomy, and quantum science in the past decades [1,2,3,4,5,6,7,8,9,10]. Recently, optical vortices, which provide in principle unlimited number of orbital angular momentum (OAM) quantum states [11], are used as powerful tools in the emerging application of optical communications [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29]. By applying multiple vortex beams with various topological charges, the communication capacity will be further increased beyond the traditional well-established physical dimensions such as wavelength and polarization [15, 16, 25, 26]. Moreover, vortex-based data transmission can also potentially enhance the communication security [12, 22]. Contributed by these advantages, optical vortex becomes a promising candidate for capacity scaling in next-generation optical communications.

The generation of multi-vortex beams is the prerequisite of vortex-enabled optical communications. Up to now, due to lack of a multi-vortex laser source, it has always been relying on spatially modulating Gaussian beams through multiple spatial phase elements, such as spatial light modulators (SLM) [30] and spiral phase plates (SPP) [31], to generate multi-vortex beams for data transmission. In this way, additional cumbersome beam splitters are always used for combing multiple vortex beams together, resulting in an unscalable and bulky communication system. Although the superposition of multi-vortex beams can be created with a single SLM by loading a specific complex phase pattern [32, 33], the quality of the generated superimposed vortex beams is relatively poor due to the limited resolution of the commercially available SLMs, especially for high-order OAM-carrying optical vortices with fine spatial structures. Therefore, traditional techniques of generating multi-vortex beams limit the applications of high-order vortex-based optical communications. Meanwhile, most of the previous demonstrations on multi-vortex beams are based on passive techniques. In this scenario, it is worthwhile developing novel active techniques of creating multi-vortex beams directly at the source.

Because Laguerre-Gaussian (LG) vortex beams are eigen transverse modes of laser oscillation in cavity, vortex beams can be generated directly from laser. In principle, the vortex beams generated from laser possess pure spiral phases and are stable for transmission. Such high-quality beam generation will benefit high-performance vortex-based data transmission, e.g. in the aspect of long-distance transmission. However, attempts have always been made to generate vortex beams with only single topological charge [34,35,36,37,38]. Different from single vortex generation, generation of multi-vortex beams from laser requires finely controlling of transverse modes in sub-mode scale and breaking the competitions among transverse modes, which has not been realized so far. Therefore, it is quite a challenge to generate multi-vortex beams directly from laser.

In this article, we present creation of multi-vortex beams at the laser source by printing a specially-designed concentric-rings pattern on cavity mirror. In theory, we propose multi-vortex oscillation threshold minimum analyzing (MOTMA) method to design the pattern printed on cavity mirror that supports multi-vortex beams generation. In the experiment, a concentric-rings pattern designed using MOTMA method is printed on the surface of laser output coupler (OC), and multi-vortex beams with various topological charges are simultaneously generated from laser. Spatially, the generated multi-vortex beams are decomposable and coaxial. Temporally, the multi-vortex beams can be simultaneously self-mode-locked, and each vortex component carries pulses with GHz-level repetition rate. Applying these unique spatial-temporal characteristics, we demonstrate that the multi-vortex laser can be spatially and temporally encoded for data transmission, which shows the potential of the developed multi-vortex laser to be applied in optical communications.

Results

Concept and principle

The concept and principle of multi-vortex beams generation from laser for spatial and temporal encoding is schematically illustrated in Fig. 1. Determined by the intensity distribution of LG0l vortex beam (l is the topological charge), the bright ring radius of optical vortex increases with the topological charge number l. Therefore, multi-vortex beams that are spatially separated can be concentrically constructed by finely controlling transverse modes. By spatially separating different vortex modes in gain medium, gain competitions among the vortex modes are avoided, thus multi-vortex beams can steadily oscillate and output from laser. Moreover, each vortex component can carry high-repetition pulses through self-mode locking operation of the multi-vortex laser. By applying the unique spatial and temporal dimensions provided by the multi-vortex laser, spatial and temporal encoding can be performed. On one hand, spatial encoding can be achieved by arbitrarily combining the vortex components as spatial codes. On the other hand, temporal encoding can be achieved by modulating the mode-locked pulses as temporal codes. Both spatial and temporal encoding can be applied for data transmission.

Fig. 1
figure1

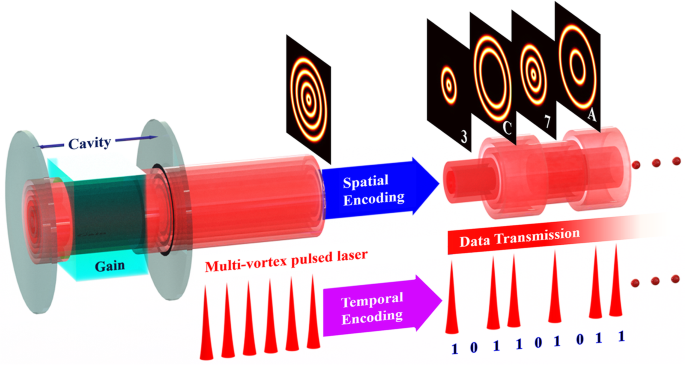

Concept and principle. Multi-vortex pulsed beams are generated directly from the laser. Spatial encoding is achieved by combining specific components of the vortex beams, and temporal encoding is achieved by modulating the pulses. Both spatial and temporal encoding are used for data transmission

Design of multi-vortex laser

For generating multi-vortex beams, an end-pumped laser with a cylindrically symmetric cavity structure is designed, as schematically illustrated in Fig. 2a. The laser cavity is composed of a concave mirror M1 and a plano-plano output coupler (OC) with a gain crystal. The pumping light emitted from a laser diode (LD) is collimated by lens L1, focused by lens L2, and then is incident into the gain crystal. In particular, for constructing multi-vortex beams to oscillate, we propose to design a specific pattern and print it on the surface of OC to form loss modulations. In order to obtain the pattern that supports the generation of multi-vortex beams with specific topological charges, multi-vortex oscillation threshold minimum analyzing (MOTMA) method is proposed. In laser, those vortices having oscillation threshold minima will be selected to oscillate, thus we only need to find a pattern for providing loss modulations so that the objective vortices have the oscillation threshold minima. It is assumed that the pattern is composed of a solid circle in the center and multiple concentric rings (Fig. 2c). When the center of this concentric-rings pattern is positioned on the laser axis, loss modulations will be introduced and it will form multiple ring-shaped laser passes in the unprinted region which match with the objective multi-vortex beams. The concentric-rings pattern can be completely described by the radius of the central circle r0, the inside radius of the i-th ring ri1, the outside radius of the i-th ring ri2, and the number of the rings n.

Fig. 2
figure2

Design of multi-vortex laser. a Schematic setup of the multi-vortex laser. LD: laser diode; L1 and L2: two round lenses; M1: concave mirror; OC: output coupler, which is printed with a concentric-rings pattern on the surface. b Threshold pump power of optical vortex oscillation versus the topological charge number l. parameters: r0 = 25 μm, r11 = 200 μm, r12 = 300 μm, r21 = 500 μm, r22 = 600 μm, r31 = 800 μm, r32 = 900 μm, r41 = 1100 μm, r42 = 1200 μm; curvature radius of M1 is -100 mm; cavity length is 4.5 cm; transmittance of OC is 2%; μ = 10.95; reflectivity of concave mirror M1 is 99.97%; and the intrinsic loss of gain medium L0 is 0.012. c Captured image of the concentric-rings pattern printed on OC with parameters in b. d Microscopy image of the framed region in c. Scale bars in c and d present 400 μm and 100 μm, respectively

As an example, we consider the generation of four vortex beams with topological charges of l = 1, l = 18, l = 58, and l = 118, and the oscillation pump thresholds of these four vortex beams should be the minima. Based on such consideration, the oscillation pump threshold versus the topological charge number l of LG0l vortex mode is calculated by taking a specific concentric-rings pattern printed on OC into account (For details refer to Methods and Supplementary Information Section 1). As shown in Fig. 2b, it presents four minima at l = 1, l = 18, l = 58 and l = 118. In this case, parameters of the concentric-rings pattern are designed to be r0 = 25 μm, r11 = 200 μm, r12 = 300 μm, r21 = 500 μm, r22 = 600 μm, r31 = 800 μm, r32 = 900 μm, r41 = 1100 μm, r42 = 1200 μm, and the concentric-rings pattern is depicted in Fig. 2c. In fact, because the four vortex beams are spatially separated and there are no gain competitions among the vortex beams, these four optical vortex beams will be selected to simultaneously oscillate and output from the laser when the pump power is above all the four threshold minima. With MOTMA method, quantitative relationship between the concentric-rings pattern and the topological charge numbers of the multi-vortex beams can be obtained. Therefore, multi-vortex beams with specific topological charges can be controllably generated from the laser by specially designing the concentric-rings pattern printed on OC with MOTMA method. This method for multi-vortex beams generation is reliable and versatile.

Experiment of multi-vortex generation

In the experiment, a multi-vortex laser with a Nd: YVO4 crystal as the gain medium is built as designed in Fig. 2a (For details refer to Methods). The pump beam has a near Gaussian intensity distribution (inset of Fig. 3k). For generating multi-vortex beams, a concentric-rings pattern with r0 = 25 μm, r11 = 200 μm, r12 = 300 μm, r21 = 500 μm, r22 = 600 μm, r31 = 800 μm, r32 = 900 μm, r41 = 1100 μm and r42 = 1200 μm is printed on the surface of OC, which is shown in Fig. 2c (These parameters are the same as those designed). We adjust the center of the concentric-rings pattern to the cavity axis. As expected, multi-vortex beams are simultaneously generated from the laser. The measured intensity profile of the generated multi-vortex beams is shown in Fig. 3a, which is recorded by a CCD camera. It presents four typical doughnut shapes distributed concentrically. The measured intensity profiles of the four vortex components are shown in Fig. 3b-e, respectively. The topological charges of the generated multi-vortex beams are measured by converting the LG0l vortex modes into the corresponding HG0l modes using a cylindrical lens mode converter [39, 40]. The nodal lines number in the HG0l mode profile is equal to the topological charge number of the vortex. In the experiment, apertures are used to separately select the multi-vortex components to pass through the cylindrical lens mode converter, and Hermite-Gaussian (HG) beams converted from the multi-vortex components are obtained as shown in Fig. 3g-j. By counting the nodal lines of the HG beams, the topological charges of the generated multi-vortex beams are measured to be l = 1, l = 18, l = 58, and l = 118, respectively. The topological charges of the generated multi-vortex beams are perfectly consistent with the theoretical design results obtained with MOTMA method. Therefore, it further presents the reliability of the MOTMA method. The output powers of discrete vortex beams versus the incident pump power are shown in Fig. 3k. The measured threshold pump powers of the discrete vortex beams are 4.0 W, 3.7 W, 4.8 W and 8.0 W for LG01, LG0,18, LG0,58, and LG0,118 vortices, respectively, which are in good agreement with the calculated threshold pump powers of 3.8 W, 3.1 W, 4.2 W and 7.4 W for LG01, LG0,18, LG0,58, and LG0,118 vortices shown in Fig. 2b (Details refer to Methods and Supplementary Information Section 1).

Fig. 3
figure3

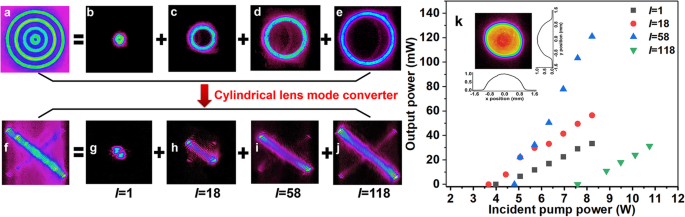

Multi-vortex beams generation. a Measured intensity profile of the generated multi-vortex beams. b, c, d, e Measured intensity profiles of the vortex components of the multi-vortex beams. f, Intensity profile of the multi-HG beams converted from the generated multi-vortex beams by a cylindrical lens mode converter. g, h, i, j Intensity profiles of the HG beams converted from the vortex components, showing that the topological charges of the multi-vortex beams are l = 1, l = 18, l = 58, and l = 118, respectively. k Output powers of the discrete vortex beams versus the incident pump power; Inset: pump beam profile

Some experimental evidences suggest that self-mode-locking operation of high-order transverse mode with high-repetition pulses can be achieved in short-cavity lasers [41,42,43,44]. Actually, high-repetition pulses with GHz level are ideal sources for temporal encoding and time-division multiplexing (TDM) in optical communications [45, 46]. This also motivates us to study the temporal characteristics of the generated multi-vortex beams. Considering that the multi-vortex laser possesses a short cavity cycle of about 300 ps (~ 3.2 GHz in repetition rate), a high-speed photodetector and a high-speed oscilloscope are used to detect and record the temporal characteristics. As expected, we find that the multi-vortex beams can be simultaneously self-mode-locked by finely optimizing the cavity. As shown in Fig. 4, the self-mode-locked vortex beams all possess stable pulse trains. By measuring the radio frequency (RF) spectrum of the mode-locked pulses, signal-to-noise ratio of over 40 dB and high pulse repetition of 3.2 GHz are presented. Besides, the pulse widths of the mode-locked multi-vortex beams are 48 ps. The detailed mode locking results can be referred to Supplementary Information Section 2. In fact, self-mode locking is a general phenomenon in narrow-band lasers [43, 44, 47, 48]. Due to Stark splitting of gain medium induced by intracavity laser field, there will be a dip in the gain-line shape. The laser with such a concave gain shape will produce short pulses due to the pulse stabilization mechanism where spectrum broadening or narrowing will both cause lower average gain [49]. It is worth mentioning that, Nd: YVO4 crystal possesses a large nonlinear refractive index, so the combination of Kerr-lens and hard-aperture of the printed concentric-ring pattern on OC may also contribute to the self-mode locking operation.

Fig. 4
figure4

Self-mode-locked multi-vortex beams. a Measured intensity profiles of the multi-vortex components. b Measured pulse trains of the multi-vortex components

Remarkably, the obtained results show that the generated multi-vortex beams are naturally decomposable and coaxial. Moreover, the multi-vortex beams carry high-repetition picosecond pulses. Therefore, compared with traditional single-charge continuous wave (CW) vortex lasers, the developed multi-vortex laser increases two available spatial and temporal dimensions, which provides favorable potential to perform spatial and temporal encoding for data transmission.

Spatial encoding of the multi-vortex laser

For showing the potential of the multi-vortex laser in optical communications, proof-of-concept experiments are performed. Here, spatial encoding and data transmission are demonstrated in the experiment. Considering that the number of the generated multi-vortex beams is four, hexadecimal encoding of the generated vortex beams is proposed. We define “none of beams” as “0”, the first vortex beam (l = 1) as “20 = 1”, the second vortex beam (l = 18) as “21 = 2”, the third vortex beam (l = 58) as “22 = 4”, and the fourth vortex beam (l = 118) as “23 = 8”. Then the complete hexadecimal encoding can be achieved by selectively combining the multi-vortex components. For example, “D” in hexadecimal codes represents “13” in decimal codes. Given that “13 = 1 + 4 + 8”, the combination of the first, the third and the fourth vortex beams can be encoded as “D” in hexadecimal codes.

To demonstrate the spatial encoding and free-space data transmission, we build up a data transmission system as shown in Fig. 5a. First, a digital micromirror device (DMD) is used to encode the multi-vortex laser by controlling specific combinations of the vortex components to be reflected for data transmission. Then, the encoded multi-vortex laser transmits in free space. Finally, a lens is used to focus the multi-vortex beam into a CCD camera, and the data is decoded according to the recorded multi-vortex patterns. The measured patterns of the encoded multi-vortex laser and the corresponding hexadecimal codes are shown in Fig. 5b. By following the above process, a grayscale image with 64 × 64 pixels is transmitted using the built data transmission system. In a grayscale image, each pixel possesses one of 256 Gy scales. Because 256 = 16 × 16, the grayscale value of each pixel is encoded by two hexadecimal sequences. As shown in Fig. 5c, in the data transmission experiment, there is no errors for the transmitted image [bit error rate (BER) is zero], showing the feasibility of data transmission by applying spatial encoding of the multi-vortex laser.

Fig. 5
figure5

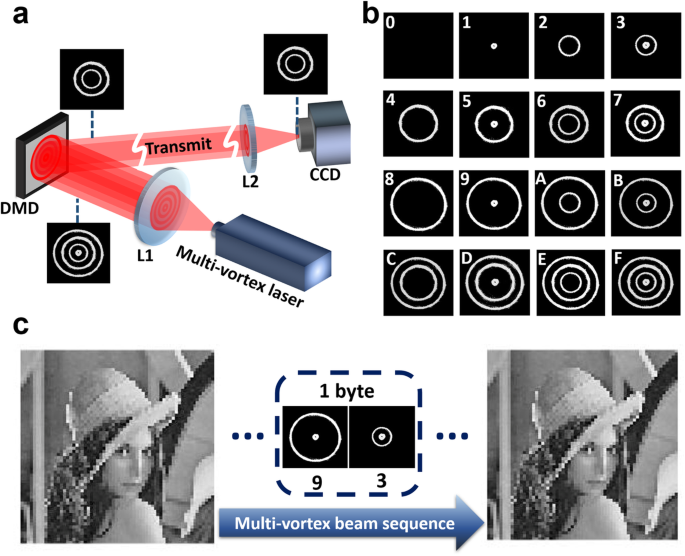

Spatial encoding of the multi-vortex laser for data transmission. a Schematic of data transmission by spatial encoding of the multi-vortex laser. DMD: digital micromirror device. b Measured patterns of the multi-vortex laser encoded by DMD and the corresponding hexadecimal codes. c Measured data transmission results for image transfer using spatial encoding of the multi-vortex laser

Temporal encoding and time-division multiplexing

The above spatial encoding utilizes the spatial dimension of the multi-vortex laser. Actually, ultrafast optical vortices with high-repetition pulses can be applied for time-division multiplexing (TDM) [50], which can further increase the communication capacity. Here, by applying the generated picosecond-pulse multi-vortex beams, temporal encoding and TDM are experimentally demonstrated. The process of TDM of the picosecond vortex is shown in Fig. 6a. In the experiment, the pulsed LG01 vortex beam is employed. First, the pulsed LG01 vortex beam is divided into two pulsed beams. Then, the two pulsed beams are separately temporally encoded with binary signals by pulse modulation. Finally, the two encoded beams are multiplexed for data transmission. At the receiver end, the multiplexed beams are received by a photodetector and decoded by computer.

Fig. 6
figure6

Temporal encoding and time-division multiplexing (TDM) of pulsed vortex beams for data transmission. a Schematic of TDM of the pulsed LG01 vortex beam. b Temporal encoding of one divided pulsed vortex beam. c Multiplexing of two encoded pulsed vortex beams. d Measured data transmission results for two QR codes transfer using temporal encoding and TDM of pulsed vortex beams

In the process of temporal encoding, as shown in Fig. 6b, the pulsed beam is modulated by an electro-optic modulator whose modulation function is shown in the middle part of Fig. 6b. After the modulation, the pulsed vortex beam carries binary signals as shown in the bottom part of Fig. 6b, where the “pulse” moments represent “1” and the “non-pulse” moments represent “0”. With the same modulation process, another divided pulsed beam is also temporally encoded. Multiplexing of the two encoded pulsed beams is achieved by combining them with a half-pulse-cycle delay (Fig. 6c). The multiplexed pulse trains, as shown in the bottom part of Fig. 6c, carry two groups of binary signals. For demonstrating the feasibility of TDM of the pulsed vortex beam, two different QR codes are used for temporal-encoding data transmission. During the temporal encoding, the black pixels of QR codes are encoded as “1” and the white pixels of QR codes are encoded as “0”. As shown in Fig. 6d, two QR codes are successfully transmitted with a BER of zero. Therefore, we demonstrate that the pulsed vortex beams can be temporally encoded and applied in TDM. Each of the optical vortices can be applied for data transmission through TDM, and the TDM traditionally with Gaussian beam can be extended to vortex beam. The multi-vortex beams enable not only TDM but also SDM, thus increasing a new dimension of space for data transmission comparing with the traditional Gaussian beam-based data transmission. The proof-of-concept experiment for simultaneously time-space division multiplexing (TSDM) of multi-vortex beams is also performed, as shown in Supplementary Information Section 3. It is worth mentioning that, mode-locking pulses with higher repetition rate can be obtained (even 100 GHz level can be achieved [51]) when further decreasing the cavity length of the multi-vortex laser, and the data transmission rate will be further increased.

The obtained results shown in Figs. 5 and 6 indicate the successful implementation of the multi-vortex laser for spatial and temporal encoding data transmission.

Discussion

We demonstrate that the multi-vortex laser is directly encoded in the spatial dimension. From another point of view, the performed hexadecimal encoding of the four vortex beams in the experiment is equivalent to that each vortex component carries different binary codes. The performed spatial encoding is analogous to the concept of space-division multiplexing (SDM) of multi-vortex beams. In principle, a free-space-type modulator, which is able to modulate light beams in local space, can be utilized to load independent signals onto each vortex component of the multi-vortex beams, and direct multiplexing of the multi-vortex beams will be achievable. Because the multi-vortex beams are naturally coaxial with transmission determined by the cylindrical symmetry of the laser cavity, such direct multiplexing will significantly save the unscalable and bulky systems required in traditional vortex-based data transmission, which shows the potential of the multi-vortex laser to be applied in vortex-enabled capacity scaling of optical communications. Actually, by specially designing the concentric-rings pattern printed on the cavity mirror using the proposed MOTMA method, vortex beams with higher order and more topological charges can be generated, which will further increase the communication capacity. This can significantly expand the available high-order optical vortices in optical communications, which are far beyond most of the previous demonstrations of vortex-based communications only employing low-order optical vortices [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26].

Conclusions

In conclusion, multi-vortex beams are simultaneously generated from laser by printing a specially-designed concentric-rings pattern on the cavity mirror. In theory, MOTMA method is proposed to obtain the relationship between the concentric-rings pattern parameters and the topological charges of multi-vortex beams, which provides a reliable and versatile design method for direct multi-vortex beams generation from laser. In the experiment, by printing the specially-designed concentric-rings pattern on the OC, multi-vortex beams with four topological charges are simultaneously generated, and the results are perfectly consistent with the theoretical design results obtained with the MOTMA method. Through self-mode-locking operation, pulses with GHz-level repetition rate are carried by the multi-vortex beams. By applying the developed multi-vortex laser, spatial encoding and free-space data transmission are demonstrated. Moreover, temporal encoding and TDM are also demonstrated by using the mode-locked pulses. Therefore, the developed multi-vortex laser provides the added spatial and temporal dimensions that can be encoded, and has a great potential to be applied in optical communications for capacity scaling. With future improvement, the developed multi-vortex laser with distinct spatial-temporal characteristics may also find other emerging applications in manipulation, trapping, microscopy, metrology and material processing with superior performance.

Methods

Derivation of relationship between the pump threshold and the topological charge of vortex

When using MOTMA method to design specific multi-vortex beams generation, relationship between the pump thresholds and the topological charge numbers should be first obtained. Here, the process is conducted. Now consider LG0l vortex mode oscillating in cavity, whose pump threshold is proportional to the cavity loss and is inversely proportional to the laser gain. Thus, the threshold pump power for LG0l mode oscillation can be expressed as [52].

$$ {P}_{th}\left({LG}_{0l}\right)\propto \frac{L_0+{L}_l\left({T}_0,{r}_0,{r}_{i1},{r}_{i2},n,R\right)}{\int {r}_p\left(r,z\right){s}_{0l}\left(r,z\right) dV} $$
(1)

where rp(r,z) and s0l(r,z) are the normalized pump intensity distribution and normalized laser intensity distribution, respectively. The integral represents the laser gain. L0 is the loss of the gain medium. Ll is the loss of cavity mirrors for LG0l mode, and it is related to the OC transmittance (T0), the concentric-rings pattern parameters r0, ri1, ri2, the number of the concentric rings n, and the reflectivity R of the concave mirror (M1 in Fig. 2a). Ll can be expressed as (For details refer to Supplementary Discussion I)

$$ {L}_l\left({T}_0,{r}_0,{r}_{i1},{r}_{i2},n,R\right)=\hbox{-} \ln \left\{\left(1-{T}_0\right)\left[\Gamma \left({r}_0\right)+\sum \limits_{i=1}^n\Gamma \left({r}_{i2}\right)-\sum \limits_{i=1}^n\Gamma \left({r}_{i1}\right)\right]R\right\} $$
(2)

Where

$$ \Gamma (x)=\sum \limits_{m=0}^l\frac{1}{\left(l-m\right)!}{\left(\frac{2{x}^2}{\omega_0^2}\right)}^{l-m}\exp \left(\frac{2{x}^2}{\omega_0^2}\right) $$
(3)

where ω0 is the radius of the laser fundamental mode (TEM00) on OC. By calculating the integral in Eq. 1 and submit Eq. 2 into Eq. 1, the threshold pump power for LG0l mode oscillation can be simplified as (Details in Supplementary Discussion I)

$$ {P}_{th}\left({LG}_{0l}\right)\propto \frac{{\left(1+{\mu}^2\right)}^{l+1}}{\mu^{2l}}{L}_0-\frac{{\left(1+{\mu}^2\right)}^{l+1}}{\mu^{2l}}\ln \left\{\left(1-{T}_0\right)\left[\Gamma \left({r}_0\right)+\sum \limits_{i=1}^n\Gamma \left({r}_{i2}\right)-\sum \limits_{i=1}^n\Gamma \left({r}_{i1}\right)\right]R\right\} $$
(4)

where μ is the ratio of the pump beam radius to the laser fundamental mode radius in the gain crystal. By calculating Eq. 4, relationship between vortex oscillation pump threshold and the topological charge l can be obtained, as shown in Fig. 2b. It is worth noting that, the diffraction loss in the laser is very small and is ignored in the calculation.

Build-up of multi-vortex laser

The multi-vortex laser is built as designed in Fig. 2a. In detail, the pump source is a fiber-coupling LD at 808 nm, the focal length of the collimated lens L1 and the focal lens L2 are both 10 cm, the gain crystal is a-cut Nd:YVO4 crystal with the size of 3 × 3 × 3 mm3 and a doping concentration of 0.5%, the curvature radius of M1 is − 100 mm, the transmittance of plano-plano OC is 2%, and the cavity length is 4.5 cm. The concentric-ring pattern is printed on OC using a high-energy Q-switched laser which is controlled by computer. In detail, the designed parameters of the concentric-ring pattern are input into computer, and the pattern is printed by the laser automatically. The Q-switched laser has an average output power of 300 W and a pulse repetition rate of 50 Hz, and the center wavelength is 355 nm. We print the pattern at Ronggao Laser Company (Shanghai, China). For multi-vortex beams generation, the center of the concentric-rings pattern is adjusted to the cavity axis. Meanwhile, the position of the focal lens L2 is adjusted to optimize the pump mode area matching with the area of the multi-vortex beams.

Measurement of the topological charge

In the experiment, ring-shaped apertures are used to separately select the multi-vortex beams to pass. Then, the selected vortex beam is focused into the central position of the cylindrical lens mode converter. The cylindrical lens mode converter is composed of two identical cylindrical lenses. The distance between the cylindrical lenses is √ 2f, where f is the focal length of the cylindrical lenses. Then the vortex beams are converted into HG beams. By counting the nodal line numbers of HG beams, the topological charges are obtained.

Spatial encoding of multi-vortex beams

In the experiment, a DMD (V-7001, from VIALUX company, Germany) is used to realize the proposed hexadecimal spatial encoding. The DMD consists of micro-mirror arrays on the surface, and the angles of the micro-mirrors can be locally controlled by a computer. Hence, the reflection directions of incident beams can be locally controlled. According to the working principle of DMD, when the multi-vortex laser is incident onto the DMD, a specific combination of the vortex beams can be controlled to be reflected to the data transmission direction, then hexadecimal encoding of the multi-vortex laser is realized.

Temporal encoding and TDM of pulsed vortex beams

In the experiment, the pulsed LG01 beam is firstly divided into two beams using a splitter, then the two divided pulsed beams are fed into electro-optical modulators for temporal encoding. In the encoding process, binary signals are transferred into time-varying voltage signals that are synchronized with the pulses. Then, the voltage signals are loaded onto the electro-optic modulators, forming time-varying transmittance functions which are shown in the middle part of Fig. 6b. Finally, the pulsed beams are modulated and loaded with binary signals. Before multiplexing of the two temporally encoded pulsed beams, a delay line is used in one of the divided pulsed beams to introduce a half-pulse-cycle delay. Then multiplexing with no crosstalk is achieved by using a combiner.

Availability of data and materials

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.

Abbreviations
