Confocal nonlinear optical imaging on hexagonal boron nitride nanosheets


Optical microscopy with optimal axial resolution is critical for precise visualization of two-dimensional flat-top structures. Here, we present sub-diffraction-limited ultrafast imaging of hexagonal boron nitride (hBN) nanosheets using a confocal focus-engineered coherent anti-Stokes Raman scattering (cFE-CARS) microscopic system. By incorporating a pinhole with a diameter of approximately 30 μm, we effectively minimized the intensity of side lobes induced by circular partial pi-phase shift in the wavefront (diameter, d0) of the probe beam, as well as nonresonant background CARS intensities. Using axial-resolution-improved cFE-CARS (acFE-CARS), the achieved axial resolution is 350 nm, exhibiting a 4.3-folded increase in the signal-to-noise ratio compared to the previous case with 0.58 d0 phase mask. This improvement can be accomplished by using a phase mask of 0.24 d0. Additionally, we employed nondegenerate phase matching with three temporally separable incident beams, which facilitated cross-sectional visualization of highly-sample-specific and vibration-sensitive signals in a pump-probe fashion with subpicosecond time resolution. Our observations reveal time-dependent CARS dephasing in hBN nanosheets, induced by Raman-free induction decay (0.66 ps) in the 1373 cm−1 mode.


Hexagonal boron nitride (hBN) crystals, traditionally utilized as heat- or wear-resistant bulk ceramics, have recently been researched because of their superior optoelectronic properties that critically develop in the shape of atomically thin sheets [1]. The alternative hexagonal planar occupations of boron and nitrogen atoms effectively prevent the possible formation of surface roughness or defects during the fabrication of 2D hBN nanosheets, allowing excellent passivation of charge traps, which otherwise create unwanted chemical reactions or electrical leakage [2,3,4,5]. Under heterogeneous integration with other van der Waals crystals, the photoelectric stability of the hybrid structures also plays a critical role in the efficient generation of surface plasmons or phonon polaritons for better light-emitting applications [6,7,8,9]. The lithographically patterned hBN structure successfully served as a high-Q mid-IR light source, which generated deep UV (DUV) emission and paved the way for various DUV-driven hBN-integrated photonic devices [10,11,12]. Schematically designed Schottky defects formed in honeycomb structures (analogous to nitrogen defects in diamonds) have also been frequently mentioned as a single-photon source for quantum information transport [13,14,15].

The nonlinear optical properties of 2D hBN are presently garnering attention, similar to other transition metal dichalcogenide materials, because of its high nonlinear optical light conversion efficiency achieving phase-matching conditions from its atomically thin nature in thickness [16]. The second harmonic generation (SHG) of a single-layered hBN sheet was first reported to be more efficient than a quartz substrate by one order of magnitude [17]. Simultaneously, it is two orders of magnitude smaller than that of MoS2. The thickness dependence of the SHG contrast follows an odd parity rule due to the existence of centrosymmetry with an increase in the layer number. In addition, the third-order nonlinear optical susceptibility (\({\chi }^{(3)}\)) of hBN nanosheets was investigated, and the mechanism of the phonon-exciton coupled radiation of DUV light was detailed using photoluminescence measurements [18,19,20,21]. The in-plane E2g vibration mode of hBN nanosheets is critically assessed by coherent anti-Stokes Raman spectroscopy and stimulated Raman microscopy [22, 23]. Most recently, the third harmonic generation of bulkier (5–170 nm) hBN nanosheets was rigorously assessed with a value of 8.4 × 10–21 m2/V2, an order of magnitude higher than that of fused silica [21].

Moreover, as the size of future electronic devices decreases, it is necessary to improve the visualization of the physicochemical functions of nanocrystalline systems in the axial and lateral directions. Motivated by this background, we performed axial-resolution-improved confocal focus-engineered CARS (acFE-CARS) microscopy to characterize exfoliated planar hexagonal boron nitride (hBN) nanosheets. The z-directional resolution ranges from approximately 1.6 μm to approximately 350 nm by sacrificing the lateral resolution from approximately 96 nm to approximately 120 nm. The optimized 3D configuration of the point spread function requires resetting of the phase mask size from 0.58 d0 to 0.24 d0 under a similar pinhole size of 30 \(\mathrm{\upmu m}\); accordingly, a more stringent confocal condition with an otherwise low signal-to-noise (SNR) level was guaranteed. This approach effectively improved the axial resolution and removed the nonresonant background signals from the substrate. The chemical sensitivity of acFE-CARS for hBN nanosheets was compared with that of Raman spectroscopy and the theoretical model. The enhancement in edge resolution correlated well with atomic force microscopy (AFM).

Results and discussion

Nondegenerate epi-CARS of hBN nanosheets

The hexagonal boron nitride (hBN) system is an electrically insulating material with a wide bandgap of up to 5.96 eV, allowing no electronic resonance condition of any three wavelengths (ω1 for 910 nm, ω2 for 1040 nm, and ω3 for 455 nm) here. The distances between the red dotted lines in Fig. 1a are proportional to the real energy values referenced from the energy diagram by first-principles calculations. A CARS field (purple) is generated by probing action (ω3 for 455 nm, blue) for the phonon mode (E2g, 1366 cm−1) beaten by the pump (ω1 for 910 nm) and Stokes (ω2 for 1040 nm) beams. In addition, the energy conservation of CARS (\(\mathrm{\hslash }{\omega }_{\mathrm{CARS}}=\mathrm{\hslash }{\omega }_{1}-\mathrm{\hslash }{\omega }_{2}+\mathrm{\hslash }{\omega }_{3})\) asserts that the wavelength of the generated CARS field is 428 nm (Fig. 1b). Generally, the intensity (\({I}_{\mathrm{CARS}}\)) of ND-CARS with third-order susceptibility (\({\chi }^{(3)}\)) is expressed as a function of the pump (\({\omega }_{1}\)), Stokes (\({\omega }_{2}\)), and probe (\({\omega }_{3}\)) intensities along the sample thickness z as follows [24]:

$${I}_{\mathrm{ND-CARS}} \propto {\left|{\chi }^{(3)}\right|}^{2}{I}_{\mathrm{pu}}\ {I}_{\mathrm{pr}}\ {I}_{\mathrm{s}}\left[\frac{\mathrm{sin}^{2}(z\cdot \frac{\Delta k}{2})}{{\left(\frac{\Delta k}{2}\right)}^{2}}\right]$$

where \({\mathrm{I}}_{\mathrm{pu}}, {\mathrm{I}}_{\mathrm{s}}\) and \({\mathrm{I}}_{\mathrm{pr}}\) are the pump, Stokes, and probe intensities, respectively. \(\Delta k\) represents the phase difference, explaining the linear dependence on the input power of each beam in Fig. 1c. In Fig. 1d, the polarization dependence (sample rotation) of ND-CARS was determined for three nanosheets with different thicknesses. We confirmed that the isotropic symmetric property of the \({E}_{2g}\) vibration is consistent with that measured by stimulated Raman scattering imaging [22]. Given the meticulous correlation of the exfoliated hBN nanosheets with the optical image and ND-CARS microscopy, the dependence of the CARS intensity on the thickness is summarized in Fig. 1e. Generally, the coherence length of the CARS is expressed with regard to the backward (plus) and forward (minus) directions as follows [25, 26]:

$${l}_{\mathrm{coh}}=\frac{\pi }{\Delta k}=\frac{\pi }{{n}_{\mathrm{CARS}}\frac{2\pi}{{\lambda }_{\mathrm{CARS}}}\pm \left({n}_{\mathrm{pu}}\frac{2\pi }{{\lambda }_{\mathrm{pu}}}+{n}_{\mathrm{pr}}\frac{2\pi }{{\lambda }_{\mathrm{pr}}}-{n}_{\mathrm{s}}\frac{2\pi }{{\lambda }_{\mathrm{s}}}\right)}$$

where \({n}_{\mathrm{CARS}}, {n}_{\mathrm{pu}},{n}_{\mathrm{pr}},\) and \({n}_{\mathrm{s}}\) are the refractive indices of the CARS, pump, probe, and Stokes beams, respectively, and \({\lambda }_{\mathrm{CARS}},{\lambda }_{\mathrm{pu}}, {\lambda }_{\mathrm{pr}},\) and \({\lambda }_{\mathrm{s}}\) are the beam wavelengths. Based on the above model, the coherent length of the ND-CARS tuned to the \({E}_{2g}\) band is 47 nm (red dots; \({\omega }_{1}\), 910 nm; \({\omega }_{2}\), 1040 nm; \({\omega }_{3}\), 455 nm), of which one of the nonresonant ND-CARSs (black dots; \({\omega }_{1}\), 810 nm; \({\omega }_{2}\), 1040 nm; \({\omega }_{3}\), 405 nm) is 39 nm. This trend is reflected in the data in the form of maximum intensity in the shadowed area21. The coherent lengths of the forward ND-CARS corresponding to the above cases are approximately 10 and 4 \(\mathrm{\upmu m}\). From the modified relation of Eq. 1, for the sinc function, the CARS contrast for the 2D material system quadratically increased until around the tenth layer and gradually decreased as the layers (z) were incremented. This is attributed to the transmittance change in the electric field related to intrasystematic absorption [27]. We adopted the theoretical CARS intensity for N-layered graphene for a more quantitative analysis. It was modeled as N2/(1 + N2πσ/c)8, where σ and c are the optical conductivity and speed of light, respectively [28]. The experimental results agree well with the theoretical modeling. The optical conductance achieved via fitting was 1.7 × 10−5 Ω−1, approximately three times lower than that of graphene (6.08 × 10−5). Here, no clear evidence of phonon enhancement in the optical conductance was observed.

Fig. 1
figure 1

a The nondegenerate (ND) CARS process indicated on the energy diagram of bulk hexagonal boron nitride (hBN), where ω1 is 910 nm, ω2 is 1040 nm, and ω3 is 455 nm. b The spectrum of ND-CARS from hBN flakes. c The power dependence of ND-CARS from hBN flakes. d The polarization dependence of ND-CARS from hBN flakes. e Four-wave mixing (ω1, 810 nm; ω2, 1040 nm; ω3, 405 nm; black) and ND-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm; red) intensity as a function of the thickness of hBN flakes

Ultrafast phonon dynamics of hBN nanosheets measured by ND-CARS

The susceptibility of the hBN system (\({\chi }_{\mathrm{hBN}}^{(3)}\)) in the near vibration mode (ωv) can be approximated as \({A}_{v}/({\omega }_{v}-\left({\omega }_{1}-{\omega }_{2}\right)-i{\Gamma }_{v}\)) + \({\chi }_{\mathrm{NR}}^{(3)}\), where Av is a factor for the Raman scattering cross-section, Γv is the linewidth of the vibration mode, and \({\chi }_{\mathrm{NR}}^{(3)}\) is the nonresonant CARS (abbreviated as ND-FWM here) susceptibility [29]. Figure 2a illustrates the principle of obtaining the coherency (built by \({\omega }_{1}-{\omega }_{2}\)) of the damped molecular vibration via time-resolved CARS spectroscopy as a function of the time delay (τ) of the probe pulse. The vibrational frequency of hBN was not readable because it was much faster (1366 cm−1 = 24 fs) than the pulse width (120 fs). Figure 2b shows the pulse envelope, approximately half (428 cm−1 = 78 fs) of the FWHM of the superimposed pulse width, which overlaps with the E2g mode of the Raman spectrum of the hBN flakes. The thicknesses of the studied hBN nanosheets ranged from 20 to 100 layers and did not exhibit any significant sample-to-sample differences from 1366 cm−1 [30]. Here, the linewidth of the vibration mode was measured to be 10 cm−1 deconvolved with 7.78 cm−1, corresponding to a 0.68 ps dephasing time \(({\mathrm{T}}_{2}/2=2\mathrm{\hslash }/{\Gamma }_{R})\) [31,32,33]. Time-resolved ND-CARS and ND-FWM microscopy [34] images for Fig. 2c–e and time-resolved dynamics were collected for the green dashed circle area in Fig. 2d–e. The time-resolved CARS dynamics consist of the instrumental response function (IRF) associated with the cross-correlation between three pulses and coherent anti-Stokes Raman scattering from E2g vibration (see Methods) [32, 33]. The Raman free-induction decay (T2/2 = 0.66 ps) is measured by time-resolved ND-CARS which is consistent with the lifetime obtained from the spontaneous Raman spectrum (T2/2 = 0.68 ps). Because of photodamage, limited power (approximately 5.32 mW, 14.45 mW, and 0.15 mW for ω1, ω2, and ω3, respectively) dependence measurements were allowed from 1 to 4.8 mW, as with the pump and Stokes beams. This demonstrates a small contrast inversion (between 3 and 4 in Fig. 2e), presumably due to the inertial intermolecular response [35, 36]. Fig. 2f–g show the time-resolved CARS spectra as functions of the probe delay of arbitrarily thick hBN nanosheets. Figure 2g was obtained using 910 nm/1040 nm as pump/Stokes beams, which were ascribed to the E2g phonon mode of hBN crystals, and 455 nm as the probe beam to generate a CARS beam at 428 nm. The pulse envelope covered by a pump (120 fs) and probe (220 fs) was calculated as approximately 78 fs with a center at 1373 cm−1 [37]. In contrast, Fig. 2f was obtained using 810 nm/1040 nm/405 nm as pump/Stokes/probe beams, which detected phonon vibrations at approximately 2730 cm−1. The appearance of oscillatory tails in Fig. 2f demonstrates a clear difference between the two spectra, which is consistent with the image data (Fig. 2c–e).

Fig. 2
figure 2

a Schematic of the ND-CARS process of hBN b Raman spectrum of hBN and spectrum window of pump pulses c Time-resolved ND-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm) and ND-FWM (ω1, 810 nm; ω2, 1040 nm; ω3, 405 nm) of hBN flakes. The intensities are collected from time-resolved d ND-FWM (ω1, 810 nm; ω2, 1040 nm; ω3, 405 nm) and e ND-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm) images of hBN (cyan dotted circles). Time-resolved spectrum of f ND-FWM (ω1, 810 nm; ω2, 1040 nm; ω3, 405 nm) and g ND-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm) of hBN. The green arrows indicate the polarization direction. A logarithmic scale is used for dg. The white scale bars correspond to 6 μm

Focal size configuration in cFE-CARS microscopy

The optical resolution has been improved by reducing the lateral focal width using a pinhole, more specifically by cutting off the side-lobe volume caused by destructive interference originating from the partial phase delay of the wavefront of the probe beam [38,39,40]. Figure 3a shows a complete illustration of the optical path of the cFE-CARS microscope. Briefly, an optical parametric oscillating Yb-doped fiber laser emits a pair of femtosecond pulses, one of which is a fundamental mode (\({\omega }_{2}\), 80 MHz, FWHM 220 fs). The other is a wavelength variant (680–1300 nm) mode (\({\omega }_{1}\), FWHM 120 fs). Here, \({\omega }_{1}\) is frequency doubled to \({\omega }_{3}\) (\(=2{\omega }_{1}\)) by the BBO crystal and is directed to the spatial light modulator (SLM) for a subsequent focus engineering process. In SLM, the background-corrected circular patterns of the phase masks are encoded from pc, freely offering a partial \(\pi\) phase delay in the central portion. The chromatic aberration among the three waves was corrected using a liquid lens (L-lens) in the \({\omega }_{3}\) pathway. After passing the SLM and L-lens, the \({\omega }_{3}\) wave is overlapped to the \({\omega }_{1}\) and \({\omega }_{2}\) fields using a “short pass” dichroic mirror and finally focused using an objective lens in the imaging system. The focus-engineered (FE) CARS signals are bounced back to the galvanometric (GV) scanner. They are then redirected via a “long pass” dichroic mirror (LDM) to the external photomultiplier tube (PMT) detector. Before the final detection, the FE-CARS beam was refocused using a pair of parabolic mirrors to obtain confocal geometry from the sample focal plane. The focused beam is filtered out via a 30 \(\mathrm{\upmu m}\) pinhole to remove the side lobes and the background signals out of the confocal position from the pinhole to eventually improve the z-directional resolution [41]. The focal shape of axially adjusted confocal focus-engineered CARS (acFE-CARS) microscopy is sequentially compared with other CARS techniques from Fig. 3b–e. Figure 3b shows a z-directional scan of an isolated ZnO nanoparticle taken by ND-CARS, where no phase-mask image is applied to the wavefront of the \({\omega }_{3}\) field, which drastically changes with the application of the phase mask (d = 0.58d0) in FE-CARS in Fig. 3b. The average diameter in the central lobe was carefully determined to be 110 nm and was improved to approximately 87 nm with the application of pinholes in the detection line (cFE-CARS), as thoroughly examined before [38]. However, the marginal signal-to-noise level (10–30) hampered the applicability of our work, forcing us to enhance the absolute CARS contrast by reducing the area of the central \(\pi\) phase delay mask (from 0.58 to 0.24 d0) in the presence of the pinhole. In this way, we were permitted to obtain the final point spread, as shown in Fig. 3e, with a sacrifice of a lateral resolution of 120 nm and a drastic improvement in the axial resolution up to 350–500 nm (using hBN nanosheets, Fig. 4) in acFE-CARS microscopy.

Fig. 3
figure 3

a Schematic of confocal focus-engineered CARS microscopy. SLM, spatial light modulator; L-lens, liquid lens; SDM, short pass dichroic mirror; LDM, long pass dichroic mirror; OL, objective lens; GV, galvanometric mirror; PM, parabolic mirror; PMT, photomultiplier tube. The z-directional point-spread functions for b ND-, c FE-, d cFE-, and e acFE-CARS. The circular phase mask patterns and pinhole presence are illustrated as insets with the respective illustrated focal shapes. The white scale bar corresponds to 500 nm

Fig. 4
figure 4

a The xy-directional image of ND-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm) of hBN flakes. The xy-directional mean filtered images of b ND-CARS and c acFE-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm) of hBN flakes, whose region is indicated with a green box in a. d The line profiles of ND-CARS and cFE-CARS of hBN are shown with cyan dotted lines in b and c. The line profiles are fitted with a Gaussian cumulative distribution function. The distance between 10 and 90% of fitted function is indicated in f. The z-directional mean filtered image of e ND-CARS and f acFE-CARS of hBN of which region is indicated with cyan dashed line in a. g The z-directional line profiles of ND-CARS and acFE-CARS of hBN flakes whose region is indicated with cyan dashed lines in e and f. The green arrows indicate the polarization direction. The white scale bars correspond to a 10 μm, b 2 μm, and e 5 μm

The optical resolution of acFE-CARS microscopy

An arbitrary region with a few exfoliated hBN nanosheets (of different thicknesses) was chosen to assess the spatial resolution of the acFE-CARS microscopy, as shown in Fig. 4a. Fig. 4b–c show the xy-directional ND- and acFE-CARS images of the hBN nanosheets, indicated by the green dashed box in Fig. 4a. We selected thin (approximately 19 nm) flakes (at the central part of the green box in Fig. 3a), which were measured by AFM (Supplementary Fig. 11b) to critically evaluate the resolution of acFE-CARS for hBN systems. Fig. 4b–c shows the ND- and acFE-CARS xy-directional images of the thin hBN nanosheets. The contrast of the ND-CARS image was noticeably blurrier than that of the acFE-CARS image, showing a smaller field of view in the gap area composed of the upper part of the target hBN flake and the lower part of the thick one. Specifically, more discernible contrast enhancement on the edge side was assessed with a line profile drawn along the lines in Fig. 4b–c for more quantitative analysis, of which edge resolution was performed by measuring the distance between 10 and 90% from the maximum intensity along the line profiles [42,43,44]. The summarized intensity comparison among the different techniques in Fig. 4d reveals that the actual edge slope length can be resolved via acFE-CARS at 105.9 nm. In contrast, the same distance can be determined via ND-CARS microscopy at 271.4 nm. Thus, acFE-CARS is more than twice as effective. These numbers in the edge resolutions of ND- and acFE-CARS are compared with those of AFM in Supplementary Fig. 8.

However, the z-directional resolution was elucidated by axial scanning along the lime-dashed line in Fig. 4a. Axial image scanning was performed using the ND and acFE-CARS methods, as shown in Fig. 4e and 4f, respectively. In Fig. 4e, the z-directional CARS contrast from hBN is blurry and mixed with that from the background signal at the interface of the coverslip glass, which becomes more severe as the thickness of the hBN nanosheet increases. However, the z-directional image obtained by the acFE-CARS technique shows sharper and narrower contrasts for all the considered thicknesses (19, 72, and 104 nm) of the hBN nanosheets (Fig. 4f). For more information, the z-directional optical resolution (\({\mathcal{R}}_{z}\)) of coherent light-scattering systems is defined as follows [45, 46]:

$${\mathcal{R}}_{z}=\frac{2n\lambda }{{NA}^{2}}$$

where \(\lambda\) is the wavelength of the excitation light, n is the refractive index in the objective plane, and NA is the numerical aperture of the objective lens. The above equation implies that the usage of index matching materials with a higher refractive index inherently worsens the z-directional resolution. The theoretical FWHM of axial ND-CARS microscopy is approximately 913 nm (based on the assumption of 455 nm excitation, see Supplementary Fig. 5), which is already massively exaggerated by the mixed contributions of optical misalignment and background contamination up to the approximately 2 μm scale according to the Gaussian-fitted full width at half maximum (FWHM) values in the upper part of Fig. 4g. In contrast, the \({\mathcal{R}}_{z}\) of the acFE-CARS microscopy was improved to 350 nm in the thinnest sheets, as demonstrated in the upper part of the line profile graphs in Fig. 4g, confirming the sub-diffraction-limited nature of the acFE-CARS system. Generally, the technical challenges for z-directional resolution advancement have been extensively sought by collecting the fluorescence signals in a 90° angled objective lens in 4PI microscopy or light sheet microscopy. Remarkably, the high quantum yield fluorescence signals of fluorophores generated from z-directionally formed standing wave illumination were schematically utilized for approximately twice the axial resolution in widefield structured illumination microscopy.

Axial time-dependent acFE-CARS microscopy

In CARS microscopy, nonresonant signals from the substrate and even from immersive oil or water deteriorate the quality of the original contrast. Thus, heterodyne detection with CARS photons generated from other sources or modulated frequency detection of the pump by the probe beam (or vice versa), as in stimulated Raman scattering microscopy, has been frequently adopted for better background-free images [47, 48]. Fig. 5a–b show a few selected time-resolved acFE-CARS images as a function of probe delay scanned in the lateral and axial directions. The pulse envelope covered by the pump (120 fs) and probe (220 fs) was calculated at approximately 78 fs with the center at 1373 cm−1 [37]. Similar to the image sets in Fig. 2b, the CARS contrasts re-raised between Images 3 (0.6 ps of probe delay) and 4 (0.8 ps), presumably caused by phonon–phonon scattering only in the hBN specimen, which is not shown in the glass substrate. A more drastic demonstration of the suppression of the background CARS is shown in Fig. 5c, where ND-CARS resolves the z-directional time-resolved phonon dynamics. Here, the nonvibrational-mode CARS signals from glass and immersion oil gradually disappear (green arrow), whereas the E2g mode of hBN phonons is highly scattered and creates a subsequent resurrection of CARS signals (blue arrow). Figure 5c compares the time-dependent changes in the CARS signals taken from Fig. 5a (blue), 5b (blue), and 5c (green) from the hBN nanosheets. The CARS contrasts were re-brightened at the approximately 0.8 ps probe delay position for the hBN sample. The signal variation was not discernible for the glass substrate (such as the ZnO nanoparticle in Supplementary Fig. 6) and rather diminished.

Fig. 5
figure 5

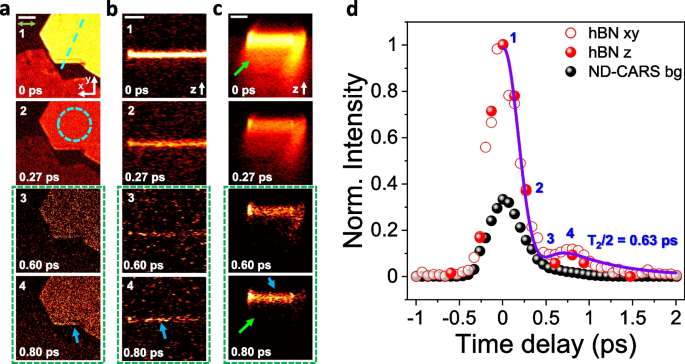

Time-resolved acFE-CARS (ω1, 910 nm; ω2, 1040 nm; ω3, 455 nm) a xy- and b z-directional mean filtered images of hBN flakes. c z-directional time-resolved ND-CARS images for an arbitrary region. d Time-resolved cFE-CARS dynamics from xy- and z-directional images of hBN flakes (bg, background). A logarithmic scale is used for a–c. The images in the green dashed boxes are rescaled to represent re-raised signals while maintaining the background (the empty region) level. The green arrow in a indicates the polarization direction. The white scale bars correspond to 2 μm


In summary, we applied an axial sub-diffraction-limited pump-probe mode confocal focus-engineered coherent anti-Stokes Raman scattering microscope to study the vibration dynamics of exfoliated hBN nanosheets. The ultrafast time-dependent measurement was achieved using an additional probe beam after doubling the pump beams. The chromatic aberration of the near UV beam was corrected with a liquid lens, which resulted in more than ten times enhancement in the CARS signal [38]. To image the thin atomic layered film, the axial resolution was improved from 1.6 μm to 350 nm with a sacrifice in the lateral resolution (from 96 to 120 nm) compared with our previous report, which is mainly made possible by reducing the phase mask diameter for better contrast. Given the revamped focal PSF in acFE-CARS microscopy, we achieved a vivid appearance of Raman-free induction decay from hBN nanosheets in axially scanned probe-delayed images compared to the glass substrate. We strongly believe that the idea to manipulate the “con-focus” of the real nonlinear optical focus can be upgraded with more diverse pinhole sizes and geometries of phase masks as a potential ultrafine platform to study the ultrafast vibrational dynamics of material and biological systems in a sub-diffraction-limited regime in a three-dimensional fashion.


acFE-CARS microscope

The commercial Yb-doped fiber laser (Insight DeepSee dual, Spectra Physics) supported dual-mode options of fundamental (1040 nm) and wavelength-tuning (680–1300 nm) operations, permitting the former to be used as a Stokes beam and the latter as a pump beam in two-beam CARS microscopy. The tunable part of the lasing beam was split using a 70:30 beam splitter, and the wavelength of the higher-intensity portion was halved (455 nm) using a second-harmonic generation process in a β-barium borate crystal (Edmond Optics). We used a circular pinhole with a diameter of 25 μm (Newport, 900PH-25; 30 μm diameter circular pinhole used for Supplementary Fig. 3 and Supplementary Figs. 8 and 9, Newport, 900PH-30) to correct the distorted beam shape. This shorter-wavelength beam was utilized as the probe beam in ND-CARS field generation. Additional focus matching of the probe beam was performed continuously using a liquid lens (Optotune, EL-10–30-C-VIS-LD-MV) placed in the probe beam path. Concentric circular phase control of the wavefront of the probe beam was implemented using a reflective SLM (Hamamatsu, LCOS-SLM) with a corrected flat background phase profile. Two long-focal length (f1 = 1000 mm and f2 = 750 mm) convex lenses were used to image the phase-modulated wavefront shapes from the SLM to the oil-immersion objective lens (Olympus, UplanSApo, 1.35NA, 60X, oil immersed) with a 4f geometry. The backscattered CARS photons were directed backward before the galvanometric mirror (Fluoview1200, Olympus) to achieve a spatially fixed input position (descanned detection geometry). The CARS photons were directed by dichroic mirrors (LM01-427–25 SEMROCK) and imaged onto a pinhole to obtain the confocal imaging conditions at the image planes. The two parabolic mirrors (MPD149-F01, Thorlab) and a 30 μm circular pinhole (Newport, 900PH-30; 40 μm diameter circular pinhole used for Supplementary Figs. 8 and 9, Newport, 900PH-40) were utilized for pinhole filtering in acFE-CARS. Three bandpass filters (Semrock) were used to select the CARS beam at 428 nm (FF01-425/26, and FF01-414/46), which was collected by a photomultiplier tube (PMT, Hamamatsu). The image collection times are approximately 10 s per image for hBN nanosheets to obtain lower laser-induced damage. The spectra were analyzed independently using a monochromator (Acton SP-2300i, Princeton Instruments) combined with a CCD camera (PIXIS 100 B, Princeton Instruments) and a 50:50 beam splitter.

Time-resolved CARS spectroscopy

The time-resolved CARS intensity consists of the instrumental response function (IRF) associated with the cross-correlation between the three pulses and coherent anti-Stokes Raman scattering from E2g vibration [31, 32]. One example of IRF is the nonresonant background (NRB) signal like four-wave mixing. In addition, CARS and NRB emit same anti-Stokes frequency at same position in hBN and interference between them could give additional effects [49,50,51]. Furthermore, the NRB is reported in CARS measurement probing E2g vibration in hBN [22]. Therefore, we can express time-resolved CARS intensity with Eq. (4).

$${I}_{\mathrm{CARS}}\propto {\left|\mathrm{exp}\left(-2\mathrm{ln}2\frac{{t}^{2}}{{T}_{\mathrm{IRF}}^{2}}\right)\mathrm{exp}\left(i\omega t \right)+{A}_{\mathrm{CARS}}\mathrm{exp}\left(-\frac{t-{t}^{\prime}}{{T}_{2}}\right)\mathrm{exp}\left(i\omega \left(t-{t}^{\prime}\right) \right) \right|}^{2}$$

The TIRF is the FWHM of the cross-correlation signal, T2/2 is Raman-free induction decay, ACARS is the relative amplitude of CARS, ω is the angular frequency of CARS, and t' is the phase mismatch between IRF and CARS signals. The first contribution is associated with IRF and the second contribution is associated with CARS signals. Then, TIRF is 0.52 ps (0.38 ps, the 1/e width), T2/2 is 0.66 ps, and t' is 0.56 \(\times\) 10–3 ps for Fig. 2c. TIRF is 0.45 ps (0.32 ps, the 1/e width), T2/2 is 0.63 ps, and t' is 0.54 \(\times\) 10–3 ps for Fig. 5d.

Mechanical exfoliation of hBN

The hBN flakes (2D semiconductors) were poured onto a sticky side of ~ 20 cm length Scotch tape (3M) which is fixed to the lab table. Then, it was repeatedly (5–6 times) exfoliated until atomically thin flakes were obtained, as reported in the literature [21, 52]. The final portion of the Scotch tape was attached to a coverslip, rubbed repeatedly with a cotton swab for 1 min, and finally the Scotch tape was detached from the coverslip. The monolayer graphene capping process is employed for the scanning electron microscope imaging (Supplementary Fig. 10) to prevent the charge effect in accordance with the previous study [38, 53].

ZnO nanoparticle dispersion

An air plasma chamber was used for the hydrophilic coverslip surface (5 min). We coated ZnO nanoparticles (30–40 nm, US Research nanomaterials) onto coverslips using a spin-coater twice at 3000 rpm for 30 s.

First-principles calculations of hBN systems

The full-potential LAPW implemented in the ELK code is used for the band structure of the bulk hBN system [54]. The modified Becke-Johnson meta-generalized gradient approximation is employed to match the experimental band gap [55, 56]. We employed 18 × 18 × 6 k-grids and an 8.0 rgkmax value. We used lattice parameters of hBN as \(a=\) 2.502 Å and \(c=\) 6.617 Å.

Instrumentation for sample characterization

The E2g modes of the exfoliated hBN films were characterized using a commercial Raman spectroscopic system (Almeca XR, Nicolet) equipped with a 50 × objective lens (Olympus, Mplan N) [57]. The spectra were collected for 50 s with approximately 2 mW of 532-nm laser illumination.
