Green lithium: photoelectrochemical extraction


Lithium (Li) is an essential element in modern energy production and storage devices. Technology to extract Li from seawater, which contains ~ 230 billion tons of Li, offers a solution to the widespread concern regarding quantitative and geographical limitations of future Li supplies. To obtain green Li from seawater, we propose an unassisted photoelectrochemical (PEC) Li extraction system based on an III-V-based triple-junction (3J) photoelectrode and a Li-ion selective membrane with only sunlight as an input. A light-harvesting/catalysis decoupling scheme yielded a 3J photoelectrode with excellent light-harvesting and catalysis reaction capabilities and superb stability over the 840 h of the extraction process. It allows the system to successfully enrich seawater Li by 4,350 times (i.e., from 0.18 ppm to 783.56 ppm) after three extraction stages. The overall reaction of the unassisted PEC green Li extraction system achieved 2.08 mg kJ−1 of solar-to-Li efficiency and 3.65% of solar-to-hydrogen efficiency.

Graphical Abstract

Photoelectrochemical (PEC) lithium extraction device is designed to explore lithium from seawater for the first time. The PEC cell with a triple-junction (InGaP/GaAs/Ge) photoelectrode and light-harvesting/catalysis decoupling scheme is constructed, offering a suitable operating potential and superb stability to the membrane-based extraction process in the seawater. The device can successfully enrich lithium by 4,350 times (from 0.18 to 783.56 ppm).


Since lithium (Li) has rapidly emerged as a strategically important resource [1,2,3,4], the future security of Li supply has raised concerns throughout the energy sector. One-quarter of global lithium reserves will be consumed by electric vehicles alone before 2050 [5, 6]. Besides, the geographic distribution of land-based Li is highly uneven. The traditional Li exploitation methods involve a long time and large quantities of reagents, leading to cost increases and environmental pollution [7]. Fortunately, the ocean as a Li-rich source, containing four orders of magnitude larger (~ 230 billion tons) than the Li reserves on land and overcoming location-dependent limitations, provides an option for most countries to explore Li resources infinitely and directly. Despite far lower concentrations of Li (0.1–0.2 ppm) in seawater than other ions, all of which are over 13,000 ppm, various innovative strategies have demonstrated the feasibility of extracting Li directly from seawater [6, 8,9,10,11,12]. The ceramic-based membrane extraction process has been proved as a novel and promising technique with high selectivity and continuity. However, current technologies do not eliminate the reliance on fossil fuels, still facing energy shortage problems and environmental pollution issues.

The goal of carbon neutrality forces green energy and resource, like 'green hydrogen,' to become the central theme in the energy sector [13,14,15]. Similarly, 'green Li'—extracted from an inexhaustible resource using only renewable energy as an input—will be the 'final answer' for the sustainability of Li-based industries. Solar energy is one of the most promising energy sources for the green Li extraction process as it is inexhaustible and environmentally friendly. Photoelectrochemical (PEC) cells, which combine light-harvesting and electrochemical processes to directly store solar energy in chemical bonds, offer the possibility of eliminating external wiring and minimizing reliance on electrolyzers [16,17,18]. The integrated systems also provide an opportunity to implement thermal management, wherein the aqueous electrolyte solution cools the illuminated semiconductor, maintaining a high photovoltage. In contrast, the electrocatalyst/solution is heated, lowering the overpotential. PEC devices have been regarded as a promising platform that provides a competitive and economical solution for medium- and long-term solar energy utilization [19,20,21]. Therefore, combining PEC and Li-ion selective membrane technologies offers a feasible strategy to achieve consecutive green Li extraction.

Tremendous efforts have been undertaken to design and develop feasible unassisted PEC cells that can efficiently perform various PEC reactions driven by sufficient photovoltage and use only sunlight as energy input [22,23,24]. However, the membrane extraction process always involved the electrochemical redox reactions on both electrodes and the migration of Li ions in the membrane, which required high applied voltage (over 2 V) to drive the operation [25,26,27,28]. To construct an unassisted PEC Li extraction device, an III-V-based (InGaP/GaAs/Ge) triple-junction (3J) photoanode with an open-circuit potential (Voc) of 2.47 V was designed. Moreover, the longtime stability of PEC operation in the seawater was another big concern for the final application [29,30,31,32,33,34], as the nature of poor photo-corrosion resistance of III-V semiconductors [35] and the corrosive chlorine gas producing near photoanode. Therefore, an innovative decoupled scheme of PEC cell was proposed, which allows the light-harvesting (front) side to be covered by a low-cost soda-lime glass as a transparent protective layer and the electrolysis (back) side protected by a potent Ti layer. The decoupled scheme provides the photoanode with excellent stability > 840 h for extraction process conditions. Combining the decoupled scheme 3J PEC cell and Li-ion selective membrane, we successfully extracted the high-purity green Li from seawater for the first time while storing solar energy as hydrogen energy with high efficiency. The PEC technology for green Li mining drives real progress across a broad range of technological designs and manufacturing areas, which have presented inspiring results and may break the status quo of Li supply.

Results and discussion

Decoupling design for III-V-based triple-junction PEC cells

Light-harvesting ability, electrolysis, and stability of the device are the main factors that must be carefully adjusted in traditional monofacial PEC device configuration. This is attributed to the fact that all major components of the device are mainly integrated on the illuminated side of the device that is illuminated (Figure S1a). The light reflection and parasitic absorption of opaque catalyst layer (Rc and Ac), along with the protection layer (Rp and Ap), substantially block the light arriving at the photo-absorber. This limits the photocurrent in monofacial PEC devices. In contrast, an innovative scheme was used in our proposed device for Li extraction that decouples the optical absorption and electrocatalytic interfaces (Fig. 1a and S1b). Moving the catalyst and protection layer to the back of the device avoids the wastage of light that may be caused by the shadowing effect of co-catalysts or gas products before it reaches the photo-absorber. In addition, a thick layer of titanium (Ti) foils (~ 200 μm) was employed as a protective layer and co-catalyst supporter to yield a PEC cell with excellent stability during the seawater Li extraction process (as discussed in the "Stability of the PEC green Li extraction device" section).

Fig. 1
figure 1

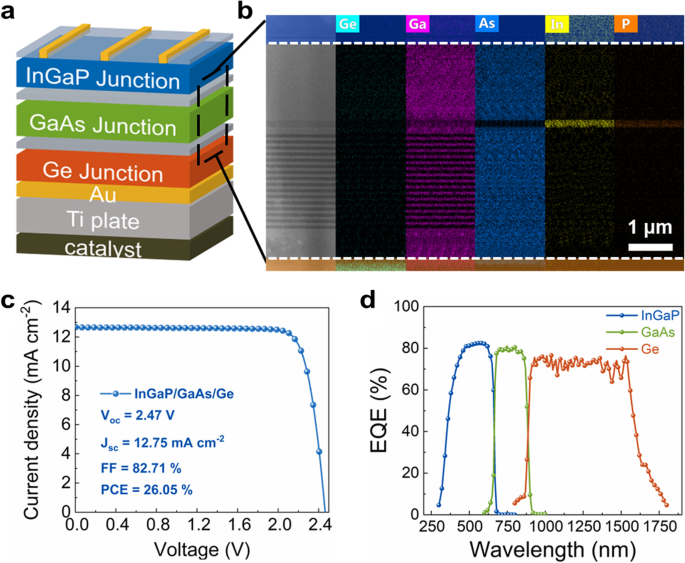

a Schematic representation of spatially and functionally decoupled III-V-based 3J photoanode. b HAADF-STEM image of photo-absorber of PEC cell and the corresponding elemental mapping images. c J-V characteristics of the InGaP/GaAs/Ge 3J cell under 1 sun AM 1.5G illumination. d EQE measurement of the InGaP/GaAs/Ge 3J cell

The composition and structure of the photo-absorber in the proposed PEC cell were revealed using high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) with elementary distribution mapping. As shown in Fig. 1b, the composites of the top, middle, and bottom cells included InGaP, GaAs, and Ge, respectively. Two highly doped wide bandgap materials were deposited as a tunnel junction connecting the subcells in series to construct the 3j photo-absorber for the PEC cell. Thus, the photovoltages of three subcells in the 3j PEC cell will be added during illumination, and therefore the Voc achieved is higher than the potential required to drive unassisted Li extraction. In addition, multiple quantum wells were introduced in the middle cell (GaAs junction) to broaden the absorption spectrum. To quantitatively identify the Voc and the light-harvesting ability, the PV characteristics of the III-V-based 3J cells, which consist of top (InGaP, Eg = 1.80–1.85 eV), middle (GaAs, Eg = 1.40 eV), and bottom subcells (Ge, Eg = 0.67 eV) were measured under AM 1.5 G simulated one-sun conditions. As shown in Fig. 1c, the Voc, short-circuit current density (Jsc), fill factor (FF), and power conversion efficiency were 2.47 V, 12.75 mA cm−2, 82.71%, and 26.05%, respectively. In addition, the external quantum efficiency (EQE) of the solid-state device was characterized (Fig. 1d). First, the GaInP top subcell absorbed almost all photons with a wavelength of 300–600 nm. After that, the photons that passed through the top cell entered the GaAs middle subcell region, where photons of wavelength 600–900 nm were absorbed. Finally, the remaining photons of wavelength 900–1,800 nm were absorbed by the Ge bottom subcell. These results highlight high photovoltage and excellent light absorption of the III-V-based 3J photoanode.

PEC green Li extract setup

A schematic of the PEC green Li extraction device designed in this study is shown in Fig. 2a. The device was divided into two compartments: the enrichment chamber (deionized water) on the cathode side and the feed chamber (seawater) on the anode side. Both chambers were separated by a dense crystalline ceramic membrane with a diameter of ~ 12 mm (Fig. 2b) and a thickness of 600 μm (Figure S2). A type of solid-state Li-ion superconductor, Li1.5Al0.5Ge1.5(PO4)3 (LAGP), was applied in this work. Due to its distinctive crystal structure, the LAGP membrane usually has a Li-ion conductivity one order of magnitude higher compared to the Li0.33La0.56TiO3 (LLTO) membrane reported in our previous study [25], which is critical to achieving high Li+ permeance. Besides, this dense membrane can also provide a high selectivity of Li ions and successfully preserve other disturbing ions (i.e., Na+, K+ Mg2+, and Ca2+) passing through (Figure S3) [6, 27, 28]. The obtained membrane was identified as LAGP using the X-ray diffraction (XRD) spectroscopy pattern (Figure S4). The III-V-based 3J photo-absorber was designed as a photoanode immersed in seawater. During the extraction process, an imbalance in the charge was caused as Li ions passed through the LAGP membrane from the feed chamber to the enrichment chamber driven by the 3J PEC cell. Hence, the excess Cl in the feed chamber needed to be directly consumed by the holes produced at the back side of the photoelectrode. Chlorine gas (Cl2) was released via Reaction 1. Meanwhile, the electrons produced from the front side were collected by the interdigitated Au/Ti grid and transferred to the Pt electrode to consume the excess cations (H+) in the enrichment chamber (Reaction 2). As the protons were continuously consumed, the pH in the enrichment chamber would increase, resulting in the corrosion of the LAGP membrane. Therefore, CO2 was constantly introduced into the enrichment chamber during operation to buffer pH changes. In addition, CO2 can be fixed via the formation of a super carbonate in the final enrichment solution.

Fig. 2
figure 2

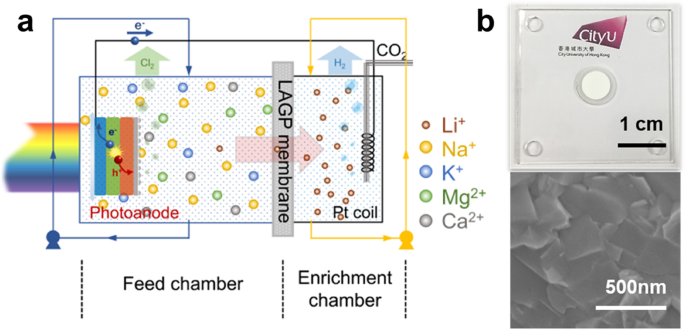

a Schematic illustration of the two-compartment PEC device to continuously enrich Li from the feed solution to the cathode compartment and simultaneously generate H2 and Cl2 at the cathode and anode, respectively, under 1 sun AM 1.5G illumination. b The digital and high magnification SEM image of the surface of the LAGP membrane (~ 12 mm in diameter)


$$\begin{array}{cc}{2\mathrm{Cl}}^{-}-{ 2\mathrm{e}}^{-}\to {\mathrm{Cl}}_{2}\uparrow & (\mathrm{Reaction }1)\end{array}$$


$$\begin{array}{cc}2{\mathrm{CO}}_{2}+{2\mathrm{H}}_{2}\mathrm{O}+ 2{\mathrm{e}}^{-}\to 2{\mathrm{HCO}}_{3}^{-}+ {\mathrm{H}}_{2}\uparrow & (\mathrm{Reaction }2)\end{array}$$

PEC green Li extraction process test

This work deliberately implemented a three-stage extraction process (each stage lasts 20 h) to obtain a high-purity Li+ solution in the final enrichment solution. This can, in turn, facilitate more accessibility to a solid-state Li product (as described at the end of this section), which is indeed the preferable form in the Li extraction industry. To intuitively reflect the results of the PEC Li extraction process, the detailed concentrations of the major ions in the seawater (Red Sea) and enrichment solutions after each stage were listed in Table 1. Only the concentration of Li-ion was continuously enriched, whereas those of other ions remained considerably low. In the 1st stage, the Red Sea water sample was circulated in the feed chamber, and deionized water was used as the initial enrichment solution. Under 20 h of illumination, the designed PEC Li extraction device continuously extracted the Li ions from seawater to the enrichment solution, eventually reaching a concentration of 37.07 ppm, which was 200 times higher than the original Li concentration in seawater. The PEC Li extraction device can also achieve a Li/Mg and Li/Na selectivity of ~ 16 million and ~ 0.5 million, respectively. The Li/M selectivity (M represents either Na+ or Mg2+) is an essential index that could reflect the Li ion-selective capacity and purity in the final enriched solution. The high Li/Mg selectivity implies the presence of fewer co-precipitated ions in the final solution allowing obtaining pure solid-state Li products for direct precipitation in one of the later steps. The high Li/Na selectivity presents fewer soluble ions, dramatically reducing the post-cleaning process of solid products. After three extraction stages, the III-V-based photoanode finally enriched Li+ to 783.56 ppm with a lumped Li/Mg selectivity of over 50 million and a lumped Li/Na selectivity of over 1.9 million. Except for the Na ions and Mg ions, the PEC extraction process also exhibited good selectivities of other ions during the three extraction stages, all summarized in Table S1.

Table 1 Concentration of the major ions in Red Sea water and enriched solutions

In addition, Fig. 3a presents the photocurrent of the device at each stage over time. The stable photocurrent indicated that all the main components in our device (the photoanode and LAGP membrane) were robust for at least 20 h at the working condition. The plot of steady-state current and Li feed concentration (Fig. 3b) shows that the current increased with the increase in Li+ concentration in the feed solution, demonstrating that the available Li+ in the feed compartment primarily limited the entire photocurrent produced by the device. The Li-ion feed concentration was the lowest in the 1st stage, indicating that the 1st stage is the rate-determining stage of the entire extraction process. However, its extraction rate is determined to be 30.89 ug ppm−1 cm−1 h−1, which still exhibits good performance compared to other extraction technologies, as shown in Table S2.

Fig. 3
figure 3

a The chronoamperometric curve at each stage; integrating the area under the curve gives the total charge passing through the membrane in Coulombs for each stage. b The average photocurrent vs. the Li concentration in the feed solution at different stages. c The number of different ions passing through the membrane (bar chart) and the contributed faradaic efficiencies for each stage (red star). d The XRD pattern of the Li3PO4 sediment collected from enrichment solution after three extraction stages. The inset shows the enriched Li solution and the Li3PO4 sediment

Figure 3c shows the concentration of ions in the enrichment chamber after each PEC extraction stage. In all three stages, the number of the major interfering ions (Na+, K+, Mg2+, and Ca2+) were negligible compared to Li ions. To further identify that the source of the Li extracted in the enrichment chamber is seawater, we evaluated the difference between the Li+ amount before and after extraction (Δnfeed) in the feed chamber and the final amount (nenrichment) in the enrichment chamber ("Methods" section). The result (Δnfeed ≈ nenrichment) demonstrated that almost all Li ions were directly extracted from the feed chamber, rather than the membrane dissolution (Figure S5). Besides, in the 20 h PEC seawater extraction process, the total Faradaic efficiencies of all stages, which represents the ratio of the total amount of charge brought to the charge integrated by the photocurrent produced by the PEC cell, were almost 100% (Fig. 3c). High Faradaic efficiency reflects that the ions in the enriched solution contribute to constructing the entire circuit. This verifies that the majority of the Li ions were transported through the membrane, and Li+ was successfully extracted from seawater. Furthermore, as there is no obvious change in the surface micromorphology of the membrane (Figure S6) and no new feature peaks appearing in the XRD spectra (Figure S4) after Li extraction process, the LAGP membrane presents good physical and chemical stability during the extraction process. After the three extraction stages, the solid-state Li product was directly precipitated at a concentration of ~ 800 ppm in the enriched solution (Fig. 3d, inset). The XRD spectra (Fig. 3d) of the final products fit well with the standard pattern of Li3PO4 (PDF#25–1030), demonstrating that high-purity solid-state Li products could be obtained from our PEC Li extraction device.

The PEC performance of the III-V-based 3J photoanode during the extraction process was characterized using a three-electrode configuration (Fig. 4a). As shown in Fig. 4b, the PEC chlorine evolution reaction (ClER) performance of the photoanode closely matched the PV performance of the device, with JCl2 and |VOSE0| of 12.45 mA cm−2 and 1.86 V vs. RHE, respectively (where JCl2 is the saturation current density at E0 for ClER; VOS is the onset potential measured at a photocurrent density of 1 mA cm−2, and E0 is the equilibrium chlorine ion oxidation potential). The fact that the value of JCl2 measured in the current study is similar to that of Jsc measured in the air can be attributed to: i) the neglectable series resistances caused by the excellent fabrication and integration of the PEC cells into the Li extraction systems and ii) the superior light absorption capability due to the decoupling of the light-harvesting and electrocatalysis components of the device. |VOSE0| reflected the potential that the photoanode can provide after overcoming the overpotential of the ClER. The difference (~ 0.6 V) between |VOSE0| and Voc was mainly due to the high onset potential of the co-catalyst (~ 1.61 V), as shown in Fig. 4b. Integrating lower overpotential co-catalyst in PEC cell can be investigated to optimize this process further. Figure 4c compares the PEC performance of the photoanode at the three different extraction stages. The performance of the photoanode (onset potential and incremental photocurrent) exhibited the following trend: 1st stage > 3rd stage > 2nd stage, which presents the same trend as the Cl concentration in the electrolyte. However, it should be noted that the photocurrents of the entire system in the second and third stages (Fig. 3b) were higher than in the first stage. These results indicate that the performance of the whole system is determined by the Li+ transportation process, which further proves the high Li-ion selectivity of the LAGP membrane.

Fig. 4
figure 4

a Schematic illustration of a three-electrode configuration for the PEC test. b LSV curves of the 3J photoanode measured in a three-electrode setup in Red Sea water (pH = 8.2) under 1 sun illumination and dark electrolysis of the Ru-Ir-TiOx co-catalyst. c LSV curves of the photoanode under 1 sun illumination in a three-electrode setup for each extraction stage. d Chronopotentiometry experiments at a current density of 2.96 mA cm.−2

Stability of the PEC green Li extraction device

Given that Cl2 is corrosive and produced near the photoanode of PEC cells, the stability of PEC devices used in seawater is a major concern in real-world implementation [36]. In this work, more holes and Cl2 were produced by the photoanode during the third stage as the highest photocurrent density. This implies that the photoanode is more likely to damage during the third stage than in the other two stages. Therefore, the stability of the photoanode in the third stage, which can reflect its actual stability performance, was carried out. Remarkably, the initial potential (vs. Ag/AgCl) of the photoanode was retained over 840 h of operation without any noticeable degradation (Fig. 4d). Figure S7 shows that the PEC stability demonstrated in the present study is better than those presented in previous studies as most PEC cells cannot work in seawater for more than 10 h [29,30,31,32, 34]. This excellent stability benefits from the decoupling PEC configuration, which allows a robust protection layer introduced in the system without compromising the light-harvesting efficiency.

PEC green Li extraction performance evaluation

Given the difficulties surrounding the calculation of stored energy within Li, we recommend evaluating the solar-to-Li extraction efficiency (ηSTLi) by the Li quantity (mg) against the incident solar energy (kJ), which can be derived using Eq. (1):

$${\eta }_{STLi} \left(mg {kJ}^{-1}\right)=\frac{{J}_{Li}/(nF)\times {M}_{Li}}{{P}_{in}}\times {10}^{6}$$

where JLi is the average current density for PEC Li extraction caused by Li+ transportation (mA cm−2), which is the product of the total current in the system and the Faradaic efficiency of Li ions for each stage (Fig. 5a); n is the valence state of the Li-ion (+ 1); F is the Faradaic constant (96,485 C mol−1); MLi is the atomic weight of Li (6.941 g mol−1), and Pin is the incident optical power illuminating the PEC cell surface (100 mW cm−2).

Fig. 5
figure 5

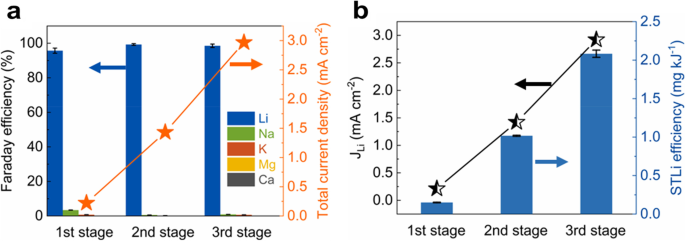

a The contributed faradaic efficiencies of the different ions (bar chart) and the total current density (orange line) for each stage. b The averaged current density converted to Li-ion extraction (JLi black line) and the corresponding solar-to-Li extraction efficiency (ηSTLi) for each stage (blue bar)

Figure 5b shows the JLi and ηSTLi for each PEC Li extraction stage. In the first stage, JLi was 0.21 mA cm−2. In comparison, JLi reached 1.42 mA cm−2 and 2.92 mA cm−2 in the second and third stages, respectively. The ηSTLi improved from 0.15 to 1.01 mg kJ−1 in the second stage and finally reached 2.08 mg kJ−1 in the third stage. Hydrogen molecules were also produced in the enrichment chamber when Li was extracted. The solar-to-hydrogen efficiency (ηSTH) was calculated for the three extraction stages using Eq. (2) [13]:

$$\eta_{STH}\left(\%\right)=\frac{Rate\;of\;H_{2\;}production\times\Delta G_{H2+O2=H2O}}{P_{in}}\times100=\frac{J\times1.23V}{P_{in}}\times100$$

where J is the total current density for PEC Li extraction caused by all ion transportation (mA cm−2, Fig. 5a). In the first stage, J was 0.22 mA cm−2. It can reach 1.43 and 2.96 mA cm−2 in the second and third stages, respectively (Figure S8). Correspondingly, the ηSTH improved from 0.27 to 3.65%.

The first stage was the rate-determining stage of the PEC Li extraction process, but even with its ηSTLi of 0.15 mg kJ−1, ~ 12.0 kg of Li, which is roughly required by an electric vehicle, could be extracted from seawater by our system within a day (an 8 h 1-sun illumination per day) with a 2,800 m2 or roughly 2/5 football field size PEC device. At the same time, this PEC system can also produce ~ 1.5 kg H2 and fix ~ 76.7 kg CO2 in the form of bicarbonate in the final enrichment solution. Although the value of the solar energy conversion efficiency was not comparable to the highest efficiency of the PEC water splitting/CO2 reduction [37, 38], the total economic value produced by our system is as high as ~ US$ 1.7 m−2 per day, especially with the high value of Li products (cost of Li2CO3 =  ~ US$ 75.0 kg−1). This remarkable economic value indicates the future potential of this PEC Li extraction method. The major challenge of the proposed system is associated with the feasibility of scaling up the process while maintaining stable performance, especially for the Li-ion selective membrane. Although the membrane exhibits high Li selectivity performance, the presence of tiny cracks can result in leakage of other ions, which can substantially impact the stability of the membrane. In addition, a long operation time (over 20 h) may result in Li+ leaching from the membrane, which is highly dependent on the fabrication process. Hence, the stability of the membrane should be accurately evaluated and improved in the future. Moreover, the mechanism of the entire extraction process should be identified to ensure the practical use of this Li extraction system.


Green Li extracted from an inexhaustible source using renewable energy provides a promising solution to the present Li resource crisis and environmental issues. In the present study, we proposed and implemented a system for green Li extraction from seawater using an unassisted III-V-based 3J PEC cell and Li-ion selective membrane for the first time. A decoupling scheme was employed on the PEC cell design, which provided excellent stability for > 840 h of active operation. The system can successfully enrich Li through a three-stage extraction process from the base seawater concentration of 0.18 ppm to 783.56 ppm with negligible impurities. Currently, the final ηSTLi and ηSTH of the PEC system reached up to 2.08 mg kJ−1 and 3.65%, even when the initial efficiency at the first stage was 0.15 mg kJ−1 and 0.27%, respectively. In addition, our PEC Li extraction system may have huge potential to recovery Li from spent Li-ion batteries, as spent Li-ion batteries can be regarded as an enormous Li resource with higher Li contents compared to seawater [39,40,41,42]. To further optimize the proposed system, a highly active co-catalyst should be integrated, the fabrication process for high stability and Li-ion conductivity membrane should be optimized, and a more compact device configuration should be explored. As global attention is focused on lowering carbon emissions and struggling with a lack of reliable Li supplies, green Li extraction will be critical for the energy storage system. The finding of our present study represents a significant milestone for establishing circular and zero-carbon economies.


Mixed metal oxide (Ru-Ir-TiOx) electrode synthesis

To obtain good catalytic performance of the oxidation reaction and ensure its stability in seawater, a mixed metal oxide catalyst (Ru-Ir-TiOx) for the chlorine evolution reaction (ClER) was fabricated. A thermal treatment method was used to synthesize the electrode; this method yielded an electrode with compact morphology featuring mud cracks (Figure S9) [43]. The dimensionally stable electrode was prepared as previously described. Briefly, a Ti plate (thickness ~ 200 μm) was cleaned by sonication in acetone and then etched as the substrate using 10% boiling oxalic acid solution for 2 h. A paint solution (Ru:Ir:Ti of molar ratio 25:25:50) was prepared by dissolving ruthenium(III)-hydrated chloride (99.98% trace metals basis, Sigma-Aldrich), iridium(III)-hydrated chloride (99.9% trace metals basis, Sigma-Aldrich), and titanium diisopropoxide bis-2,4-pentanedionate (75% isopropanol solution, Thermo Scientific™). This paint solution was applied to the pretreated Ti substrate using a brush. Thereafter, the sample was dried at 90 °C for 10 min in an oven and then sintered in a furnace at 450 °C for 10 min. The operation was repeated until the nominal thickness of the electrode was ~ 10 μm. The electrode was finally annealed at 450 °C for 1 h.

PEC cell fabrication

The Ga-In eutectic was applied on the top finger electrode to ensure Ohmic contact without shorting the PEC device. A thin foil contact lead of Cu was taken out using the protection of a high-grade polystyrene pipette tip. Thereafter, a thin quartz slide was used to cover the top side of the III-V triple-junction (3J) cell. For the electrocatalytic (back) side of the cell, a thin gold (Au) layer was used to ensure Ohmic contact by Fermi level pinning near the valence band edge of Ge [44]. This further reduces the losses of minority carrier recombination in Ge substrates and reflects back the unabsorbed photons with long wavelengths for reabsorption. Subsequently, the Ru-Ir-TiOx electrode was attached to the Au layer using silver paste. The sample was finally embedded in Epoxy (Hysol 1C) such that only the part covered by mixed metal oxide catalyst was exposed to the electrolyte.

LAGP membrane fabrication

LAGP membrane was prepared using a solid-state reaction method. First, 18.60 g Li2CO3 (ACS reagent, > 99.0%, Sigma-Aldrich), 8.157 g Al2O3 (particle size < 50 nm, Sigma-Aldrich), and 50.23 g GeO2 (> 99.99% trace metals basis, Sigma-Aldrich) were dispersed in 200 mL of isopropanol. Subsequently, 110.04 g NH4H2PO4 (99.5%, Sigma-Aldrich) was added to the suspension by stirring. The mixture was then blended further using a ball grinder, and thereafter, it was dried at 80 °C, sintered at 600 °C for 4 h, and then sintered again at 900 °C for 6 h under air at heating and cooling rates of 2 °C min−1. The resulting white LAGP powder was ball-milled at 300 rpm for 12 h to obtain LAGP nanoparticles. After that, the LAGP nanoparticles were loaded into a Tungsten carbide pellet mold and pressed into disks to form the green bodies of the membranes, with diameters of 12 mm. The green bodies were sintered in a high-temperature furnace at 600 °C for 2 h and then at 880 °C for 8 h to produce the LAGP membranes. The heating and cooling rates of the sintering process were 2 °C min−1.

Unassisted photoelectrochemical Li extraction process

The PEC Li extraction process was performed in a customized H-shaped cell separated by a LAGP membrane at 25 °C. The III-V-based photoelectrode was used as the anode on the feed side, whereas a Pt coil electrode was used as the cathode immersed in the DI water saturated with CO2 gas on the enrichment side. In the system used in the present study, the light-harvesting side was illuminated through a thin quartz window. In contrast, the catalyst layer was in contact with the electrolyte at the location where the ClER proceeded. The process was measured on a BioLogic VMP3 potentiostat at 25 °C using the standard two-electrode setup under chronoamperometric conditions without any bias. A 150 W halogen-lamp-based solar simulator (Newport Corporation, AAA Class) with Air Mass 1.5 Global (AM 1.5 G) solar filters was calibrated to 100 mW cm−2 (1 sun) using a certified standard power meter (RQN3724, ABET Inc.). The ions concentration of the enriched solution after 20 h extraction process was analyzed by ICP-OES. All the samples were tested three times to reduce the random error. The seawater sample was fetched from the Red Sea with location around 21°27'N 38°54'E. The water sample was filtered using fine filter papers (Whatman acid-treated and low metal grade, Sigma-Aldrich) and then used without further treatment. During the extraction process, the solution volume circulated on the feed side was 25 L for the first stage and 2.5 L for the remaining two stages, whereas the solution volumes at the cathode were fixed at 1.5 mL. During the extraction process, CO2 was chosen as a buffer to balance the pH of the solution as it is cheaper and easily available compared to other solution buffers. Moreover, CO2 will not introduce other cations, which may interfere with the ICP testing, therefore, can reflect the actual results of the extraction process for every cation. After the 3rd extraction stage, the solution in the enrichment was taken out. And then added the Na3PO4 into it to get the final solid production Li3PO4.

The Li/Mg selectivity (SLi/Mg) and Li/Na selectivity (SLi/Na) for each stage were calculated by the following Eqs. (3) and (4):

$${S}_{Li/Mg}=(\frac{{C}_{Li, i}}{{C}_{Li,sw}})/(\frac{{C}_{Mg, i}}{{C}_{Mg,sw}})$$
$${S}_{Li/Na}=(\frac{{C}_{Li, i}}{{C}_{Li,sw}})/(\frac{{C}_{Na, i}}{{C}_{Na,sw}})$$

where CLi,i, CMg,i, CNa,i, CLi,sw, CMg,sw, and CNa,sw, are the mole concentrations of Li+, Mg2+, and Na+ in the ith enriched solution and seawater, respectively.

To identify the validation of the selectivity of the LAGP membrane, a constant voltage (2.5 V) was supplied by a potentiostat to drive the extraction process instead of a PEC cell and pure LiCl solution (50 mL, 1 ppm Li+) was prepared to replace the seawater in the feed chamber with other conditions remaining fixed.

The economic value produced by the PEC extraction system was calculated as follows:

As the solar to lithium efficiency (ηSTLi) is 0.15 mg kJ−1 and assuming there is 8 h 1-sun illumination per day, the mass of lithium per m2 per day can be calculated:

$${m}_{Li}= {P}_{in}\times time \times {\eta }_{STLi}=1 kW {m}^{-2} \times \left(8 \times 3600\right) s \times 0.15 mg {kJ}^{-1}=4.3 g$$

In addition, the mass percentage of Li in Li2CO3 is 18.79%, Therefore, ~ 22.8 kg Li2CO3 can be obtained per m2 per day. Finally, the price of Li2CO3 in April 2022 is around US$75 per kg. The total economic value produced by our system is as high as ~ US$ 1.7 m−2 per day.

Photoelectrochemical and electrochemical characterization

The Ru-Ir-TiOx dark electrodes and III-V-based photoanodes were characterized in a three-electrode configuration: the (photo)anode as the working electrode, an Ag/AgCl/3 M KCl (Metrohm AG) reference, and a platinum coil counter electrode. LSV was typically conducted at a scan rate of 2 mV s−1. The potentials were converted to RHE by using the following Nernst equation:

$${E}_{RHE}\left(V\right)={E}_{Ag/AgCl} \left(V\right)+{E}_{Ag/AgCl}^{0} \left(V\right)+0.0591\times pH$$

E(Ag/AgCl) is the experimentally measured potential, and E0(Ag/AgCl) is the standard potential at 25 °C.

Microstructure characterization

Morphology of samples was observed using SEM (FEI© Magellan) with a beam energy of 5 kV. In addition, XRD patterns were recorded at 25 °C using a Bruker D8 Advance powder diffractometer (German Bruker) equipped with a LynxEye detector and a Cu source. ICP-OES was carried out using ICP-OES-Agilent 5110 equipment with an autosampler. Mixed standards (Li+, Na+, K+, Mg2+, and Ca2+) with concentrations of 0.1–100 ppm (4 points per magnitude) were calibrated. Liquid samples were diluted using 1% aqueous nitric acid to obtain the required concentration range.

Availability of data and materials

The datasets analyzed and generated during the current study are included in the paper and its Supplementary Information.









High-angle annular dark-field scanning transmission electron microscopy


Fill factor


External quantum efficiency




X-ray diffraction


Chlorine evolution reaction

ηSTLi :

Solar-to-Li extraction efficiency

ηSTH :

Solar-to-hydrogen efficiency
