Displacement-mediated bound states in the continuum in all-dielectric superlattice metasurfaces

PhotoniX volume 2, Article number: 7 (2021) Cite this article

Abstract

Bound states in the continuum (BICs) are localized states coexisting with extended waves inside the continuous spectrum range, which have infinite lifetimes without any radiation. To extract high-Q quasi-BIC resonances from the symmetry-protected BIC for practical applications, symmetry-breaking approaches are usually exploited, either by slightly breaking the excitation field symmetry or structure symmetry. Here, we introduce an all-dielectric superlattice metasurface that can symmetry-compatibly convert BIC states into high-Q quasi-BIC modes based on the guided-mode resonance coupling by relative displacement tuning. The metasurface is composed of a superlattice of multiple nanobeams, supporting both magnetic mode and toroidal mode with large tunability. Both modes can interact with the incident continuum by mediating the displacement between nanobeams, which empowers dual asymmetric Fano resonances with high Q-factors. The bandwidth of the toroidal mode under y-polarized incidences and that of the magnetic mode under x-polarized incidences can be readily tuned by the local displacement between nanobeams in each unit cell. Such displacement-mediated BIC resonance is promising for various applications such as bio-molecule sensing and low threshold lasing.

Introduction

Metasurfaces, which consist of periodic arrays of carefully designed nanostructures, provide a versatile platform to accurately control the properties of light, including phase, amplitude, polarization and frequency spectrum of light [1]. In recent years, metasurfaces based on dielectric materials with high refractive index have been used to develop numerous compact optical devices due to their low loss properties, including flat lenses [2,3,4], beam deflectors [5, 6], holograms [7, 8], etc. Searching for the ultra-high Q-factor resonant structures with strong mode coupling has attracted much attention recently [9,10,11]. In this respect, bound states in the continuums (BICs) emerged as a novel method of light confinement with infinity Q-factor [12, 13]. BICs are highly localized states embedded inside the continuous spectrum coexisting with radiative modes, which can carry energy away, without any radiations like discrete and spatially bounded states [12, 13]. True BICs are unavailable and can only exist in a mathematical model. When the system is disturbed a little bit from the ideal situation, the BIC mode would couple to the extended waves and leak into reachable Fano resonance with finite high Q-factor, which is the so-called “quasi-BIC” [14,15,16,17], or supercavity mode [18,19,20].

There are basically two types of BICs [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43], namely, the symmetry-protected BICs and the resonance-coupled BICs [28,29,30]. The symmetry-protected BICs originate from the forbidden excitation of certain modes governed by the in-plane symmetry of the structure [13, 14]. Ultra-high Q-factor resonance modes can be obtained by slightly breaking the symmetry of the structure, convert the BIC to ultra-sharp Fano resonances. The Fano resonances are ascribed to the asymmetric mode supported by the asymmetric structure, of which the electromagnetic field distribution slightly deviates from that of symmetric modes. And the Q-factor can be readily tuned by the degree of asymmetry [14]. Based on the symmetry-protected BIC, most of the previous work converts the BIC into high-Q resonances by either slightly breaking the excitation field symmetry through oblique incidences [31, 32] or introducing structural asymmetry in the Γ point [14, 21,22,23,24,25,26,27]. In principle, those symmetry-protected BICs could also be originated from the bound states located in other high symmetry points beyond Γ point (such as X or M points), which yet could be transferred to Γ point through band folding. By perturbing multiple unit-cells in the lattice, it can fold high symmetry points below the light cone (bound sates) to above the light cone (in the continuum) [25, 42, 43]. On the contrary, the resonance-coupled BICs are originated from the linewidth vanishing by destructive interference of anti-crossing coupled resonance modes [15, 28, 29], which does not rely on the symmetry operations. However, most present resonance-coupled BICs are based on the engineering of multiple resonance modes supported by the unit-cell structure, which has multiple geometry degree of freedom and needs tedious researching procedure of proper parameters.

Here, we report a displacement-mediated superlattice metasurface that supports symmetry-compatible quasi-BICs based on the resonance coupling between the backward/forward guided modes through lattice transformation. The metasurface is composed of multiple parallel nanobeams with tailored global and local displacements, which are defined by the distance between nanobeams in adjacent unit cells and the distance between nanobeams within each unit cell, respectively (Fig. 1a). It can interplay with the incident continuum by transferring the simple lattice to a superlattice through relative displacement engineering of individual nanobeams. High Q-factor quasi-BIC resonance can be extracted from the ideal BIC by symmetry-compatibly making a slight difference between the local and global displacements. The bandwidth of the toroidal mode for y-polarized incidences and the magnetic mode for x-polarized incidences can be readily tuned by the local displacement between nanobeams in each unit cell. The resonance peak position of the toroidal quasi-BIC is linearly dependent on the local displacement, while that of the magnetic quasi-BIC remains unchanged with the local displacement, due to different mode characteristics. We envision that the displacement-mediated superlattice metasurfaces with BICs may facilitate many applications including high figure of merit bio-molecule sensing and low threshold lasing.

Fig. 1
figure 1

a Schematic of the all-dielectric superlattice metasurface supporting displacement-mediated quasi-BICs. The unit cell consists of three silicon nanobeams with different local displacement (d1) and global displacement (d2). Three representative unit cells with different △d are shown on the right panel: △d = − 200 nm (green circle), △d = 0 nm (red circle), and △d = 100 nm (blue circle). b The transmission spectra with respect to △d. The color circle symbols represent the resonance peak of quasi-BIC with three different △d as indicated in (a). c Dependence of the Q-factor and resonance wavelength of the quasi-BIC mode on △d

Full size image

Results and discussion

Figure 1a shows the unit cell of the considered all-dielectric superlattice metasurface. It is composed of three identical nanobeams made of silicon (n = 3.47) with a length of 700 nm, width of 150 nm and height of 110 nm. The periods along the x- and y-direction are px = 700 nm, py = 750 nm, respectively. The displacement between adjacent nanobeams within each unit cell is defined as the local displacement (d1), while the displacement between nanobeams in adjacent unit cells is defined as the global displacement (d2). Here, we demonstrate the manipulation of quasi-BIC by introducing a displacement difference parameter (△d = d1-d2) to open a leaky channel of the BIC, which originates from the band folding of guided mode to the continuum. Figure 1b shows the transmission spectra with respect to different △d for the metasurface embedded in free space for y-polarized normal incidences. For the △d = 0 (denoted as the red circle) case, the metasurface supports a BIC state with infinitely high Q-factors. The transmission spectrum manifests a smooth profile without a sharp dip due to the uncoupling between the external environment and the ideal BIC state. When △d ≠ 0 (denoted as green and blue circles), a narrow dip arises in the transmission spectra, which means the excitation of quasi-BIC state with a finite Q-factor. Noteworthily, another Fano resonance originated from magnetic dipole (MD) mode at shorter wavelengths does not vanish no matter how the spacing changes, and the bandwidth and the resonance peak position remain almost unchanged during the variation. The possible reason is that for y-polarized incidences, the MD Fano resonance at shorter wavelengths is produced by the mutual coupling between adjacent nanobeams with each unit cell, which is only related to the local displacement, while the quasi-BIC resonance at the longer wavelength is caused not only by the coupling between nanobeams within each unit cell, but also the coupling between the three-nanobeam unit-cells, which are governed by both the local and global displacements, respectively. Similarly, the transmission spectra with variations of other structural parameters (px, py, wx, wy and h) are shown in Fig. S1 of Supplementary Information. As can be seen, those parameters only affect the peak position of double asymmetric Fano resonances, but cannot tune the linewidth to infinitesimal. Only by adjusting the relationship between local and global displacements (△d or px) can we control the linewidth or even make it vanish. Figure 1c manifests the Q-factor and the resonance wavelength of the quasi-BIC as functions of △d around a BIC state. One can see that the linewidth of the quasi-BIC dwindles rapidly as △d approaches zero, while the resonance peak shifts to the longer wavelength with the increasing of △d. The Q-factor of the BIC mode tends to infinity at △d = 0. We also calculated the band diagram and the Q-factor map of eigenmodes supported in the △d = 0 metasurface (See Fig. S2 in Supplementary Information for more details). As we can see, the BIC is originated from the resonance decoupling between the forward and backward guided modes, reach their highest Q-factors at the Γ point where they intersect with each other. To consider the practical conditions, results of the superlattice metasurface with measured refractive index on a glass (n = 1.5) substrate are shown in Fig. S3 of Supplementary Information. It can be seen that the Q-factor decreases with the existence of a substrate, since the substrate converts the BIC into a resonant state, leaking through the radiation channel in the substrate [38]. However, it remains high Q-factors and can be easily adjusted to the desired values by the displacement difference △d.

We recognize the BIC modes by utilizing multipole expansions [44,45,46,47,48,49,50] and near-field electromagnetic patterns of the modes. Figure 2a shows the simulated transmittance and reflectance spectra of the superlattice metasurface with the displacement difference parameter △d = − 70 nm, embedded in free space for y-polarized normal incidences, where double asymmetric Fano resonances with high Q-factors can be observed at λ = 847 nm and 1148 nm. Mode 1 refers to the MD Fano resonance at 847 nm. Mode 2 refers to the quasi-BIC mediated by the parameter △d at 1148 nm. The spectral curves in Fig. 2a correspond to the specific case indicated by the dashed line of Fig. 1b. Figure 2b and c depict the extinction cross-section spectra by multipole expansions of the MD Fano resonance (resonance 1) and quasi-BIC resonance (resonance 2), respectively. We found that MD Fano resonance is indeed dominated by the MD mode, with smaller contributions from the electric quadrupole (EQ) mode, considering the lattice interaction and the influence of periodicity. The quasi-BIC resonance is completely different, which is dominated by the toroidal (TD) mode, with smaller contributions from the magnetic quadrupole (MQ) mode, representing the radiation channel coupled to the external waves in our system. The locations of the strong scattering intensity of the multipoles are consistent with the spectra in Fig. 2a. By analyzing the near-field electromagnetic patterns of the modes, shown in Fig. 2d and e, we further confirm that the MD mode with antisymmetric distributions of polarization currents, accompanied by the coexistence of EQ mode with different strengths at λ = 847 nm. Furthermore, the quasi-BIC resonance corresponds to TD mode with the dominant direction perpendicular to the incident light, accompanied by MQ mode with different strengths at λ = 1148 nm.

Fig. 2
figure 2

a Transmission (red curve) and reflection (blue curve) spectra of the superlattice metasurface under y-polarized normal incidences. Parameters of the structure: px = 700 nm, py = 750 nm, wx = 150 nm, wy = 700 nm, h = 110 nm, d1 = 60 nm, and d2 = 130 nm. b and c Extinction cross-section spectra by multipolar expansion of the superlattice metasurface as a periodical array at the two resonant modes shown in (a). ED (red line) denotes electric dipole; MD (blue line) denotes magnetic dipole; TD (yellow line) denotes toroidal dipole; EQ (green line) denotes electric quadrupole; MQ (violet line) denotes magnetic quadrupole and the gray line denotes total scattering intensity. d and e The electric near-field distribution at λ = 847 nm. f and g The electric near-field distribution at λ = 1148 nm. The xy plane is at z = 55 nm (The middle of the nanobeams) above the base of the silicon nanobeams. The yz plane passes through the center of the unit cell

Full size image

At the condition of △d ≠ 0, another symmetry-protected BIC is accompanied with our previous mentioned displacement-mediated quasi-BIC in the superlattice metasurface, which can be transferred to finite-linewdith quasi-BICs by varying the incident angle. The transmission spectra with respect to the angle and wavelength of y-polarized incidence is depicted in Fig. 3a. The curve indicated by the green circle is the displacement-mediated quasi-BIC and the curve indicated by the blue circle is the symmetry-protected quasi-BIC mediated by the incident angle. Several appealing features can be observed from Fig. 3a. First, the linewidth and position of the green circle are determined by the parameter △d, which is also the largest linewidth of the quasi-BIC in the whole transmission spectra. If the parameter △d = 0, the quasi-BIC will not emerge at any angles, which is completely confined. Second, for quasi-BICs (the blue circle) mediated by the incident angle, the line width of the quasi-BIC resonance absolutely vanishes because the system is completely symmetrical at normal incidences and does not couple with the external environment. We note that the maximum linewidth of the quasi-BIC produced by the incident angle is also determined by the parameter △d. If △d = 0, the quasi-BIC mediated by the incident angle will not appear in the transmission spectrum. With the increase of △d, this quasi-BIC (the blue circle) appears in the case of oblique incidences, and the maximum linewidth of this quasi-BIC in the transmission spectrum increases. In other words, the quasi-BIC mediated by incident angles has the same resonance wavelength of the quasi-BIC caused by the displacement, with large angular dispersion. Moreover, the maximum linewidths of two types of the quasi-BICs appear at different positions in the transmission spectra, but their maximum linewidths are nearly identical and determined by the parameter △d. Figure 2b shows the Q factors of two different quasi-BIC modes at different incident angles. When the incident angle is 0°, the Q-factor of quasi-BIC (mode 2b) caused by the incident angle is infinite. With the increase of the incident angle, the Q-factor decreases, and then increases when the incident angle approaches grazing incidence. The quasi-BIC (mode 2a) caused by the displacement increases with the incident angle. Since the displacement-mediated quasi-BIC regulates Q-factor to infinity by △d, the incident angle only changes the Q-factor, but does not lead to infinity. Figure 3c and d show their electric near-field patterns at the incident angle of 2°. Although the positions of the two quasi-BICs are very close to each other, the electromagnetic modes of the two quasi-BICs are different, which can be accurately analyzed by multipole expansions. Therefore, the extinction cross-section spectra by multipole expansions of the two quasi-BICs at the angle of 2° are presented in Fig. S4 of Supplementary Information, revealing that the absorbing phenomenon can be largely attributed to the coexistence of dominant multipoles. The displacement-mediated quasi-BIC is dominated by the TD mode, coupled with concomitance of other multipoles including MD and MQ modes with distinct strengths, while the angle-mediated quasi-BIC is produced by the concomitance of predominant multipoles including MD and EQ modes with unequal strengths. Figure 3e-g show the transmission spectra at angles of 2°, 15° and 30°, respectively, demonstrating that the two quasi-BICs mediated by the incident angle shift in the opposite directions with the increase of incident angles, which are promising to develop multiple angular dispersion applications.

Fig. 3
figure 3

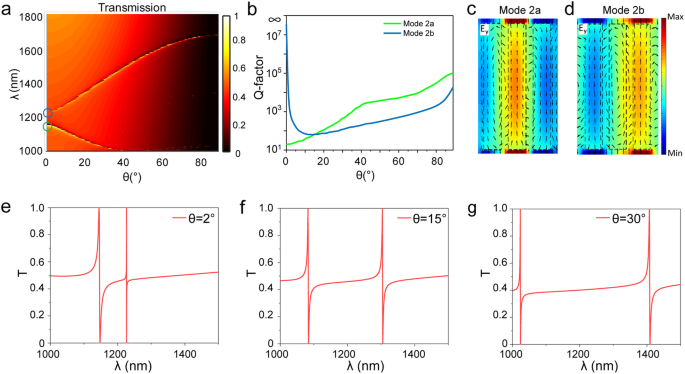

a Transmission spectra with respect to the angle and wavelength of incidence of the superlattice metasurface with the same parameters as Fig. 2a. b Dependence of the Q-factor and resonance wavelength of the quasi-BIC mode on the incident angle. c and d The electric near-field distribution at two different quasi-BICs resonances at the incident angle of 2°. e, f and g The simulated transmission spectra for varying incident angles 2°, 15°, and 30°, respectively

Full size image

Apart from the y-polarized incidence, now we show that the displacement-mediated quasi-BIC is also applicable for the x-polarized incidence (Fig. 4). Figure 4a shows the transmission and reflection spectra with parameter △d = − 70 nm, revealing that one of the double asymmetric Fano resonances can be completely confined and converted into BICs with infinite Q-factors (Fig. 4b). Resonance 3 refers to the quasi-BIC mediated by the parameter △d at 785 nm. Resonance 4 refers to another TD Fano resonance at 955 nm. The spectral curves in Fig. 4a correspond to the specified case indicated by the dashed line of Fig. 4b. The quasi-BIC near the wavelength of 785 nm can be obtained when the local displacement is tuned to be not equal to the global displacement(△d ≠ 0), that is, the simple lattice is transformed to a superlattice. When △d ≠ 0, a narrow dip arises in the transmission spectra, which means the excitation of quasi-BIC state, while the resonance position remains almost invariant. On the other hand, the spectra width of the TD Fano resonance near the wavelength of 955 nm is nearly steady with the change of △d. While the resonance position locates at the shortest wavelength at △d = 0, and shifts to longer wavelengths with the increasing of |△d|. More interestingly, we calculated extinction cross-section spectra by multipolar expansions for x-polarized normal incidences as shown in Fig. 4c and d. It reveals that the dominant modes of the shorter-wavelength resonance modes and long-wavelength resonance modes are identical for x- and y-polarizations, but the intensity distribution is slightly different, with different directions of the mode due to the different polarizations. Figure 4c shows that the quasi-BIC near 785 nm mediated by the parameter △d is dominated by the MD mode, coupled with smaller contributions from the EQ mode, which is similar to the modes of MD Fano resonance caused by the y-polarization in Fig. 2b. Then through the analysis of the electromagnetic field distribution in Fig. 4e, it is found that the mode is along the y-direction for the x-polarized incidence, while the mode in Fig. 2d is along the x-direction for the y-polarization. Different polarizations lead to different electromagnetic directions with identical modes. In addition, for the x-polarization (Fig. 4d), the Fano resonance near 955 nm is dominated by the TD mode, with smaller contributions from the MQ mode. Similarly, it can be seen from Figs. 2e and 4f, the electromagnetic modes of the two are almost identical, but the directions are perpendicular to each other in the xy plane. The variation of △d can change the resonance position of the TD mode, but cannot change the resonance position of the MD mode. To summarize, for x-polarized incidences, the resonance linewidth of the quasi-BIC dominated by the MD mode changes with the parameter △d, but the resonance position is basically unchanged, while the TD Fano resonance does not change the linewidth, but changes the position with the parameter △d. The quasi-BIC dominated by the MD mode under x-polarized incidences can not only be controlled by △d, but also by other parameters (px, py, wx, wy, h, θ0), as shown in Fig. S5 of Supplementary Information, which demonstrates large tunability of the x-polarized BIC modes.

Fig. 4
figure 4

Quasi-BIC modes for x-polarized normal incidences. a Transmission (red curve) and reflection (blue curve) spectra of the superlattice metasurface with the same parameters as Fig. 2a. b The transmission spectra with varying displacement △d. c and d Extinction cross-section spectra by multipolar expansion of the superlattice metasurface with different modes for x-polarized normal incidences. e and f The near-field distribution of resonant mode 3 at λ = 785 nm. g and h The near-field distribution of resonant mode 4 at λ = 955 nm

Full size image

Our structure not only satisfies the two-dimensional condition, but also can be simplified to one-dimensional model. It can be seen from Fig. S6 of Supplementary Information that when wy = py, the system is converted from two-dimensional to one-dimensional. In addition, our structure and design ideas are universal. We designed different types of structures, such as three identical cylinders, to control the linewidth. Similarly, when d = 0, the linewidth disappears and BIC appears, as shown in Fig. S7 of Supplementary Information. No matter the materials (silicon, titanium dioxide, silicon nitride, etc.), structures (square column, rectangular column, cylinder, elliptical column, etc.), quantities (double rod, three rod, four rod, etc., different number will affect the band) as long as the condition of spacing control is satisfied, the conversion between quasi BIC and BIC can be realized.

Conclusions

In summary, we have proposed an all-dielectric superlattice metasurface composed of multiple parallel silicon nanobeams that can extract high Q-factor quasi-BIC resonances by transferring the simple lattice to a superlattice through displacement tuning between nanobeams. The displacement-mediated BIC modes are originated from the resonance coupling between anti-crossing guided modes of the metasurface and thus are symmetry compatible. When the local displacement is tuned to be slightly different from the global displacement, the superlattice metasurface supports both the TD quasi-BIC for the y-polarization and the MD quasi-BIC for the x-polarization with extremely high Q-factors. In our system, the resonance caused by MD mode does not shift in spectrum with the change of the displacement difference parameter △d, while the resonance caused by TD mode significantly shift with the change of △d. Moreover, a quasi-BIC with the maximum linewidth determined by the △d emerges by changing the incident angle. Our design is universal. As long as the structure is symmetrical and the displacement is adjustable, the quasi BIC conversion can be realized. Due to the high Q-factor of the quasi-BIC with its accessibility and controllability, our results provide a unique opportunity for facilitating many applications requiring extremely high Q-factors including ultra-high figure of merit sensing performance, nonlinear photonic metasurface and high-performance lasing.

Availability of data and materials

The datasets and figures used and analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

BICs:

Bound states in the continuum

ED:

Electric dipole

MD:

Magnetic dipole

TD:

Toroidal dipole

EQ:

Electric quadrupole

MQ:

Magnetic quadrupole
