Nonlinear meta-optics towards applications
PhotoniX volume 2, Article number: 3 (2021)
Abstract
Nonlinear optical effects have enabled numerous applications such as laser frequency conversion, ultrafast electro-optical, and all-optical modulation. Both gaseous and bulk media have conventionally been used for free-space nonlinear optical applications, yet they often require complex phase-matching techniques for efficient operation and may have limited operation bandwidth due to the material absorption. In the last decade, meta-optics made of subwavelength antennas or films have emerged as novel nonlinear optical media that may potentially overcome certain limitations of bulk crystals. Due to resonant enhancements of the pump laser field as well as the use of materials with extreme nonlinearity such as epsilon-near-zero materials, meta-optics can achieve strong nonlinear responses with a subwavelength thickness. Here, we review several nonlinear optical applications, such as electric-field-induced second-harmonic generation, entangled photon pair generation, terahertz generation, all-optical modulation, and high-harmonic generation that we envision meta-optics may have distinct advantages over their bulk counterparts. We outline the challenges still faced by nonlinear meta-optics and point out some potential directions.
Introduction
The field of nonlinear optics started in the 1960s, shortly after the inception of lasers [1]. It studies the nonlinear light-matter interaction under strong pump light intensities [2, 3]. In terms of applications, to name a few, using nonlinear optical effects such as second-harmonic generation (SHG), third-harmonic generation (THG), difference-frequency generation (DFG), and high-harmonic generation (HHG), people have extended the operation band of coherent light sources spanning from the extreme ultraviolet (EUV) to the terahertz (THz) regime. In addition, nonlinear processes such as spontaneous parametric down-conversion (SPDC) and four-wave mixing (FWM) can be used to generate single photon or entangled photon pair for quantum optics applications.
For the variety of nonlinear optical applications, it is first critical to identify the proper material with a large effective nonlinear susceptibility, ultrafast response, as well as tunability, for efficient and on-demand harmonic generation, as well as all-optical modulation.
Furthermore, the nonlinear medium often needs to satisfy the phase-matching condition. Phase mismatch has been a long-standing issue faced by the nonlinear optics community. It is typically described by the momentum mismatch ∆k, which originates from the dispersion of the nonlinear materials and the consequent refractive index mismatch of the fundamental and harmonic light that propagates inside the nonlinear medium. If ∆k ≠ 0, the newly generated nonlinear signals become out-of-phase with earlier ones, and the phase difference depends on the nonlinear interaction length L. The nonlinear conversion efficiency reaches a local maximum when L is equal to the odd multiple of the coherence length \( {L}_c=\frac{\pi }{\Delta k} \) . Without proper phase-matching, the generated harmonic light may destructively interfere with each other, thus significantly lowering the nonlinear conversion efficiency. To date, the most commonly adopted phase-matching methods include birefringent phase-matching (BPM) and quasi-phase-matching (QPM) [4,5,6,7]. However, the BPM method can be limited by the finite birefringence of the nonlinear medium. It is only applicable for a certain incident angle. The QPM method requires a relatively complex fabrication process for nonlinear domain inversion. Both phase-matching techniques typically work only for a specific pump wavelength. This greatly limits the bandwidth of certain nonlinear optical devices. For example, for the THz wave generated by intra-pulse DFG or optical rectification, the bandwidth of the generated THz wave is largely limited by the phase-matching conditions [8]. For the generation of entangled photon pair in birefringent or periodically poled crystals, whether using SPDC or FWM, it is difficult to achieve the efficient emission of entangled photon pair over a large spectral bandwidth [9, 10].
The absorption of nonlinear optical materials at the fundamental and harmonic wavelengths is another common problem. For HHG in solids, as the photon energy in the ultraviolet band can be higher than the bandgap of most nonlinear optical materials, most of the generated signal is absorbed [11,12,13]. For THz waves generated by nonlinear processes, their bandwidth is also limited by the absorption caused by various vibrational and rotational modes of the nonlinear medium [14].
In recent years, there has been a growing interest to study nonlinear light-matter interaction in subwavelength-thick meta-optics [15,16,17,18,19,20,21,22,23,24,25,26,27]. The meta-structures typically support resonances that can significantly boost the pump or the harmonic light field. Furthermore, due to the subwavelength light-matter interaction length L in the meta-structures with L < Lc, the phase-matching requirements can be greatly alleviated, and the material absorption may be largely mitigated, as schematically shown in Fig. 1a. These combined effects may thus significantly boost the meta-structures’ nonlinear optical response in comparison with the same amount of materials without resonant enhancements.
Metasurfaces are composed of arrays of optical antennas with a subwavelength thickness [28,29,30]. The optical antennas can be metallic ones that support localized surface plasmon resonances or dielectric ones that support Mie resonances, thus significantly boosting the local field [31,32,33,34,35]. Apart from the field enhancements, metasurfaces can also allow flexible control of the amplitude, phase, and polarization of the light, leading to nonlinear wavefront control [36, 37].
Recently, there has also been a surge in the interest in the extreme nonlinear optical properties of subwavelength-thick thin films such as transparent conductive oxides (TCOs) or layered thin films that have an epsilon-near-zero (ENZ) response [38,39,40,41,42,43,44,45,46,47,48,49,50,51,52]. In the ENZ region where the real part of the permittivity of a material vanishes, according to the electromagnetic boundary condition, a strong field enhancement can be obtained inside the ENZ thin film with a subwavelength thickness, under the condition that the material loss is moderate [53,54,55]. Around the ENZ wavelength, the nonlinear refractive index \( {n}_2=\frac{3{\chi}^{(3)}}{4{n}_0\mathit{\operatorname{Re}}\left({n}_0\right){\varepsilon}_0c} \) can be extremely large as a result of the small Re(n0) [56,57,58]. Here, χ(3) is the third-order nonlinear susceptibility, n0 is the linear refractive index, ε0 is the vacuum permittivity, and c is the speed of light. Besides the large effective nonlinear susceptibility, ENZ thin films made of TCOs may have a subpicosecond response time for all-optical modulation, much faster than that of noble metals and semiconductors [59, 60].
To date, most work on nonlinear meta-optics focuses on frequency conversion-related applications, such as SHG and THG. We refer the readers to several excellent review papers on these topics [61,62,63,64,65,66,67,68,69]. Despite the large enhancement of optical nonlinearity, due to the short light-matter interaction length of meta-optics, their SHG and THG conversion efficiencies still need to be drastically improved to be comparable or even exceed that of the bulk crystals.

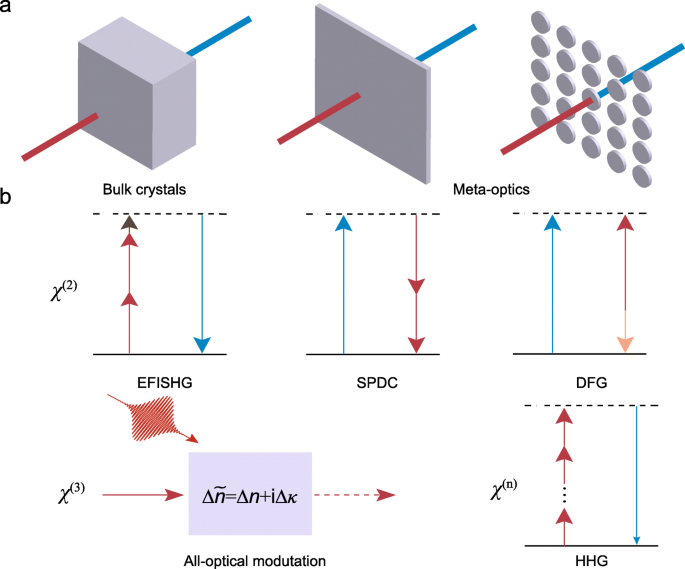

In this review, we focus on a variety of less-discussed nonlinear optical applications that are beyond the scope of SHG and THG, in which we find meta-optics may have unique advantages. We categorize these nonlinear optical applications based on their nonlinear order, as illustrated in Fig. 1b. For second-order nonlinear optical applications, we focus on electric-field-induced second-harmonic generation (EFISHG), entangled photon pair generation, and THz generation. For the third-order nonlinear meta-optics, we focus on ultrafast all-optical modulation, with specific attention on their applications in laser Q-switching and mode-locking. We then further discuss the use of meta-optics for applications in coherent extreme ultraviolet pulse generation by HHG. In each of these applications, we will review the respective merits and current limitations of meta-optics. We will also discuss potential methods for further improving the nonlinear conversion efficiency of meta-optics, and outline a few possible development directions.
Second-order optical nonlinearity
Second-order optical nonlinearity has been of vital importance for extending the operation band of coherent light sources with frequency conversion processes such as SHG, DFG, and SPDC. Meta-optics may provide a unique opportunity for the active control of second harmonic signals via EFISHG. As the reverse process of SHG, SPDC based on meta-optics may be useful for the multi-channel entangled photon pair generation. Meta-optics can be also used as broadband nonlinear THz sources through the intra-pulse DFG process.
Electric-field-induced second-harmonic generation
SHG is prohibited in bulk crystals with inversion symmetry. Such a requirement can be alleviated in the EFISHG process, as it is an effective second-order optical process with third-order nonlinear susceptibility [70]. The nonlinear polarization can be described by P(2ω) ∝ χ(3)EdcEωEω, where P(2ω) is the nonlinear polarization at frequency 2ω, Edc and Eω are the static electric field and the optical field at the pump frequency ω. The effective second-order susceptibility \( {\chi}_{\mathrm{eff}}^{(2)} \) can be described by \( {\chi}_{\mathrm{eff}}^{(2)}={\chi}^{(3)}{E}_{\mathrm{dc}} \). For conventional bulk crystals, a high voltage is required to obtain a large Edc, and consequently a large \( {\chi}_{\mathrm{eff}}^{(2)} \). On the other hand, meta-structures can greatly reduce the voltage requirement due to their subwavelength thickness. For example, an electric-field-induced nonlinear modulation at the applied voltage of 10 V is obtained in a plasmonic metasurface, as shown in Fig. 2a [71]. The metasurface consisting of a periodic Au hole array and a silver film, separated by a 100-nm-thick Al2O3 layer, is designed to have a large resonantly enhanced electric field at around 810 nm. By tuning the applied voltage from 0 to 10 V, the normalized second harmonic signal shows a linear dependence with the applied voltage, with a modulation depth up to 9%. Here, the modulation depth is defined as ∆I2ω/I2ω where ∆I2ω is the change of second-harmonic intensity with an applied electric field, and I2ω is the minimum second-harmonic intensity. A large modulation depth of the second-harmonic signal may benefit applications such as signal processing. Later, Lee et al. demonstrate EFISHG in a silicon-based metasurface [72]. The schematics of the metasurface unit cell as well as the experimental result, are shown in Fig. 2b. The metasurface consists of silicon grating with 190-nm-thickness and standard Cr/Au electrode. The modulation depth reaches up to 12% at the metasurface’s magnetic Mie resonance wavelength of 785 nm, with an applied voltage of 10 V. This work expands the application of silicon-based second-order nonlinear optical devices and reveals a way for the active modulation of the nonlinear signal with a subwavelength spatial resolution. Even more efficient modulation may be obtained in unstructured metafilms. Chen et al. demonstrate electrically controlled SHG from a 100-nm-thick polymer thin film sandwiched between a bottom ITO layer and a top aluminum layer, as shown in Fig. 2c [73]. The polymer is a blue-emitting material with a bandgap energy of 2.95 eV and has a large value of χ(3) at near-infrared wavelengths [74]. It is found that there is a resonance enhancement of nonlinearity when the energy of second-harmonic light is close to the absorption edge of the polymer. With the enhancement from the band-edge effect, a giant modulation depth of ~ 1899% is obtained at a pump wavelength of 840 nm (the SHG photon energy is 3.18 eV, close to the material bandgap), with an applied voltage of only 6 V. This extremely large modulation depth results from the minimum value of SHG intensity at an applied voltage of 1.5 V due to the contribution of the surface χ(2).

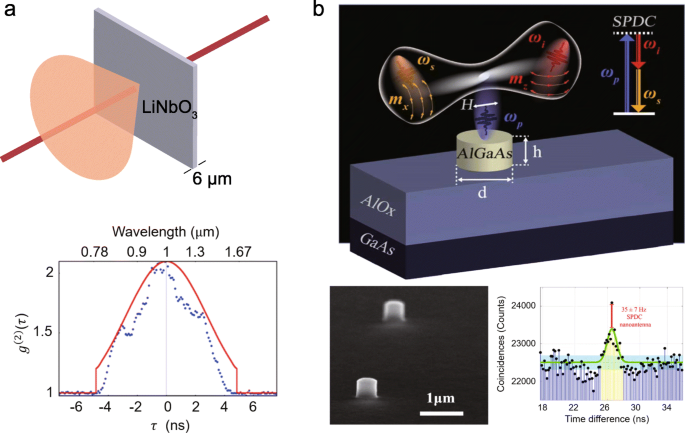

Entangled photon pair generation
The generation of entangled photon pair is a fundamental building block for the quantum communication network [75,76,77,78]. SPDC is the most commonly used method for the generation of entangled photon pair. However, the current SPDC sources are used under phase-matching conditions such as β-barium borate [79, 80], and periodically poled KTiOPO4 [81, 82], which limits the spectral correlation width to a few nanometers [82]. The efficient generation of entangled photon pair in a broad spectral width may be desired in future high-capacity quantum communication networks.
Due to the subwavelength thickness of meta-structures, the allowed ∆k may be extremely large, which results in the emission of photon pair with a broad spectrum. The first demonstration of SPDC in a thin film with μm scale thickness is reported by Okoth et al. [83]. As shown in Fig. 3a, SPDC with about 500 nm spectral width is obtained in a 6-μm-thick LiNbO3 layer. The authors further predict that micro- or nano-scale SPDC sources may promote high-order nonlinear processes such as the generation of the three-photon state which are challenging in bulk nonlinear crystals due to the large refractive index difference between the pump and the signal light. In 2019, Marino et al. report an SPDC source from an AlGaAs disk nanoantenna which supports Mie resonances at both the pump and the signal/idler wavelengths, as shown in Fig. 3b [84]. Due to the relatively slow generation rate of SPDC, the polarization correspondence is first investigated through the sum-frequency generation (SFG) process according to the SFG-SPDC correspondence [85, 86]. The SPDC measurement is then demonstrated after optimizing the experimental parameters with the polarization of horizontal-polarized pump beam and vertically-polarized bi-photon beams. A photon-pair generation rate of up to 35 Hz is obtained with a pump laser wavelength of 785 nm and with an average pump power of 2 mW. This rate is about one order of magnitude higher than conventional photon pair sources based on bulk crystals, when normalized to the pump energy in the nanoantenna. The bandwidth of the generated photon pair spectrum is expected to be about 150 nm owing to the use of the relatively broad magnetic-dipole resonance. The phase-mismatch-free photon pair sources based on meta-optics with a broad spectral correlation width may provide a new avenue for high-capacity multi-channel quantum entanglement and may be a suitable platform to observe higher-order parametric down-conversion effects. Currently, the efficiency of SPDC using meta-optics still needs to be further improved, for example, by using materials with higher nonlinear susceptibility and resonant structures with stronger field enhancements.
Broadband THz wave generation
THz waves, with a frequency ranging from 0.1–10 THz, have been found attractive for a variety of applications including wireless communication [87, 88], imaging [89,90,91], security [92], and sensing [93, 94]. However, the lack of THz sources has largely hindered its development. Particularly, for THz spectroscopy applications, an ultra-broadband THz source can be highly desired. Among other methods such as photoconductive switching, broadband THz source has been routinely generated from intra-pulse DFG or optical rectification by impinging a femtosecond laser onto a nonlinear crystal with second-order nonlinearity. For a transform-limited Gaussian pump pulse, the bandwidth of the emitted THz signal ∆v is partly determined by the pulse duration of the pump laser τp as ∆v = 0.44/τp. Furthermore, the phase mismatch of the nonlinear crystal poses a major limitation of the generated THz bandwidth [95, 96]. Most materials with large second-order nonlinearity may have a drastically different refractive index at the optical and THz spectral domain. For example, LiNbO3 has a refractive index of 2.25 at the wavelength of 800 nm, and a refractive index of 4.90 at the frequency of 1 THz. Therefore, to achieve phase-matching, complicated techniques such as tilted pulse front [97, 98] need to be applied. Other nonlinear materials with smaller second-order nonlinear susceptibility of χ(2), such as ZnTe and GaP, may have a smaller refractive index difference at the optical and THz regime and can be phase-matched at a given combination of the pump (infrared) and the parametric (THz) wavelength. However, the material dispersion still restricts their generated THz bandwidth typically below 3 THz when the crystal thickness is above 1 mm.
Nonlinear meta-optics may be a potential solution to the THz bandwidth problem since meta-structures can be free from the phase-matching requirement. In 2014, Luo et al. reported a metasurface-based broadband THz source [99]. The metasurface, composed of an array of split-ring resonator (SRR) on the ITO glass substrate, is shown in Fig. 4a. The SRR supports a magnetic-dipole resonance at the wavelength of 1500 nm. By pumping it with a femtosecond laser with a central wavelength at 1500 nm, a broadband THz signal, with frequency ranging from 0.1–4 THz, is generated. The origin of THz emission from the metasurface is attributed to intraband DFG induced by the broken symmetry of the second-order nonlinear current distribution. The broad THz bandwidth is only limited by the pulse duration of the pump laser (140 fs) and may be further extended. More impressively, the THz conversion efficiency of the metasurface is found to be comparable with a bulk, 1-mm-thick ZnTe crystal with identical pump laser parameters, despite the thickness of the metasurface is only on the order of tens of nanometers. Later, a more efficient broadband THz emission from a dark-mode-assisted metasurface is theoretically proposed, with 2 order of magnitude efficiency enhancement in comparison with conventional SRR-based metasurfaces [101]. The metasurface consists of two gold SRRs with identical orientation, which are located asymmetrically on two sides of a thin silicon plate and blocked by a gold wall periodically. The designed structure has a largely reduced radiative damping, thus has a much larger local field enhancement, resulting in a further improved THz generation efficiency. In 2019, spatiotemporally tailored terahertz emission is experimentally demonstrated in a metasurface. By periodically changing the SRR’s orientation, as shown in Fig. 4b, a single-cycle Hermite-Gauss wavepacket is generated [100]. More recently, a broadband THz source as a result of surface optical rectification in a 19 nm-thick ITO ultrathin film has been demonstrated, as shown in Fig. 4c [45]. With the large field enhancement caused by the ENZ effect, THz generation is greatly boosted when operating near its ENZ wavelength. The bandwidth of the THz generation can be over 3 THz, only limited by the pulse duration of the pump laser and the phase-matching requirement of the ZnTe detection crystal. In comparison with bulk nonlinear crystals, nonlinear meta-structures may generate THz waves with broader bandwidth and designer wavefront, with a conversion efficiency not too far behind.
Third-order optical nonlinearity
THG and FWM, the main third-order optical nonlinear processes, are commonly used for applications such as frequency conversion in laser systems, and frequency comb generation [102, 103]. The change of nonlinear refraction index caused by self- or cross-phase modulation is the basis of all-optical modulation. Meta-structures with resonances, owning to their ultrafast modulation speed and large modulation depth, can be particularly suitable for all-optical modulation. Here we focus the discussion on their use for applications in laser Q-switching and mode-locking.

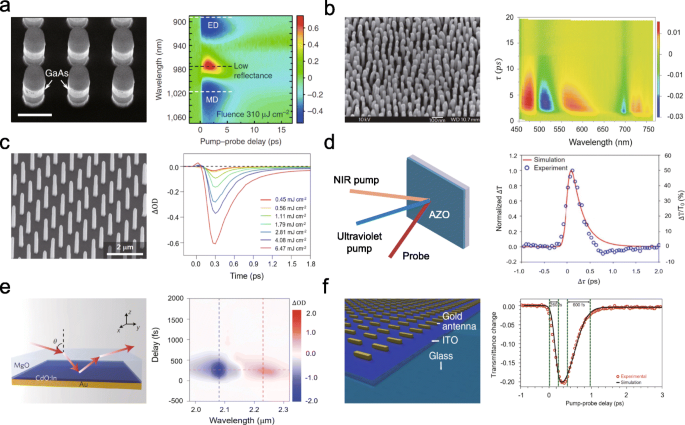

All-optical modulation
All-optical modulation has recently regained a lot of interest for applications in high-speed data processing and neuromorphic computing [104, 105]. Under the stimulus of the pump light, the refractive index n depend on the pump intensity I as n = n0 + n2I. The induced refractive-index change \( \Delta \overset{\sim }{n}={n}_2I \) can modulate the phase, intensity, and polarization of the signal light. For most nonlinear materials, the \( \Delta \overset{\sim }{n\ } \) is small, leading to a limited device modulation depth. Meta-optics with strong resonances can result in a large electric field enhancement and a consequent large effective \( \Delta \overset{\sim }{n} \). Therefore, a large modulation depth under low energy consumption may be obtained. Furthermore, the demand for ultrafast modulation requires a short recovery time of \( \Delta \overset{\sim }{n} \).
For most semiconductor-based all-optical modulation devices, \( \Delta \overset{\sim }{n} \) results from the electron excitation from the valence band to the conduction band. The slow recombination rate of electron-hole pairs often limits the modulation time to tens of picoseconds [105,106,107]. As a recent example, a large reflection modulation at picosecond timescale was demonstrated in a GaAs-based dielectric metasurface, as shown in Fig. 5a [108]. The structure consisting of GaAs nanopillars is designed to support Mie resonance. Under a low pump fluence of 310 uJ/cm2, a relative modulation depth from − 50% to 73% is observed and an absolute modulation of up to 0.35 is obtained at the magnetic-dipole resonance. For metal and TCOs, the all-optical modulation can be based on both interband and intraband excitation of free carriers. The response time of the intraband excitation depends on the energy exchange rate between electrons and phonons [114]. The modulation time of metal is typically on the order of several picoseconds [115, 116]. For example, a transmission modulation with picosecond response time is demonstrated in the plasmonic metasurface consisting of gold nanorods, as shown in Fig. 5b [109]. Using the nonlocality to enhance the nonlinearity, 80% transmission change is obtained under a pump fluence of 7 mJ/cm2. Later, Ren et al. report a 40% relative transmission modulation in a gold metasurface made of an asymmetric SRR array [117]. With the local field enhancement supported by the plasmonic closed mode, the required pump fluences of 270 μJ/cm2 are reduced by about one order of magnitude in comparison with that in gold nanorods. Utilizing the much faster two-photon absorption process, the modulation time can be shorter than 100 fs.
Contrary to plasmonic metasurfaces, TCOs have a smaller electron heat capacity which allows a fast energy exchange rate between electrons and phonons, leading to a modulation time of hundreds of femtoseconds. In 2016, an absolute transmission control at a subpicosecond timescale in the ITO metasurface is reported by Guo et al. (Fig. 5c) [110]. The ITO nanorods array, which supports localized surface plasmon resonances, enables an absolute modulation depth over 20% in both near-infrared and mid-infrared spectral range. In addition to metasurfaces, unstructured TCOs films can also be used for ultrafast all-optical modulation with a large modulation depth. For example, an ultrafast reflectance modulation of up to 40% is reported in AZO metafilms [118]. Due to the defect-enhanced recombination process caused by the low-temperature fabrication procedure, the modulation time is below 1 ps. Later, Clerici et al. further extended the functionality of AZO by combining the intraband excitation and interband excitation via a two-color laser field [111]. As shown in Fig. 5d, the subpicosecond modulation is observed. This work shows that AZO metafilm can dynamically control the modulation bandwidth and the transmitted probe wavelength by the combination of the two excitation effects. The all-optical modulation depth can be further improved by using ENZ materials with higher electron mobility and by using more judiciously engineered optical resonances. As shown in Fig. 5e, Yang et al. report femtosecond optical polarization switching in indium-doped CdO-based heterostructures [112]. Due to the large electron mobility and low optical loss, a high Q-factor Berreman-type absorber is designed at the ENZ wavelength. Under a resonant excitation, an absolute reflectance modulation over 80% and a polarization modulation with an extinction ratio of 91 are obtained within 800 fs. The large nonlinear responses of TCOs typically only occur in a relatively narrow bandwidth. The combination of ENZ materials and metasurfaces can overcome this constraint. In 2018, a coupled structure combining ITO film to plasmonic metasurfaces is reported by Alam et al. [113]. As shown in Fig. 5f, the strong coupling between the localized surface plasmon resonance and the ENZ mode provides a large nonlinear refractive index change of ±2.5 over a broad spectral range of 200 nm with subpicosecond recovery time. Therefore, meta-optics, especially those based on TCOs materials, not only provide a large modulation depth but also exhibit faster modulation speed, with potential applications for low-power, ultrafast all-optical modulation in high-density nonlinear nanophotonic devices.

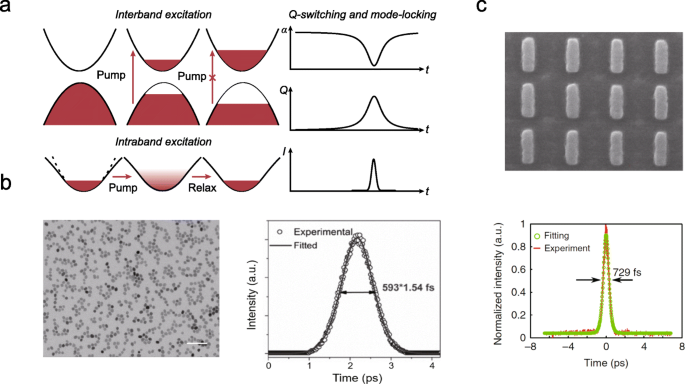

Laser Q-switching and mode-locking
All-optical modulation and saturable absorption are third-order nonlinear effects widely used for laser Q-switching and passive mode-locking. The two typical processes involved in all-optical modulation and saturable absorption are shown in Fig. 6a. Saturable absorption describes the effect that the absorption coefficient α of the material given by \( \alpha =\frac{\alpha_0}{1+I/{I}_s} \). Here, α0 is the linear absorption coefficient, and Is is the saturation intensity. Saturable absorption typically results from the imaginary part of χ(3) and can exist in most light-absorbing materials. The saturable absorption performance of a material is usually determined by the nonlinear absorption coefficient \( \beta =\frac{\alpha -{\alpha}_0}{I}=\frac{6\omega }{\varepsilon_0{c}^2{n}_0^2}\mathit{\operatorname{Im}}\left({\chi}^{(3)}\right) \). Conventional saturable absorbers are made of semiconductor materials [121,122,123,124,125], although they may suffer from the relatively long response time of tens of picoseconds limited by the interband electron-hole recombination process. In recent years, there has been a growing interest to use two-dimensional materials such as graphene [126,127,128,129], MoS2 [130,131,132], and black phosphorus [133,134,135] as saturable absorbers, partly due to their ultrafast modulation time of up to a few hundred femtoseconds. However, the relatively low damage threshold and low modulation depth may be a limiting factor for their practical applications. Meta-optics based on metals and TCOs may provide an alternative approach for laser Q-switching and mode-locking, due to the ultrafast modulation time on the picosecond or sub-picosecond time scale, as well as the large modulation depth enhanced by resonances. Using ITO nanocrystals as the saturable absorber, a laser pulse with 593 fs temporal width can be obtained (Fig. 6b) [119]. The ITO nanocrystals exhibit response time within 450 fs and modulation depth up to 160% in the ENZ region. More recently, a demonstration of laser mode-locking in saturable plasmonic metasurfaces is reported [120]. As shown in Fig. 6c, a 729 fs laser pulse is generated in a fiber laser cavity with plasmonic metasurface as the saturable absorber when pumping at a resonant wavelength of 1550 nm. The modulation depth of 60% is far greater than that of other saturable absorbers, yet the exact mechanism of such a large modulation depth has not been reported. Furthermore, compared with the conventional semiconductor saturable absorber, plasmonic and ENZ materials can operate in a wide frequency region, with the relatively easy tuning of their resonance wavelengths by varying the cavity design or the carrier density.
Higher-order optical nonlinearity
HHG is a high-order nonlinear optical process that is often nonperturbative and occurs when the laser field strength is comparable with the atomic bonding strength [3, 136,137,138]. HHG forms the basis of the generation of coherent soft X-ray and EUV pulses and has been widely used for time-resolved photon-electron spectroscopy and isolated attosecond pulse generation [139,140,141,142]. HHG is conventionally observed in rare gas atoms [143,144,145], with relatively low efficiency. In 2008, leveraging the local field enhancement induced by the plasmonic resonance of a bowtie antenna array, Kim et al. reported the enhanced HHG in argon gas in the vicinity of the bowtie antenna [146]. In 2011, HHG is first observed in a solid-state ZnO crystal [147]. Bulk solids typically have a higher efficiency than gases because of their higher atom density [148, 149]. However, owing to the strong absorption for the generated signals whose photon energy is higher than the bandgap of nonlinear materials, the efficiency of HHG in solid is still limited, and a high laser pump fluence is required.
Meta-optics with subwavelength propagation length can reduce the pump threshold with the resonantly-enhanced pump laser field. In 2016, Han et al. utilize the extreme light confinement of a metal cone structure to enhance HHG from sapphire, as shown in Fig. 7a [150]. With the field enhancement supported by surface plasmon polaritons, high harmonics up to the 13th order are generated when pumped with a 75 MHz laser oscillator of 0.1 TW/cm2 intensities. Later, HHG from a plasmonic metasurface is reported [151]. The structure composed of an array of Au antenna on a 500-nm-thick crystalline silicon substrate is shown in Fig. 7b. When the polarization of the pump laser is parallel to the long axis of the antenna, with the consequent excitation of the electric-dipole resonance of the antenna, the intensities of generated high harmonics are enhanced by 5 to 10 times. However, the small overlap between the electric field and nonlinear media may limit the overall enhancement of HHG. Moreover, metallic antennas typically have a low laser damage threshold. Low-loss dielectric metasurfaces supporting Mie resonance with a larger field confinement volume may benefit HHG with higher generation efficiency and laser damage. In 2018, enhanced nonperturbative HHG from silicon metasurfaces is reported by Liu et al., as shown in Fig. 7c [152]. With the high-Q Fano resonance, the harmonic emission can be enhanced by two orders of magnitude in comparison with a bare silicon film of the same thickness. The odd harmonics from the 5th to 11th order are observed when the laser polarization is set to excite the Fano resonance. At an excitation intensity of 0.071 TW/cm2, the 5th harmonic is enhanced over 30 times and the conversion efficiency is about 5 × 10− 9. More recently, Yang et al. report the HHG from indium-doped CdO when pumped at its ENZ wavelength, as shown in Fig. 7d [153]. Under the p-polarized illumination at an incident angle of 50°, the high-harmonic up to the 9th order (corresponding to the wavelength of 250 nm) is observed. The required peak pump intensity of 14.1 GW/cm2 is much weaker than a peak pump intensity on the order of 1 TW/cm2 that is typically required for observing HHG in bulk crystals. While the diffraction of the radiated high harmonics may make the collection of high harmonic signals from metasurfaces difficult and inefficient, a carefully engineered metasurface can be used to tailor the wavefront of generated high-harmonic signals. In 2018, Sivis et al. demonstrated controlled high-harmonic emission patterns from ZnO or silicon metasurfaces with a Fresnel zone plate pattern, as shown in Fig. 7e [154]. Compared with bulk crystals, meta-structures can be good candidates as HHG sources with low pump threshold and controllable wavefront. Currently, the efficiency and cut-off frequency of HHG from solids are limited by a low damage threshold. The use of wide bandgap materials to construct metasurfaces may further improve their damage threshold.
Conclusions
Here, we have reviewed the use of meta-optics for several nonlinear optical applications. To summarize, we have found that subwavelength nonlinear media may be especially useful when the following merits are highly desired:
-
1).
Broad spectral bandwidth. While phase-matching is a pre-requisite for bulk nonlinear crystals, typical phase-matching techniques such as BPM and QPM can only work at one specific wavelength at a time. On the contrary, for meta-optics, their subwavelength thickness causes them to be free from the phase-matching requirement, allowing one to potentially sacrifice some efficiency to gain the bandwidth (Fig. 8a). This feature may be particularly useful for broadband THz generation and entangled photon pair generation.
-
2).
Ultrafast response. The electron-hole recombination time of semiconductors is generally greater than tens of picoseconds. On the other hand, intraband transition in metals and TCOs typically take place on a time scale of several picoseconds and a few hundred femtoseconds, respectively, therefore they can be particularly suitable for ultrafast all-optical switching at a THz rate (Fig. 8b). Combining the ultrafast material dynamics with tailored resonances for an enhanced modulation depth, nonlinear meta-optics may find applications in laser Q-switching and mode-locking. Additionally, the ultrafast saturable absorber may be useful for nonlinear activation in the all-optical neuromorphic circuit.
-
3).
Wavefront control. While the wavefront of generated nonlinear signals from bulk crystals is typically uniform, metasurfaces with tailored spatial antenna arrangement can tune the polarization, phase, and amplitude of light at the subwavelength spatial resolution, thus achieving wavefront control of nonlinear signals (Fig. 8c). Electro-optical modulation, for example, based on metal-insulator-metal metasurfaces may have potential applications in beam steering and holograph.
-
4).
Operation in the typically absorbing band. The absorption of nonlinear optical materials induced by electronic or phononic transitions is a major problem that limits the operation band for bulk nonlinear crystals. Meta-structures, with their subwavelength thickness, may greatly alleviate the issue, allowing efficient HHG and THz generation in the typically absorbing ultra-short (EUV or soft X-ray) or ultra-long (mid-infrared and THz) wavelength bands (Fig. 8d).
Notably, despite some resonant enhancements, the nonlinear conversion efficiency of many meta-optical devices is still rather low, mostly due to the subwavelength nonlinear light-matter interaction length, which is still the major limitation towards practical applications. Here, we outline several routes to enhance the nonlinear conversion efficiency, as schematically shown in Fig. 8e. Firstly, one can explore options to integrate materials with a large intrinsic nonlinear susceptibility for use in meta-optics. For instance, LiNbO3 is one of the most widely used nonlinear materials with a large intrinsic nonlinear susceptibility, a low optical loss over a wide bandwidth, as well as a relatively high laser damage threshold. In recent years, we have seen the rapid progress of lithium niobate on insulator technology [155,156,157,158,159,160,161], which may enable the development of nonlinear meta-optics based on LiNbO3 with largely improved efficiency. Another strategy to enhance the nonlinear conversion efficiency is to design the resonator to support extremely high-Q resonances, for example, by leveraging the concept of Fano resonances and bound states in the continuum [162,163,164]. Finally, the meta-structures may be designed to be resonant at both the pump and signal wavelength, with good modal overlap. This can be achieved by designing the meta-structures via inverse design techniques such as the adjoint method and deep learning [165,166,167,168]. Finally, the advancement of novel fabrication techniques may inspire a more complex design of meta-optics. For instance, using resonant plasmonic antennas to enhance the local field, the femtosecond laser can lead to subwavelength ablation and reshaping, resulting in a self-organized meta-optic structure with high spatial resolution [169, 170]. The recent development of femtosecond laser-based three-dimensional (3D) fabrication technology has allowed sub-20-nm spatial resolution [171], which provides additional degrees of freedom to create 3D meta-structures based on a variety of material platforms towards nonlinear optics applications [172, 173]. This technology has recently been used to fabricate nonlinear photonic crystals allowing phase-matching over all three dimensions [174].
Nonlinear meta-optics is still at an early stage of development. With its unique merits not readily available in conventional bulk crystals, as well as the still largely unexplored physics, materials, and optical cavity designs, we envision many more exciting results towards practical applications in the imminent future.
Availability of data and materials
Data sharing is not applicable to this article as no new data were created or analysed in this study.
Abbreviations
- SHG:
-
Second-harmonic generation
- THG:
-
Third-harmonic generation
- DFG:
-
Difference-frequency generation
- HHG:
-
High-harmonic generation
- EUV:
-
Extreme ultraviolet
- THz:
-
Terahertz
- SPDC:
-
Spontaneous parametric down-conversion
- FWM:
-
Four-wave mixing
- BPM:
-
Birefringent phase-matching
- QPM:
-
Quasi-phase-matching
- TCOs:
-
Transparent conductive oxides
- ENZ:
-
Epsilon-near-zero
- EFISHG:
-
Electric-field-induced second-harmonic generation
- SEM:
-
Scanning electron microscopy
- SFG:
-
Sum-frequency generation
- SRR:
-
Split-ring resonators
- 3D:
-
Three-dimensional
