Recent progress in electro-optic polymer for ultra-fast communication

Abstract

The rocketed development concerning electro-optic polymers fundamentally motivated by its pragmatic application in envisioning second-order nonlinear optics and waveguiding are cardinal. Modern synthetic strategies consigned an outstanding optical quality amorphous polymers with enhanced properties. Documented data revealed a huge progress in understanding their implementation, however challenges still exist regarding their temporal stabilities etc. This review delivers a brief investigation of nonlinear optical (NLO) polymer materials demonstrated over previous decades. Besides, their categorical explanation along with their structural architecting via engineering polymeric backbone or functionalization of the molecular entities have been reviewed. Correspondingly, their temporal and thermal stabilities accompanied by NLO characteristics features are also discussed.

Introduction

Information industry has drastically changed the people’s lives attributed to the emergence of new technologies, such as: 5G, optical computing, internet, sensing, artificial intelligence and all sort of multimedia/data/signal processing [1,2,3]. To support this change, the optoelectronic device industry encounters unprecedented challenges and as well as opportunities [4, 5]. For high-speed communication, the obstacle is to transform electronic signals in to optical signals with rapid pace. Developing superior electro-optic devices fundamentally acquire integrant such as efficient electro-optic (EO) modulator, which encodes electrical signals into optical domain, allowing the transmission of hefty information bandwidth photons while isolating them of electrical interference. The electro-optical modulator is based on the optical signal modulation which is an indispensable device in optical communication. In order to meet the rapid conversion of electro-optical signals, the requirements of attaining electro-optical modulators are getting higher and higher. The explicit requirements are as follows: 1) Low drive voltage; 2) Low optical loss; 3) Low energy consumption; 4) High bandwidth, etc. [6, 7].

As researcher attributed more and more attentions towards modulator development the EO materials hold the essential part of the modulator [8, 9]. However, the currently commercialized EO material is the lithium niobate crystal, while having an EO coefficient of merely 30 pm/V [10]. Therefore, the EO modulators processed with lithium niobate as the core material revealed complications such as high driving voltage and high energy consumption. Not only that, when the modulation frequency reaches the modulation limitation, the performance of EO modulator will drop rapidly. In order to solve the problems of high energy consumption and modulation limit, the organic EO materials have received an extensive attention from the scientific community due to their excellent performance.

Globally, the scientific community is indulged in developing novel EO organics, encountering prerequisites such as elevated nonlinear and quick response, outstanding optical transparency etc. [11,12,13]. While exploiting numerous material systems, the EO-based organics have been recognized as an auspicious system in accomplishing requisites desired for developing EO technologies. The EO organics are intrinsically advantageous over its counter inorganic EO crystals in the many aspects: 1) enormous Pockels coefficients (r33 standards greater than 1000 pm/V) [14]; 2) high-speed EO response (less than 10 femtoseconds); 3) comparatively smaller dielectric constants (3 to 4) in limited range around 250 GHz (GHz), and minute dielectric loss tangent (10− 4) [6]; 4) these organics display great compatibility in directing materials and substrates in systems; 5) complex architectures and arrays can be accomplished because of their extraordinary solution processability; 6) intrinsic radiation hardness and wide operation temperatures for space applications (Fig. 1) [15]. The EO organic materials with such appealing characteristics are cardinal in addressing EO devices undertaking a broad spectrum, while establishing adequate modulation via low energy and small-footprint devices [6].

Fig. 1
figure 1

The advantages and applications of EO polymer modulator

In constructing EO polymers, modern synthetic tools have transformed molecular engineering approaches significantly by involving a couple of strategies: firstly, the NLO-based organic materials rational designing followed by efficient architectural modification /functionalization, resulting in tuning the molecular (microscopic) hyperpolarizabilities; secondly, constructing distinct molecular entities with enhanced hyperpolarizabilities of collective (macroscopic) assemblies [16,17,18]. Convincingly, engineering molecular organics via modern synthetic and sophisticated tools along with precision of device fabrication, devices with excellent performances can be achieved [19, 20]. Additionally, confined state of NLO-based nanofabricated organics in a device disclose contrast and size dependent optical characteristics to that of conventional device architectures. Therefore, designing of novel NLO materials is cardinal to encounter the desired photonic features compatible with that of cutting-edge technologies. Undeniably, polymeric materials are the backbone of such tremendous technologies wing attributed to their attractive optical properties and ease of modification along with physical and chemical stabilities [21, 22]. Besides, characteristically such polymers are isotropic with amorphous and visible nature, providing fantastic optical standard with minimal optical propagation losses. Engineering novel photonic materials with versatile device architectures needs to be explored in realizing widespread commercial application. Abundant literatures regarding NLO organics have been documented, demonstrating large EO coefficients and enduring stabilities as well [23,24,25].

In this review we summarized the recent developments in organic second order NLO polymeric materials. Herein, we highlighted the most recent and significant developments in the dynamic arena of NLO organics along with their future perspectives. Addressing a brief introduction along with cardinal features required for designing of NLO materials in device application, followed by categorical classification and reviewing documented experimental results presented in well reputed journals and finally conclusion with future perspective is given.

Functionalized EO polymers

Common methodology designed for obtaining good optical quality, with large second-order NLO susceptibility thin films is the functionalization of amorphous polymers with molecules exhibiting large first hyperpolarizability [26]. The stability of the material directly affects the lifetime of the EO device. For organic second-order NLO materials, stability includes not only the chemical stability of the core chromophore but also the stability in the subsequent conversion process, including thermal and long-term stability.

Guest-host doped system

The guest-host system is the straightforward approach in implementing materials on to the devices. The chromophores are simply dissolved followed by doping in to the polymer matrix functioning as guest. It is necessary to figure out an identical solvent for the individual constituents. The prepared solution can be directly implemented in the fabrication of thin films and is tailed by EO effect via electric field poling. Commercially accessible an optical quality polymeric materials including polyacrylates and polycarbonates and their derivatization in to amorphous polymers can function as host materials [27,28,29,30]. However, challenges still exist to optimize the nonlinear response of molecularly engineered NLO materials (chromophores and polymers). This system provides convenience in studying the process of chromophore poling and its corresponding orientation behavior while varying the chromophore loading densities.

Selecting polymers functioning as host materials for chromophores, two factors are cardinal, the amorphous state and the glass transition temperature. A decrease in host polymer glass transition temperature (Tg) will ultimately fluctuate the stability concerning molecular orientation, consequently reducing the EO movement. While, elevation of Tg will influence the stability of the chromophore which might lead to its decomposition during poling process heating. An increase in Tg of the host polymer is directly proportional to the chromophore loading density (become larger), thus, enhancing NLO materials EO activity. Besides, electric field-induced acentric order of chromophores in poled polymers declines with the passage of time. The temporal alignment stability of guest-host polymer system can potentially be enhanced via elevating poling temperatures (or Tg of host polymeric materials) in comparison to the device operational temperatures. The polymeric materials having elevated Tg performing as hosts in a composite with chromophores is advantageous (chromophores contributing as plasticizers eventually lowering the Tg of the composite). However, employing elevated-temperature poling process, highly efficient organics carrying extended π-conjugated backbones exposes itself to thermal decomposition, thus limiting the choice of high Tg polymeric materials. Engineering EO polymers for potential applications, material parameters including optical absorption, scattering loss, and photochemical steadiness should be taken in consideration.

A number of polymers such as polyimide, poly-methyl methacrylate and amorphous polycarbonate (host-polymers) made it to extensively used polymeric materials in guest-host composites because of their enhanced temporal stabilities. A novel polymer material entitled as poly (NDI) (Fig. 2) with glass transition temperature of about 210 °C was designed and synthesized [31]. The films carried an EO polymer involving C1 and C2 in the composite as guest chromophores. The experimental glass transition temperature of the polymer composite (after poling) was at 188 °C with EO coefficient around 93 pm/V, subsequently treated at 85 °C for a duration 500 h, the initial EO coefficient value was maintained at above 70%. The host-guest composite system (with EO material) is the straightforward approach in implementing materials with highest quality and is most widely used in poling of polymeric materials. However, challenges still exist for practical applications such as, lack of true chemical bonding between the chromophore and its respective polymer unit, because of less thermal steadiness of chromophore an exposure to orientation relaxation ultimately reduces the EO activity, and lastly process of film formation process can lead to the phase separation. Considering aforementioned challenges, Hydrogen bonding was a new methodology to enhance the long-term stabilities of the host-guest system [32]. Researchers constructed HPB2 (composite contained a blend of PMMA-co-PHPM and P4VP) (Fig. 3) polymeric network connected through hydrogen bonding, the then fabricated EO thin-film composition contained HPB2/20% DFCT-1 (Tg = 150 °C), longtermly stable while maintained low EO coefficient of merely 30 pm/V). The authors tested the thermal stability of the composite by exposing the material to 85 °C for a period of 250 h, they revealed that 85% of the initial EO coefficient can be retained. In comparison to the values documented for amorphous polycarbonate (APC) material (retaining merely 75% of the initial EO coefficient of APC/10% DFTC-1), this system ensured its potential for future application.

Fig. 2
figure 2

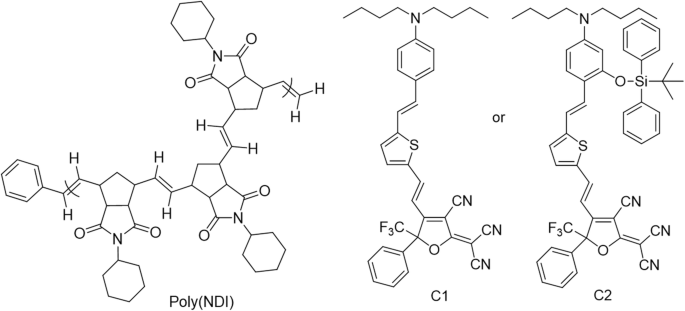

Host-guest EO material poly(NDI)/C1 and C2

Fig. 3
figure 3

Polymeric system with doping by means of hydrogen bond network and DFTC-1

Such hydrogen bonded (guest-host composite) system is advantageous in a couple of ways: first, the loading density of the chromophores in EO film can regulate well in the presence of extensive hydrogen bonded networks; second, the diverse features of such bonding (dynamics, reversibility, and temperature) potentially enhances the EO material stabilities [16]. As the molecular motions are directly dependent on temperature, an increase in temperature ultimately enhances the molecular motions. But once the temperature approaches the poling temperature, the three-dimensional arrangement engaging chromophores by means of hydrogen bonding vanishes. Now, hydrogen bond will no longer hold the free molecular moment present in chromophores when external voltage is applied. Subsequently, bringing down the temperature to ambient temperature (post poling process) will yet again permit hydrogen bonding in molecular organics, revealing three-dimensional network and eventually constraining chromophore moments, therefore, EO materials with enduring stabilities can be accomplished. Despite of such attractive characteristics, a couple of disadvantages are accompanying this system, such as: solvent compatibilities and the dipole-dipole interactive forces present among chromophores cannot be effectively inhibited.

Main-chain EO polymer

Construction of main-chain polymer system involves the NLO-based organics (chromophores) as one of the monomer and is chemically bonded with respective monomer to form polymeric system. In such system, an increase in chromophore loading density is proportionally inhibiting the macro-phase separation, elsewise limiting chromophore relaxation within the polymer backbone. Therefore, most commonly engineered EO polymeric materials having main chain organics reveal sophisticated orientational stabilities. This system includes polymeric backbones constructed of Polyimide, polyurethane, polyarylether, and polyester etc. [33,34,35,36,37].

Earlier, polyimides being extensively exploited polymers in engineering main-chain polymeric backbones and they acknowledged preeminent glass transition temperatures [38,39,40,41,42,43]. Recent documentation described the temporally stable novel polymers indulging polyimide (P1) and polyurea (PU) along with second-order NLO based organics [44]. These polymers were connected with molecular entity entitled as 2,3-bis (4-aminophenyl)-5,6-dicyanopyrazine (BAPDCP) with measured first-order molecular hyperpolarizability of 123.5 × 10− 30esu. Polymers P1and PU revealed the EO coefficient of 16.5 and 27.7 pm/V at 1064 nm, correspondingly. Furthermore, polyimide based sample was placed for poling, presenting the onset temporal deterioration about 200 °C. Similarly, another successful investigation featured polyimides (Λ-shape PI) based main-chain system with carbazole constructed two dimensional organic (chromophore) and revealed high temporal stability [45]. The engineered 2D polymer displayed fantastic temporal stability at 350 °C with no substantial weight loss. The implemented corona-poling operated at 210 °C while exhibiting a EO coefficient value of 17.2 pm/V. Additionally, the newly developed chromophore (carbazole based chromophore) in the 2D polymeric backbone showed more liability towards poling with respect to the electric field direction while conventional head to tail main-chain polymeric systems were lack of such liability of poling.

Classical literature reported novel EO polymers with polyimide structural backbone [36]. The researchers introduced a sequential self-repetitive strategic reaction which eventually lead to wholly aromatic polyamide architectures. The respective polymers PI1 and PI2 (Fig. 4) delivered an ideal Tg figures of 196 °C and 208 °C respectively, while revealing poor EO coefficient of merely 25 pm/V (for PI2) retaining 92% of the initial EO activity. In 2013, new isolation functional groups were introduced for manufacturing polycarbonate-based (Fig. 5) EO materials [46]. Introducing direct polymerization technique between various chromophore (performing as monomer) and bisphenol as monomer, resulting in EO active polycarbonates. The glass transition temperature of then prepared polymers carrying different chromophore loading densities resonated between 130 and 170 °C, while highest EO coefficients approached 75 pm/V.

Fig. 4
figure 4

Main-chain polymer structures involving polyimide

Fig. 5
figure 5

Structurally Y-type polycarbonate bearing EO active material

Recently, documentation regarding NLO polymers engineered with novel chromophores, facilitating the main-chain polymers synthetically and present good solution stabilities [33]. The new strategy implemented novel chromophore working as monomer bearing carboxylic functionalities at the terminal points, while the counter monomer contained benzene unit with ethyl side chains which are terminally functionalized with hydroxyl groups. The then synthesized polyester polymers (PE-1 PE-2) revealed fantastic thermal stabilities of 305 °C and 223 °C for PE-1 and PE-2 respectively. While, because of the structural resemblance and their corresponding molecular interactions, the Tg analysis delivered almost identical values for PE-1 (113 °C) and PE-2 (108 °C). Moreover, employing corona-poling to these polymer films presented the EO coefficient values of 26.3 pm/V (PE-1) and 35.8 pm/V (PE-2) and insignificant decline occurred in the original value after being backed at 85 °C for over hundreds of hours.

Side-chain EO polymer

Side-chain EO polymers can be accomplished by means of covalently anchored molecular dipolar organics (chromophores) functioning as side chain/substituent to the backbone of host polymer material. Construction of such polymer system is advantageous by means of uniform film deposition which in turn inhibits molecular crystallization along with phase separation as well. Besides, this system predominantly suppresses the relocation of chromophore and challenges governed by chromophore loading density for long term application. Moreover, side chain polymer system retain its degree of freedom which eventually can enhance the poling competency to that of host-guest system. Most commonly used polymers in this system includes, the Vinyl based NLO polymers (polystyrene and polymethyl methacrylate) and NLO polymeric materials having elevated Tg such as, polyurethane, polyimide, polyamide, polyester, polyether, and polyquinoline [47,48,49,50,51,52]. Previously a substantial literature regarding various side-chain NLO polymer categories have been documented [53,54,55,56,57,58,59,60,61,62,63].

The targeted side-chain EO-active polymeric materials can be accomplished by a couple of methodologies i.e. direct polymerization and post-functionalization. Direct polymerization process involved, the synthesis of the respective chromophores functioning as monomers which are followed by copolymerization with their partner monomers. Synthetically, such polymerization generally involved the free radical and esterification reactions. While the post-functionalization methodology in accomplishing EO-active polymer materials involve the attachment of EO organics to the polymer backbone by means of a chemical reaction. The targeted post-functionalization can be realized through Catalyzed esterification, Mitsunobu etherification, the Diels-Alder addition reaction, the Huisgen reaction, the Kneovenagel condensation reaction, and the nucleophilic reaction of isocyanate with hydroxyl groups. The employment of polycarbonates, in particular the amorphous polycarbonate (APC) have been extensively utilized as host polymers for attachment of NLO chromophores because of their attractive feature, such as elevated Tg, decent film processability and respectable optical properties. In 2008, researchers documented a communication regarding NLO polymer the APC (Fig. 6a), utilizing carboxylic acid containing bisphenol performing as monomer followed by appropriate insertion of functionalized organics via esterification [64]. Their polymers bearing high chromophore loading density delivered elevated Tg as high as 202 °C, while the recorded EO coefficient for TCF-based chromophore was merely 38 pm/V (at 1300 nm).

Fig. 6
figure 6

Polymers with side-chain EO chromophores

The glass transition temperatures of other similar polymeric entities such as polyamides and polyquinolines loaded with side-chain chromophores are also elegant approaching as high as 215 °C which are beneficial in long term device stabilities. Earlier, a new synthetic strategy (Stile cross coupling polymerization) was implemented which carried chemically sensitive units [49]. This approach utilized monomers (NLO chromophores) with bromine atoms for coupling reactions of aromatic polyamides (Fig. 6b). The resulting polymers exhibited large r33 value of 35 pm/V at 1300 nm and maintained high temporal stability at 80 °C. Similarly, researchers employed an efficient synthetic procedure for side-chain NLO polyquinolines [50]. Their synthesis involved polycondensation of bis (ketomethylene) monomer with bis-(o-amino ketone) monomers (Fig. 6c). Although, the EO coefficient of this polymer was low but they delivered temporal alignment stability at around 100 °C. Moreover, their methodology proposed tremendous flexibility in selecting the polymeric backbone which is beneficial for tuning the opto-physical characteristics of such polymer materials. In 2017, scientists introduced novel EO polymer comprised of side-chain polyester connected to a chromophore with two comparatively elongated flexible chains (Fig. 7) which are terminally flanked with carboxyl functionalities ensuring mobility of the chromophores concerning host polymer matrix [65]. Three polymers GL-S-1, GL-S-2 and GL-S-3 were prepared which are having identical cores with different chromophore loading. The results confirmed that the glass transition temperatures of these polymers are around 110 °C, while the chromophore loading density was directly proportional to EO coefficient values (29.3 pm/V for GL-S-1, 43.6 pm/V for GL-S-2 and 63.1 pm/V for GL-S-3).

Fig. 7
figure 7

Structure and synthesis of polymer GL-S1

Recently documented EO polymers (Fig. 8a) based on side-chain strategy, sequentially comprised of an adamantyl moiety (with desired loading densities) for enhancing thermal characteristics of the then synthesized polymers. Expectedly, progressive enhancement in loading density of adamantyl proportionally enhanced the Tg of the respected polymers eventually approaching 194 °C (for EO194). Furthermore, the fabricated modulator involving Mach-Zehnder (MZ) interface modulator delivered fantastic thermal resistivity at elevated temperatures (105 °C) approximately up to 2000 h for polymer EO194 [66]. Same research group, optimized aforementioned polymer via molecular engineering which ultimately sharpened the polymeric backbone (Fig. 8b), modified nonlinearity and enhanced its Tg [67]. Additionally, the researchers constructed silicon-polymer hybrid modulator which sustained an ultra-fast single-lane data rates approaching 200 gigabits/second. The authors claimed that the newly constructed ultrahigh speed SPH modulator exhibited resistance to high temperature up to 110 °C, while maintaining high-speed signal fidelity, and guaranteeing high EO activities.

Fig. 8
figure 8

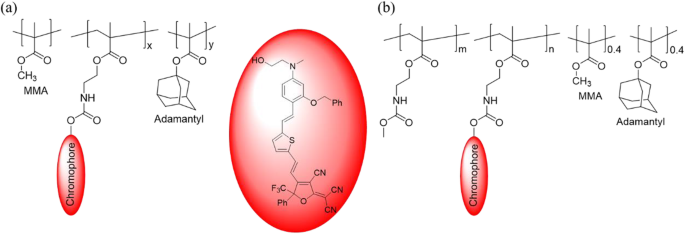

a Chemical structure of the synthesized side-chain EO polymer b Modified chemical structure of the synthesized side-chain EO polymer

Cross-linked systems EO polymer

The cross-linking strategy is currently occupying research hotspot and is advantageously providing better temporal and long term stabilities to the induced EO materials [22]. The NLO molecular organics bearing crosslinking units react by means of chemically attached units to the adjacent polymer backbones and governed a steady 3D polymer network which efficiently inhibit the chromophore relaxation process along with effectively maintained EO characteristics. The cross-linking procedure should to be accomplished under well controlled environment of applied electric field, because the glass transition temperature of polymeric materials upsurges with applied heating or with enhanced illumination time. Since, this system effectively suppress chromophores relaxations while maintaining long term EO coefficient, the system must fulfill the following conditions: a) original structure of the respective chromophore should be retained during cross-linking operation, b) reaction timing is cardinal thus should be controlled (poling before crosslinking), c) the required temperature for the cross-linking reaction should be equivalent to the glass transition temperature, and d) the orientation momentum concerning chromophore must overwhelm the cross-linking speed.

Since, the NLO chromophores display strong absorbance in the short wavelength region, the photo-crosslinking methodologies deliver low efficiencies which could be attributed to photobleaching effect. Limited number of publications are documented which implemented the photo cross-linking systems. However, although one recent example introduced in situ photo cross-linking for engineering of poly (aryl ether ketone) and the functionalized chromophores were terminated with anthracene groups [68]. The authors claimed that their designed reaction strategy could be efficiently accomplished under mild condition and is highly productive for delivering enhanced poling efficiency and temporal stability. The data extracted from the polymers revealed the maximum EO coefficient of 28.5 pm/V, while the depolarization temperature concerning dipole relaxation has been improved to 129 °C (post crosslinking) displaying a 17 °C increasement to the un-cross-linked one. Besides, new methodologies were employed indulging thermal cross-linking system, and commonly used cross-linking as well as curative approaches (for polymer systems) which are given below. For constructing EO polymers via cross-linking strategies, it can be categorized in to three kinds of reactions.

Cross-linking reaction indulging Diels-Alder (D-A) strategy

A competent lattice-hardening technique exploiting the [4 + 2] D-A cycloaddition reaction [3, 69, 70]. This procedure entirely reverses the conventional applied thermal processing procedures regarding cross-linking and is significantly advantageous over the rest of NLO thermosets. The documented sequential cross-linked polymers utilizing D-A addition reaction, eventually obtained cross-linked EO polymers with elevated EO coefficient and enduring stabilities as well [8]. The authors constructed their molecular adducts by introducing the acrylate-functionalized dendritic NLO organics, while anthracene unit (Fig. 9) was introduced to the polymer backbones (P1 and P2) functioning as diene for D-A reaction. Subsequently, poling and cross-linking rewarded molecularly engineered polymers revealed highest EO coefficient of 126 pm/V. The resultant polymers retained 88% of their original EO coefficient even after being exposed to heating at 150 °C. Furthermore, they increased the applied temperature up to 200 °C for a short period of 30 min and the material preserved its initial EO coefficient at 80%. Such facile synthetic routes along with elevated temporal stabilities and high EO activities promotes this system towards promising device applications.

Fig. 9
figure 9

Crosslinking via Diels-Alder addition reaction utilizing acrylates with anthracene

In 2012, researchers investigated the synthesis of polyacrylates with enhanced solubilities and various NLO organics [71]. Their D-A engineered cross-linked EO material included side-chain EO polyester bearing furan as diene for the respective reaction, while bismaleimide (BMI) (Fig. 10) as the cross-linkable moiety. The chromophore FTC-wl was the selected chromophore along with polymer sPAR and varied chromophore loading densities were produced. Their results revealed maximum EO activity of 124 pm/V anticipated for doped (FTC-wl) sPAR-CTCP system while keeping high chromophore density. Exploiting the maleimide-type chromophores to mild synthetic conditions, versatile but quantitative and avoiding catalytic impurities, governed polymers PM-1a, PM-1b, PM-2, and PM-3 by D-A post functionalization methodology. The resulted polymers displayed elevated dielectric strength, outstanding optical value with respectable processability, and were consistent with poling behaviors. The chromophore in polymers PM-1a and PM-1b is anchored to the central amide unit, while the polymers entitled as PM-1b, PM-2, and PM-3 are loaded with 20 wt% of the chromophore concentration. The poled film of polymer PM-2 revealed the best r33-value of around 60 pm/V, while the polymer PM-1b delivered almost half r33 (30 pm/V) value to the former one. The polymer PM-3 film presented a comparatively decent r33-value of 57 pm/V. These respective outcomes were achieved because of the existence of dendritic entities, which eventually enhanced the poling efficiency of the polymers [72].

Fig. 10
figure 10

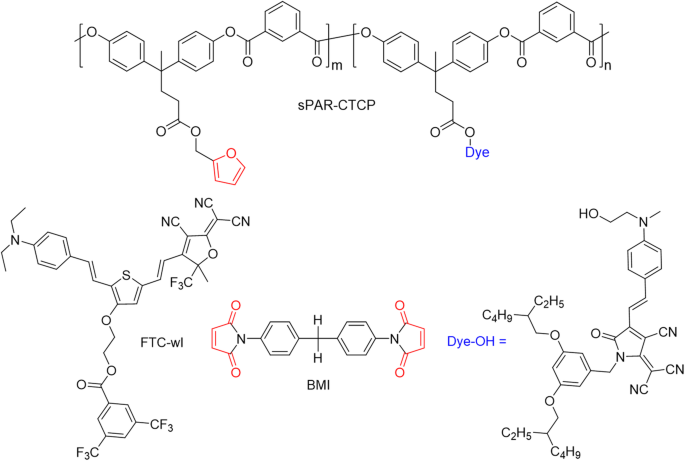

EO polyester system based on Diels-Alder reaction

Cross-linking reaction indulging Huisgen strategies

The Huisgen cross-linking reaction operates via click reaction, delivering efficient conversion of reactants, providing good selectivity and can be performed under mild conditions. Once the poling and cross-linking process is complete, the EO polymeric material with enhanced stabilities can be attained in comparison to non-cross-linked systems. Researchers employed this efficient protocol in the preparation of novel EO polymers based on azide-alkyne 1,3-dipolar cycloaddition [73]. They connected the polymer AJP12 (Fig. 11) bearing an azide substituent with chromophores (EOD1 and EOD2) having different alkynyl groups via in-situ cross-linking reaction. The author also utilized polar media for architectural control and the results revealed that cross-linking could potentially be facilitated in polar media. Furthermore, their poled polymers exhibited enhanced EO activities (up to 147 pm/V) along with outstanding long-term alignment stability, and retained 93% EO coefficient (of initial figure) at temperature of 85 °C over a period of 500 h. Similarly, a research team engineered EO active polymers, introducing chromophores which displayed compatibility towards free radical polymerization [74]. Their co-polymers strategy involved CPO chromophores, ethynyl and azido functional units, exhibited considerable EO coefficients approaching 41 pm/V. Furthermore, such cross-linking strategy can potentially improve polymeric stability bearing optically active chromophores.

Fig. 11
figure 11

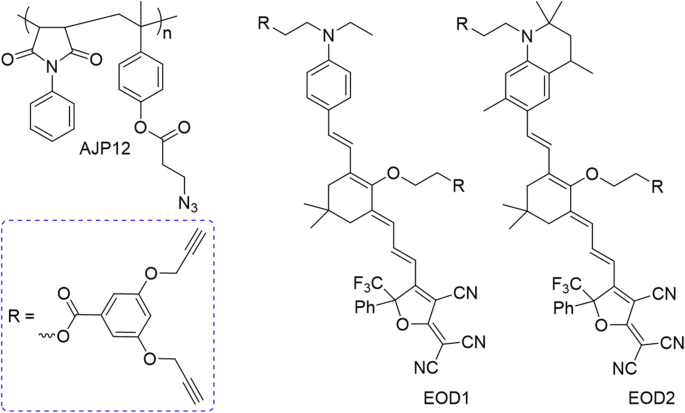

Polymer system (AJP12) with EOD1 and EOD2, crosslinked via Huisgen reaction

Cross-linking reaction indulging hydroxyl and isocyanate groups

In order to increase the extent of interaction involving polymeric backbone and their respective chromophores by means of true chemical bonding, another cross-linking approach towards EO polymer is to react hydroxyl and isocyanate. In 2012, the experts synthesized cross-linkable co-polymers with varied loading of chromophores [75]. Their synthetic route presented PMMA based copolymer system which has a hydroxyl functional unit (Fig. 12) while free radical polymerization was involved. Followed by solution preparation for spin coating, they added a cross-linkable molecular organic bearing a couple of isocyanate functional entities. Once the spin coating was over, it was followed by simultaneous termination of poling and cross-linking procedures. Owing to the reactive nature of hydroxyl and isocyanate groups, the cross-linking methodology could be accomplished in limited time at under mild reaction temperature (140 °C). Besides, through this technique, the functional chromophore loading densities and their respective compatibilities can also be amended. Additionally, their results provided an EO activity of 45.5 pm/V with retained 83% of the original EO coefficient at 80 °C for 450 h. In attaining tremendously rigid and enhanced cross-linked system, chromophores with elevated μβ standards are mandatory. Researchers introduced derivatization based on isophorone-based phenyltetraene chromophore (represented as CLD-5). For enhancing solubility and processibility, the π-conjugated bridge was substituted with hexyl chains, while dihydroxy functionalities were implemented for various cross­linking polyurethane systems. The EO polymer CLD-5/PPIF/BPDM polyurethane delivered higher EO coefficient of 41 pm/V and lower optical loss (2.56 dB cm− 1) at 1300 nm. The polymer revealed higher stability of 133 °C indicating that excessive cross-linking deteriorates electric poling of long chromophores in a cross-linked polymer thin film [76].

Fig. 12
figure 12

Polymeric cross-linking system involving hydroxyl with isocyanate

Conclusions and perspective

We summarized the recent developments in EO polymers and are discussed categorically. All EO polymers loaded with chromophores, which are composed of an electron donor, a conjugate π-bridge and an electron acceptor. Since, individual chromophores have different first order hyperpolarizabilities, the one possessing higher first hyperpolarizability is more conducive and beneficial in obtaining macroscopic electro-optical properties. Besides, other key factors encompasses the polarization, physical and chemical stabilities of the EO material, and the cost-effective synthesis with reproducibility, etc. The development of electro-optic polymers has mainly gone through the following stages: 1. Host-guest system; 2. Side chain type polymer; 3. Main chain type polymer; 4. Cross-linked type polymer. Some of the EO polymer parameters mentioned in the article can be seen in Table 1.

Table 1 The measured parameters of the entitled polymers

A number of documentation exploited the host-guest systems because of the ease of synthetic reproducibility and solving the polarization issue governed from the electrostatic interaction between the chromophores. However, such system appear with flaws such as isolation of chromophores (not attached to the polymer chain) resulting poor stabilities, and compatibility of the host polymer to the respective chromophores. While, the side-chain and main-chain polymer systems, the former enhances material stability while the later extends the chromophore loading density. Advances in cross-linked EO polymers amended the molecular assembly of the chromophores, simultaneously increases the loading density of the chromophore and stability of the material. For the future applications, engineering of new EO polymeric materials, introducing novel device concepts, and high-precision instrument processing will benefit the EO polymers with excellent performance which will be demanded for future application in the optical field. Moreover, ease of synthetic routes, optimization, and reproducibility of the materials in economical means will be considered.
